Water Line PVC Extrusion Line , 16 - 630mm Diameter Plastic Pipe Making Machine

Orzecznictwo
dobra jakość Linia do wytłaczania rur PE na sprzedaż
dobra jakość Linia do wytłaczania rur PE na sprzedaż
Im Online Czat teraz

Water Line PVC Extrusion Line , 16 - 630mm Diameter Plastic Pipe Making Machine

Chiny Water Line PVC Extrusion Line , 16 - 630mm Diameter Plastic Pipe Making Machine dostawca
Water Line PVC Extrusion Line , 16 - 630mm Diameter Plastic Pipe Making Machine dostawca Water Line PVC Extrusion Line , 16 - 630mm Diameter Plastic Pipe Making Machine dostawca Water Line PVC Extrusion Line , 16 - 630mm Diameter Plastic Pipe Making Machine dostawca

Duży Obraz :  Water Line PVC Extrusion Line , 16 - 630mm Diameter Plastic Pipe Making Machine

Szczegóły Produktu:

Place of Origin: ZHANGJIAGANG
Nazwa handlowa: LB
Orzecznictwo: CE ISO
Model Number: LB-16-630A

Zapłata:

Minimum Order Quantity: 1 SET
Cena: USD EUR
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH
Contact Now
Szczegółowy opis produktu
PIPE DIAMETER: 16-630 EXTRUDER'S POWER: 22KW-160KW
CUTTER: PLANETARY CUTTER WATER PIPE DIAMETER: 20-630MM
APPLICATION: WATER PIPE BELLING MACHINE: NEEDED

 PVC WASTED WATER PIPE EXTRUSION MACHINE PIPE WITH DIAMETER 16-630MM


Product Description



PVC pipe making machine / UPVC pipe making machine/UPVC pipe making machine/PVC pipe production line
1. Diameter: 16-800mm
2. Output: 120-800kg/hr
3. Power: 18.5-110kW
4. Production speed: 1.2-12m/min

PVC pipe making machine



Configuration:

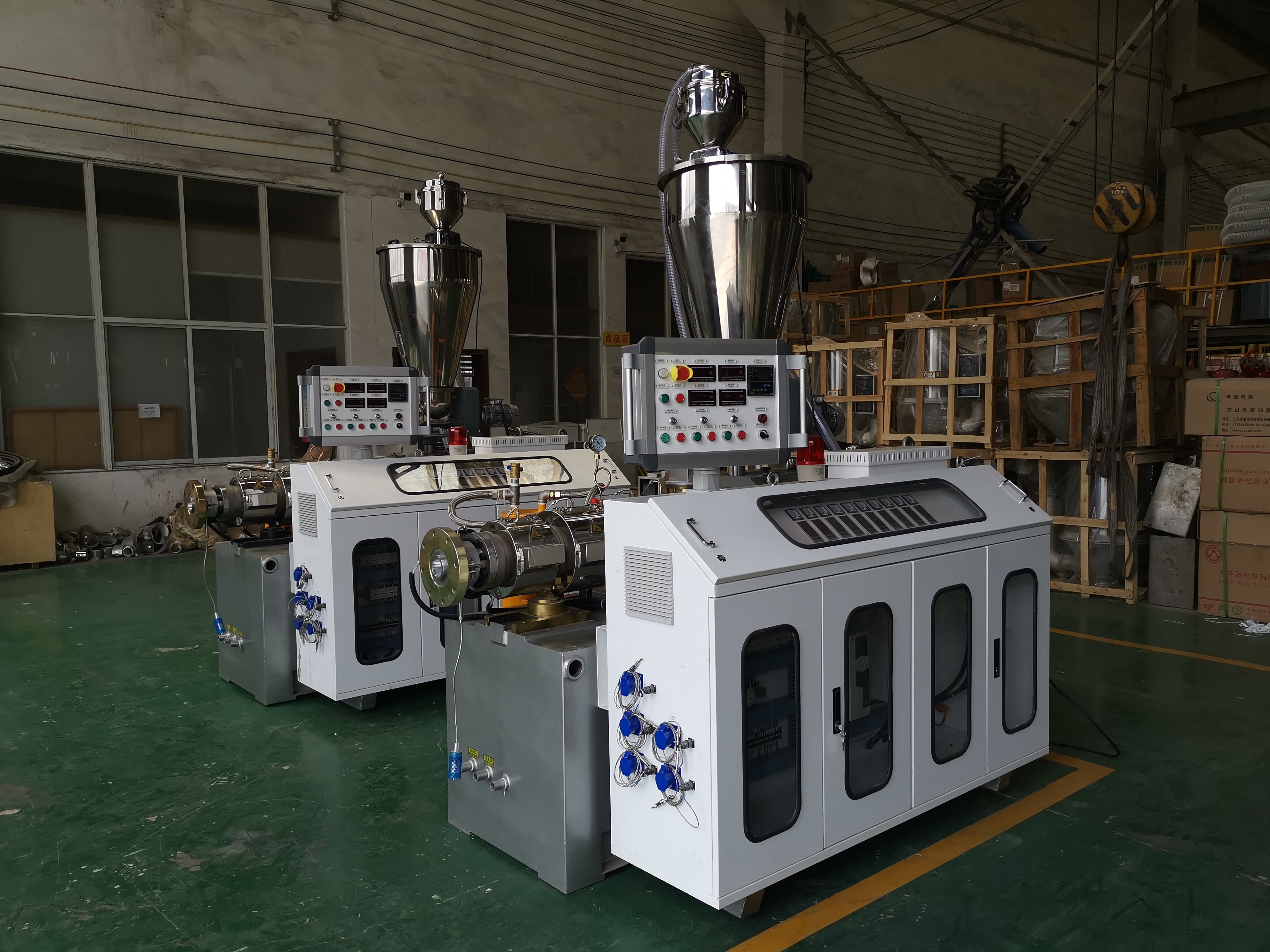

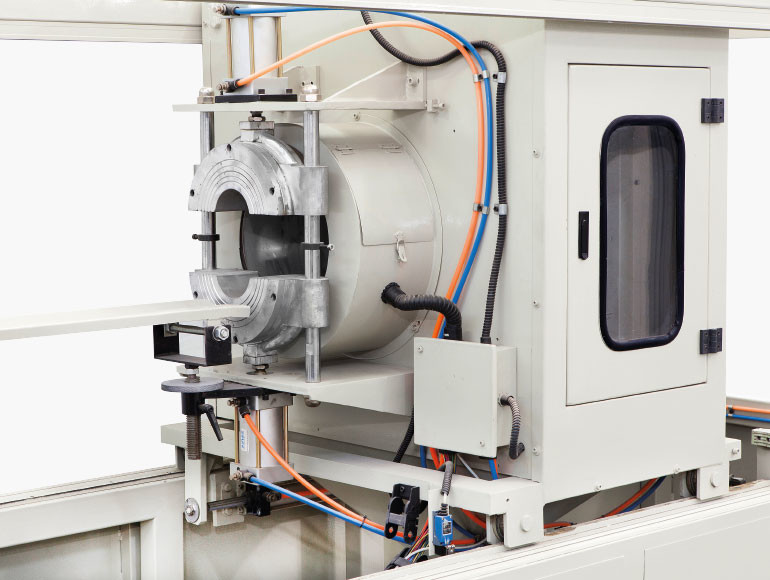

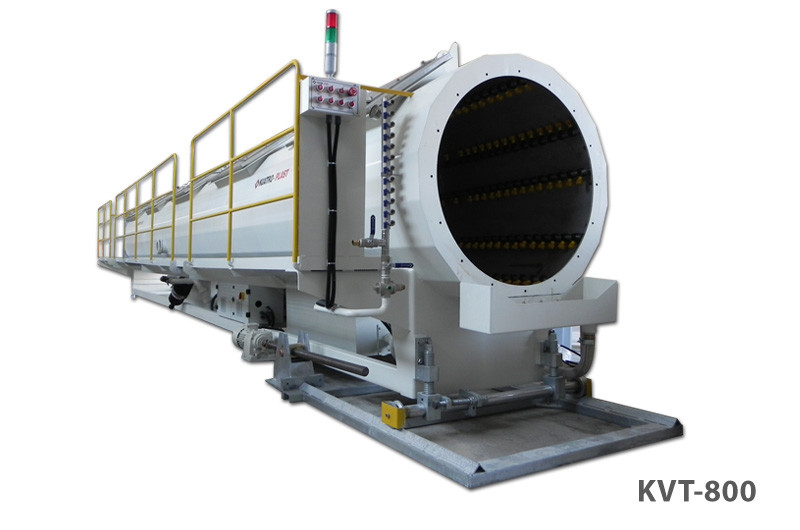

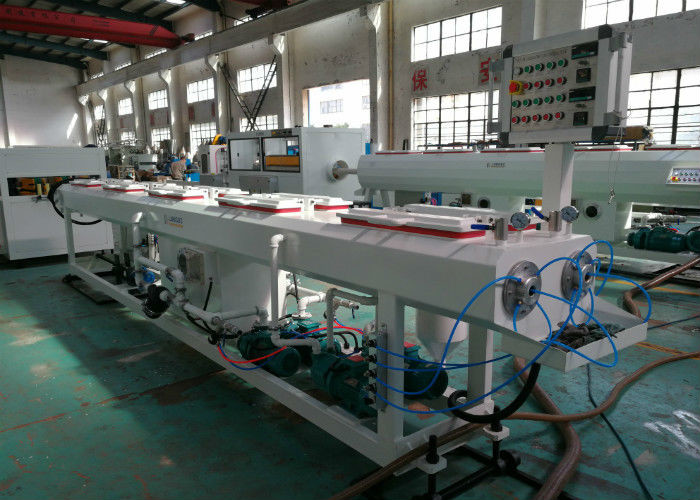

It contains conical twin screw extruder, mould, calibrating tank, cooling tank, haul-off, cutter and stacker.



Application:



It is mainly used to produce PVC water pipe, PVC drainage pipe, PVC electric pipe and so on.



Characteristics of upvc pipe extrusion machine :


1. one die double output, it greatly increase the productivity, meantime, it reduce the cost of machine, power consumption, save space of workshop

2. Speed of extruding, haul off are controlled by variable frequency inverter, stepless adjusting speed and save power consumption

3. Water cooling tank are made of high qulity stainless steel, no rusty, longer lifetime.

4. Temperature controlled by intelligent temperature controller, high precision, automatic control, save labor and easy to operate.





SPECIFICATIONS:


MODEL PIPE DIAMETER(MM)

EXTRUDER MODEL


MOTOR POWER (KW)
LB-63A 16-63 SJSZ51/105 22 AC
LB-63B 16-63(DOUBLE PIPE) SJSZ65/132 37 AC
LB-160 50-160 SJSZ65/132 37 AC
LB-250A 63-250 SJSZ65/132 37 AC
LB-250B 63-250 SJSZ80/156 55 AC
LB-315 110-315 SJSZ80/156 55 AC
LB-630 315-630 SJSZ92/188 110 DC



Water Line PVC Extrusion Line , 16 - 630mm Diameter Plastic Pipe Making Machine
