Panel Product Line PVC Mixer Machine With Flexible Spiral Conveyors

Orzecznictwo
dobra jakość Linia do wytłaczania rur PE na sprzedaż
dobra jakość Linia do wytłaczania rur PE na sprzedaż
Im Online Czat teraz

Panel Product Line PVC Mixer Machine With Flexible Spiral Conveyors

Chiny Panel Product Line PVC Mixer Machine With Flexible Spiral Conveyors dostawca
Panel Product Line PVC Mixer Machine With Flexible Spiral Conveyors dostawca Panel Product Line PVC Mixer Machine With Flexible Spiral Conveyors dostawca Panel Product Line PVC Mixer Machine With Flexible Spiral Conveyors dostawca Panel Product Line PVC Mixer Machine With Flexible Spiral Conveyors dostawca

Duży Obraz :  Panel Product Line PVC Mixer Machine With Flexible Spiral Conveyors

Szczegóły Produktu:

Place of Origin: ZHANGJIAGANG
Nazwa handlowa: LB
Orzecznictwo: CE, ISO
Model Number: LB-800/2500H

Zapłata:

Minimum Order Quantity: 1 SET
Cena: USD, EUR
Packaging Details: STANDARD PACKAGE
Delivery Time: 60 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 10 SET PER MONTH
Contact Now
Szczegółowy opis produktu
VESSEL VOLUME: 800L / 2500L MIXER TYPE: VERTICAL
NOTOR POWER: 83/110/22KW DISCHARGING: AUTO PNEUMATIC
TEMPERATURE: AOTOMATIC CONTROL FEEDER: FLEXIBLE CONVEYOR

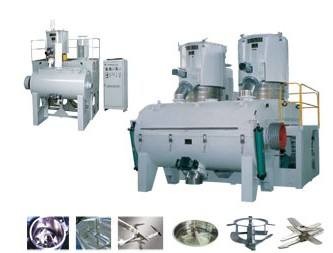

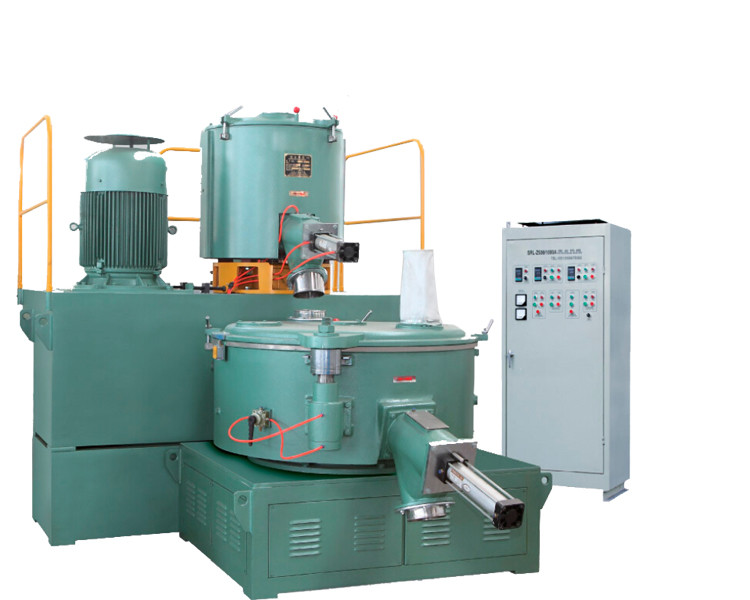

HEATER-COOLER MIXERS WITH THE FLEXIBLE SPIRAL CONVEYORS FOR PVC PANEL LINES





COMPONENTS AND FEATURES:



The flexible spiral conveyers, provide an economical means to convey powder or granular material. These conveyors use a stainless steel spiral or steel, enclosed within plastic tubing
and they are suitable for transferring material from feed hopper to discharge point. According to the size and capacity. Screw conveyors are available in a variety of types.

Advantages
Easy to clean – Dust free – Economic



PVC panels mixers with horizontal type heater –cooler mixers combination are an essential and integral part of high performance processing units.

Ideal appliance for fast preparation of mixers in general and PVC compounds in particular, mixer models available in configuration depending of the capacity and materials designing for each specific production requirement.

  • Universal usable
  • Available with different drive options
  • High throughput rates with optimal mixing quality
  • Low operation costs
  • Compact design



USAGE AREAS OF MIXER:



  • PVC Window & Door profiles
  • PVC water pipes
  • PVC cables
  • PVC cable channels
  • PVC Curtain Rails
  • PVC Hoses
  • PVC Water Isolation Membranes

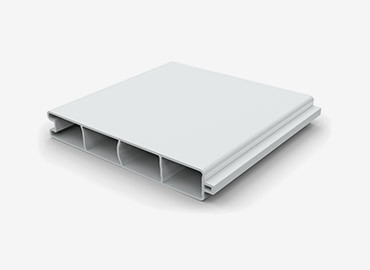

  • PVC Panels
  • PVC Shoe Soles
  • PVC Floor Covers
  • PVC Shrink Film
  • PVC Tent



Optional Accessories:



  • The production will be with soft starter if frequency inverter is not ordered with the machine.
  • The production will be with Microcontroller if PLC is not ordered with the machine.



Mixture quantity:



  • Including all of additives and raw material density, which will be mixed, are calculated as 0.5kg/lt and mixture temperature 120 degrees centigrade. Depend of the auxiliary raw material, the loading system can be different.
  • Changeable quantity is the event of the plant temperature conditions.



SPECIFICATIONS::



Model

Mixing Container Volume (lt)

(Heater /Cooler)

Motor Power (kw)

(Heater/Cooler)

Discharging
LB-300/600 300/600 40/55/11AC Pneumatic
LB-500/1000 500/1000 55/75/15 AC Pneumatic
LB-500/1600 500/1600 55/75/15 AC Pneumatic
LB-800/2000 800/2000 83/110/22 AC Pneumatic
LB-800/2500 800/2500 83/110/22 AC Pneumatic
LB-1000/3000 1000/3000 83/110/30 AC Pneumatic

Panel Product Line PVC Mixer Machine With Flexible Spiral Conveyors



Panel Product Line PVC Mixer Machine With Flexible Spiral Conveyors

Panel Product Line PVC Mixer Machine With Flexible Spiral Conveyors
Panel Product Line PVC Mixer Machine With Flexible Spiral Conveyors
