Four Strands PVC Pipe Extrusion Line Electrical Conduit 55 / 37KW Motor Power

Chiny Four Strands PVC Pipe Extrusion Line Electrical Conduit 55 / 37KW Motor Power dostawca
Four Strands PVC Pipe Extrusion Line Electrical Conduit 55 / 37KW Motor Power dostawca Four Strands PVC Pipe Extrusion Line Electrical Conduit 55 / 37KW Motor Power dostawca Four Strands PVC Pipe Extrusion Line Electrical Conduit 55 / 37KW Motor Power dostawca

Duży Obraz :  Four Strands PVC Pipe Extrusion Line Electrical Conduit 55 / 37KW Motor Power

Szczegóły Produktu:

Place of Origin: ZHANGJIAGANG
Nazwa handlowa: LB
Orzecznictwo: CE ISO
Model Number: LB-32E

Zapłata:

Minimum Order Quantity: 1 SET
Cena: USD EUR
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH
Contact Now
Szczegółowy opis produktu
PIPE DIAMETER: 16-32MM APPLICATION: ELECTRICAL WIRE CONDUIT or WATER PIPE
EXTRUDER MODEL: SJSZ80/156 or SJSZ63/132 MOTOR POWER: 55KW or 37KW
CAPACITY: 250KG/H or 350KG/HR PIPE COLOUR: WHITE, ORANGE, BLANK

PVC FOUR STRANDS ELECTRICAL CONDUIT PIPE EXTRUSION LINES DIAMETER 16-32MM



HDPE / PP/PVC Double Wall Corrugated Pipe Extrusion Line



1. This kind of corrugated pipe is mainly used for underground water drainage system.
2. It is fully computer/instrument controlled, automatic production line. It features high and stable output capacity, and highly automatic production range is Φ90~Φ200mm.
3. Different types of extruders can be selected to match with the production line according to the material properties.
4. The forming system of this line consists of mould and corrugator. The mould blocks can be easily changed and they may have air or water cooling system. The belling process can also be realized on line. High precision cutting can be guaranteed by rotation type cutting machine ..

HDPE / PP/PVC Double Wall Corrugated Pipe Extrusion Line



The complete extrusion consists of following items:

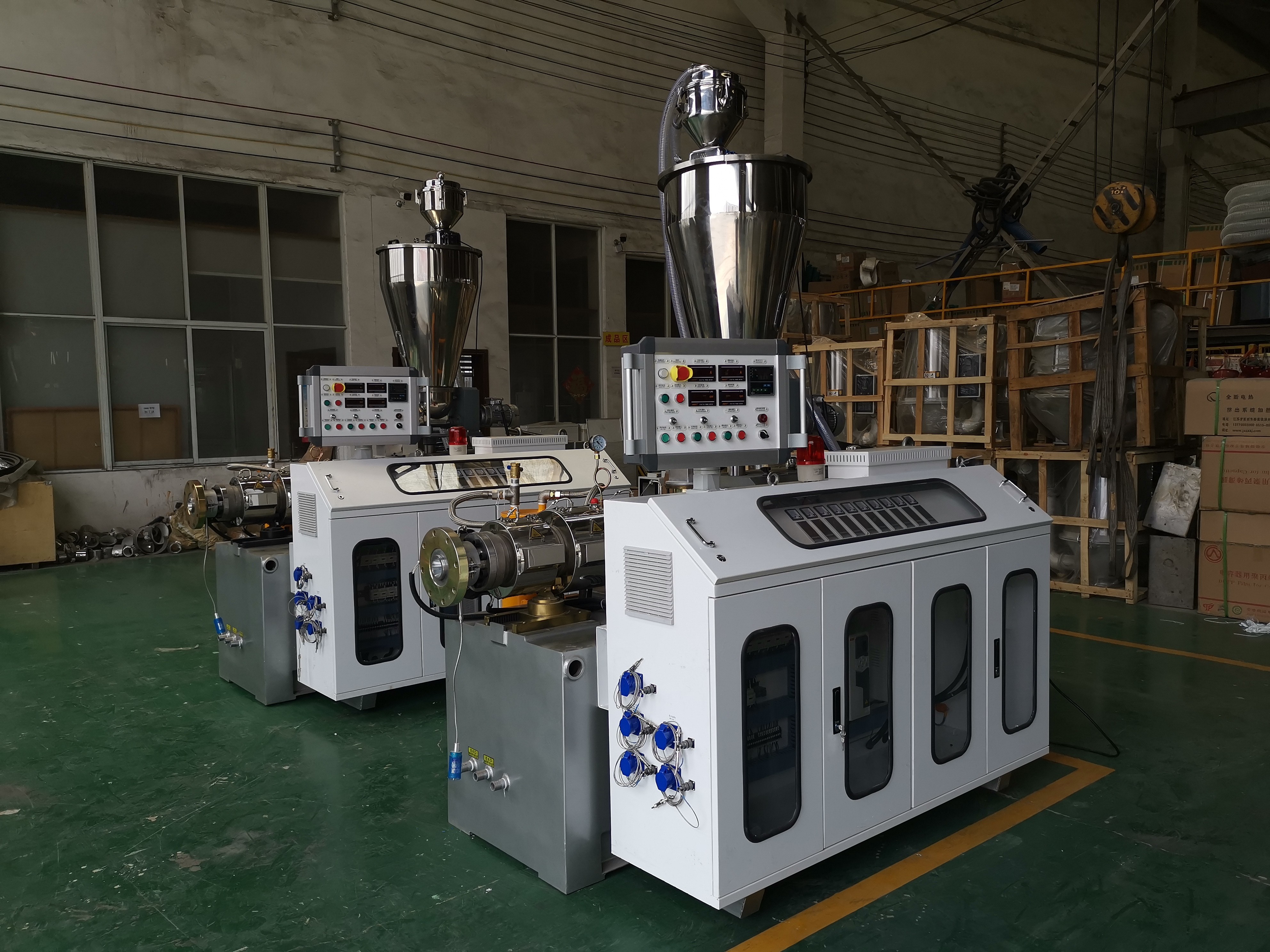

  • Conical Twin Screw Extruder:

It is used for melting and stirring plastic material. We adapts special screw and barrel type that provide perfect mixing and homogenous.

We use special gear box for the Extruder which has axial bearings. Transfer the motor to the screw. For minimizing electricity consumption, we use the famous brand of driving motor of “SIEMENS” on our Extruder. Automation system designed with PLC and touch panel controller can be selected.

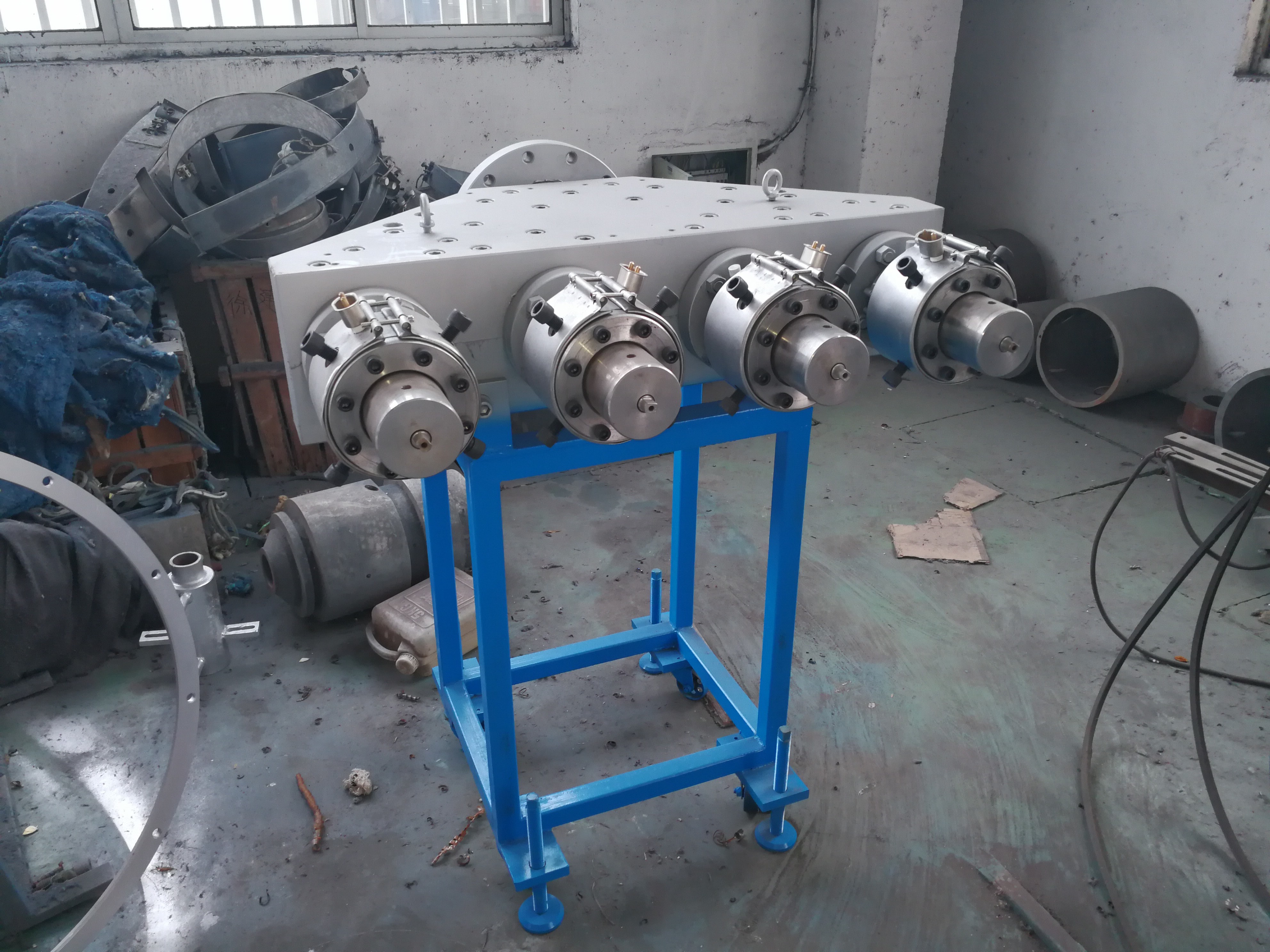

  • FOUR Strands Die-Head:

The die head and die system is manufactured with melt flow channels designed to ensure excellent performance in whole range of pipe diameter. According to the material characteristic of pipe, the designing of the die head and die system changes and even at high extrusion pressure. It gives perfect outcome.

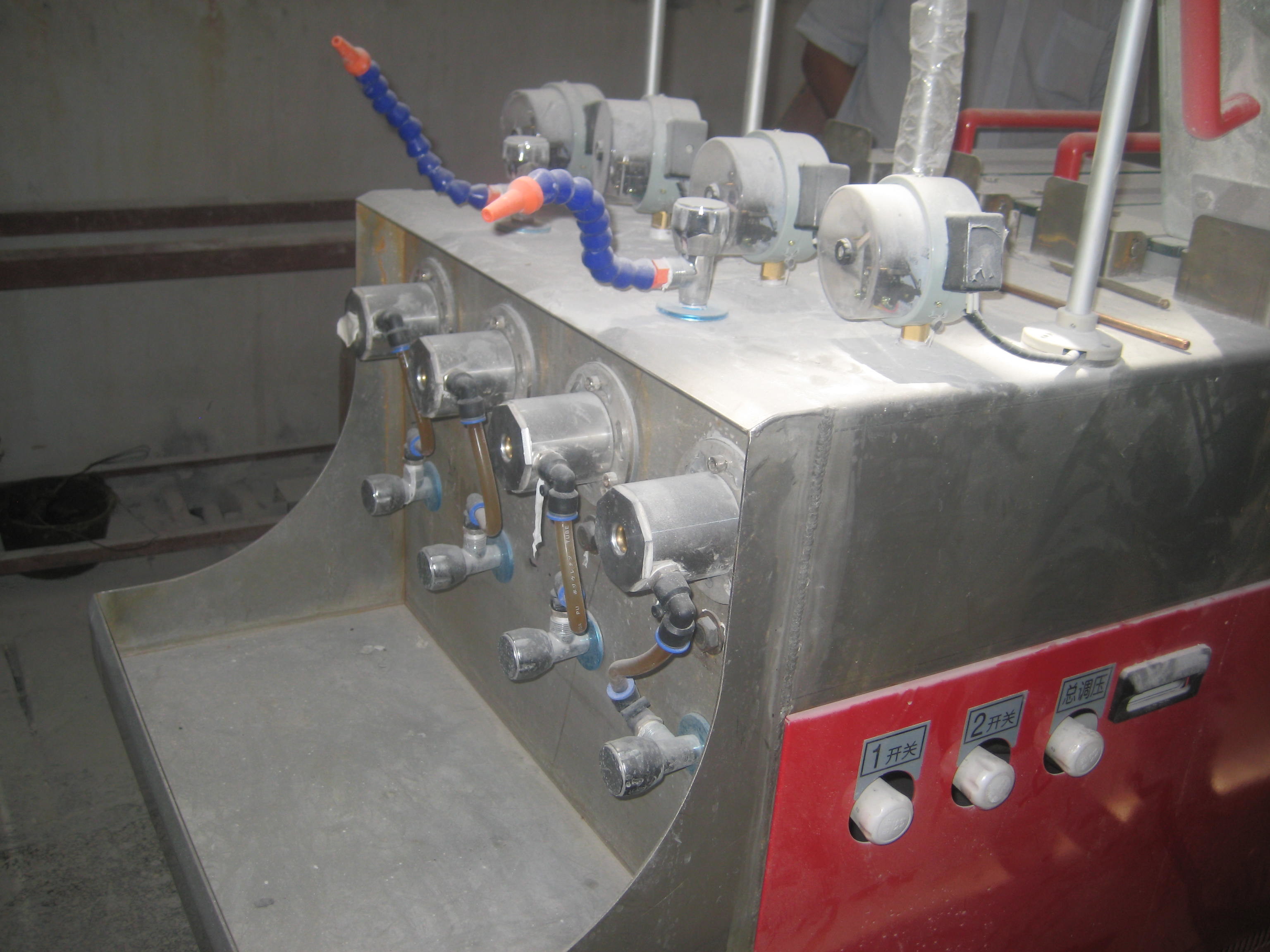

  • FOUR Strand Vacuum Tank:

The Vacuum Tanks are manufactured with stainless steel.

Our nozzles designing for maximum cooling performance. Cooled water sprinkles to hot plastic pipe outside face from the nozzles.

With high power water pump, cooled water can reach to pipe completely.

Our vacuum tank’s pressure can be adjusted, so vacuum pressure can be fixed according to pipe requirement. We sealing gasket for every lid on the vacuum tank. This stops vacuum leakage and minimizing energy consumption.

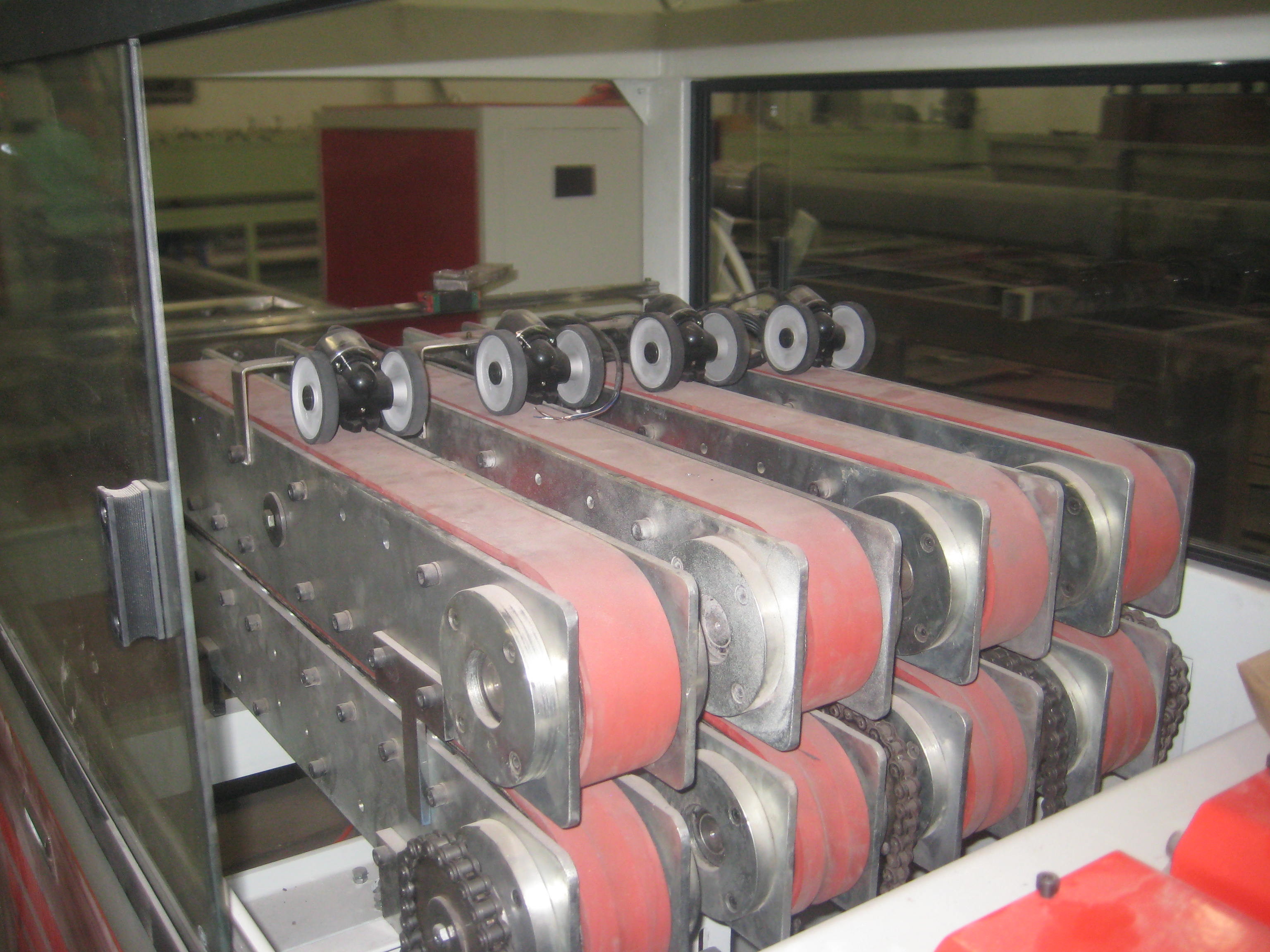

  • FOUR Strands Belt Type Haul-offs:

The belt haul-off is used for high speed extrusion of small pipe. it is free from vibration and ensure the excellent control even at high speed.

With the material we have used in our haul-offs, we have very good adhesion to the pipe and ensure slip prevented.

The needed speed for setting of belts can be changed with electrical inverter. Different line speeds are adjusted by using control panel easily.

  • FOUR Strands Saw Cutter:

Automatic cutting unit, that is ideal solution for small and medium size pipes. It works synchronic with belt haul-off.

Pipe length to be cut is easily adjusted via the touch screen.

Pipe length measure by encode so desired length can cut precisely.

  • FOUR Strands Tipping Table:
  • It operates on pneumatic cylinder.

SPECIFICATIONS:

MODEL PIPE DIAMETER (MM) EXTRUDER MODEL MOTOR POWER (KW)
LB-32 16-32 (FOUR PIPE) SJSZ65/132 37 AC
LB-32 16-32 (FOUR PIPE) SJSZ80/156 55 AC


Four Strands PVC Pipe Extrusion Line Electrical Conduit 55 / 37KW Motor PowerFour Strands PVC Pipe Extrusion Line Electrical Conduit 55 / 37KW Motor Power
