High Speed Plastic Agglomerator Machine , 95KW Plastic Recycling Extruder Machine

Chiny High Speed Plastic Agglomerator Machine , 95KW Plastic Recycling Extruder Machine dostawca
High Speed Plastic Agglomerator Machine , 95KW Plastic Recycling Extruder Machine dostawca High Speed Plastic Agglomerator Machine , 95KW Plastic Recycling Extruder Machine dostawca High Speed Plastic Agglomerator Machine , 95KW Plastic Recycling Extruder Machine dostawca

Duży Obraz :  High Speed Plastic Agglomerator Machine , 95KW Plastic Recycling Extruder Machine

Szczegóły Produktu:

Place of Origin: ZHANGJIAGANG
Nazwa handlowa: LB
Orzecznictwo: CE, ISO
Model Number: LB-300

Zapłata:

Minimum Order Quantity: 1 SET
Cena: USD, EUR
Packaging Details: STANDARD PACKAGE
Delivery Time: 60 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 10 SETS PER MONTH
Contact Now
Szczegółowy opis produktu
RAW MATERIAL: PP/PE RIGID & FILM WASTES CAPACITY: 300KG/H
OPERATION: AUTOMATIC TOTAL POWER: 95KW
CRUSHING WAY: AGGLOMERATION MACHINE DRYING WATER: CENTRIFUGES

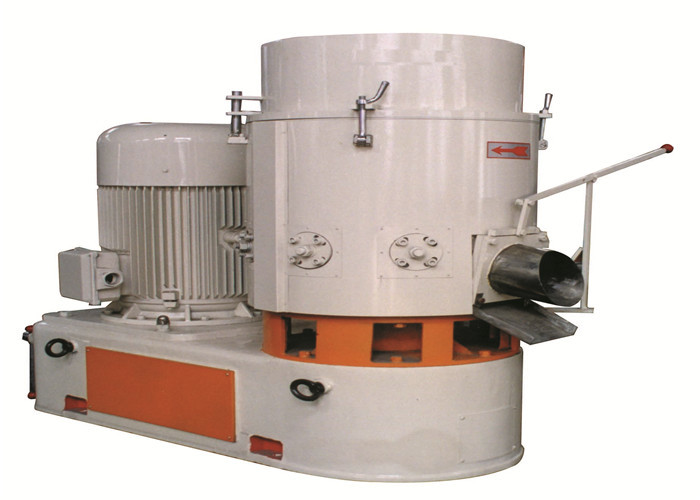

AGGLOMERATION MACHINE (DENSIFIER) USED FOR PP/PE RIGID AND FILM WASHING LINES



Plastic recycling is the processing of making re-useable plastic raw material from plastic wastes. The process starts with sorting of the mixed plastics. Clean plastics are crushed and granulated. Wasted plastics coming from landfills should be crushed, washed, and dried before granulating line.



AGGLOMERATION MACHINE (DENSIFIER) USED FOR PP/PE RIGID AND FILM WASHING LINES are used for separating the plastics from contaminants. Efficiency of washing line directly affects the operation granulating line. An efficient washing line increase quality of granules and capacity of granulating line. Washing lines consist of Conveyor, Granulator, Sin-Float Tanks, Horizontal Centrifuges, Film Dewatering Machine and vertical Centrifuges in order.

Rigid and film washing lines are used for recycling Polyethylene (LLDPE, LDPE,HDPE) and Polypropylene (PP) scraps plastics in rigid or film form. Varity of scrap plastics and can be recycled on the line is maximized with ability of recycling film and rigid forms one the same line.



Agglomeration machine are used for drying washed and dewatered plastics to make them dry and ready for extrusion. Material is dried by frication occurred between rotating and fixed blades. They can also be used for size reduction and densification of clean plastics before extrusion.



The volume of agglomeration container of 300-800 liters are available according to capacity. They can made of SUS304 stainless steel.

Improving housing design allows easy bearing and belt change. Power transfer is realistic under safety cover.



Blades are made of SKD11 material and hardened by heat treatment. The finished material discharging is opened pneumatically.

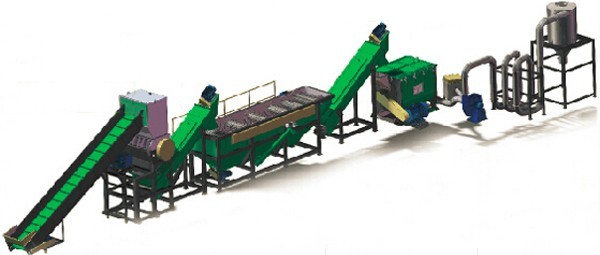

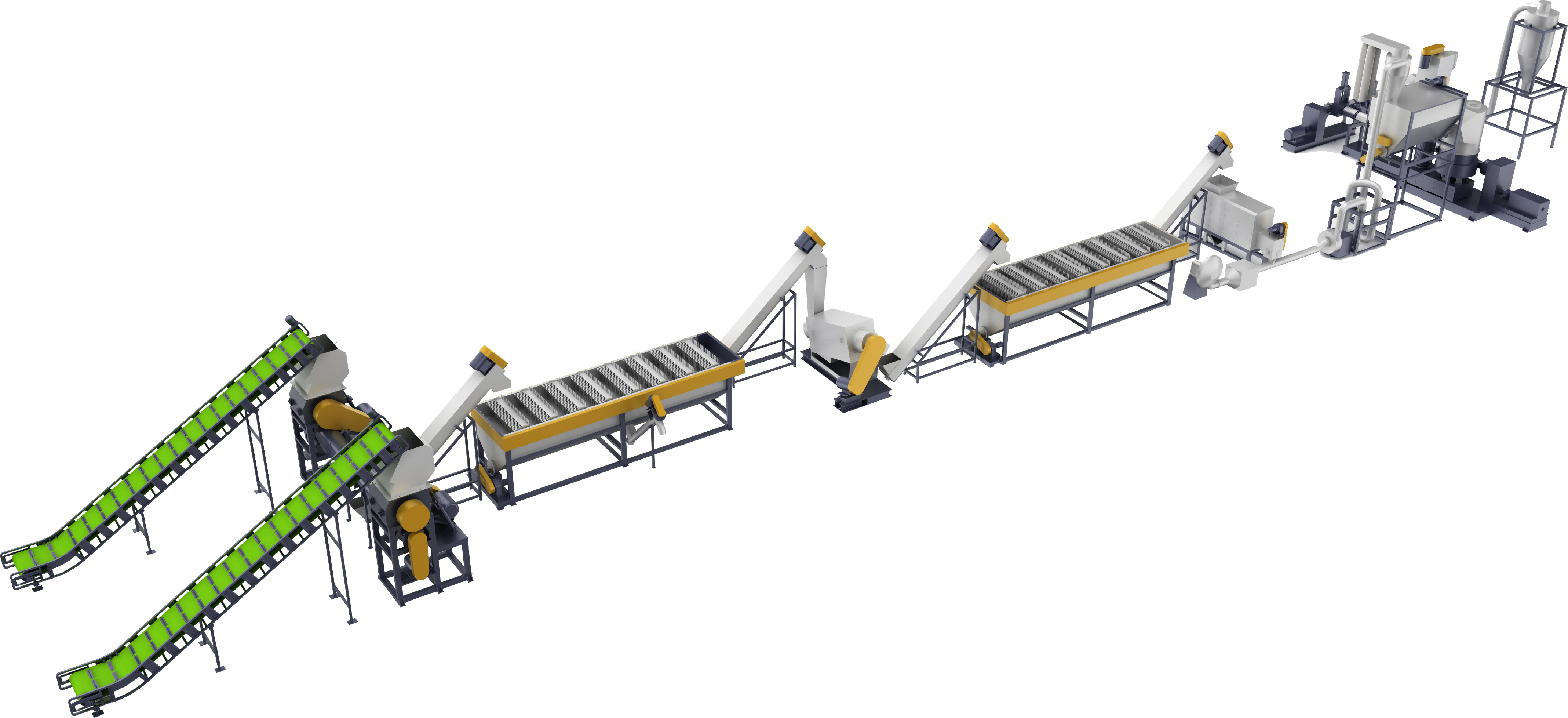

The complete crushing, washing and drying line for wasted PP, PE consist of:

  • Belt conveyor
  • Horizontal centrifuge: It can applied to maximum cleaning with high centrifuges.
  • Screw conveyor
  • Plastic washing units sink (float tank)
  • Film dewatering machine

The processing procedure of the complete washing line consists of:



Conveying – Crushing - Floating washer with cold water - Agitating washer with hot water - Floating washer with cold water - Centrifugal drying/Squeezing drying – Collection.

  • Wasted plastics can be crushed, washed, dried and collected into silo.
  • High efficiency and performance.
  • Less power consumption and operator attendance.

APPLICATIONS:

  • Applicable material: PP, HDPE, LDPE, LLDPE,, etc..
  • Materials shape: woven bag, printed films, agricultural film, raffia and rigid scraps.

PRODUCTION CAPACITY:

  • The production capacity can be 300kg/hr, 500kg/hr,1000kg/hr.
  • NOTE: Depending on material shape, some units involved in complete line will be changed and available.
