|Warranty:||1 Year||RAW MATERIAL:||PVC Powder|
|Product Type:||wpc and plastic profile||Weight:||15T|
PLASTIC PVC PANEL PROFILE EXTRUDER/EXTRUSION LINE/MAKING MACHINE/MACHINERY
General Description of PLASTIC PROFILE PRODUCTION LINE/PLASTIC PVC PROFILE EXTRUDER/EXTRUDING LINE/EXTRUSION MACHINERY/MAKING MACHINERY

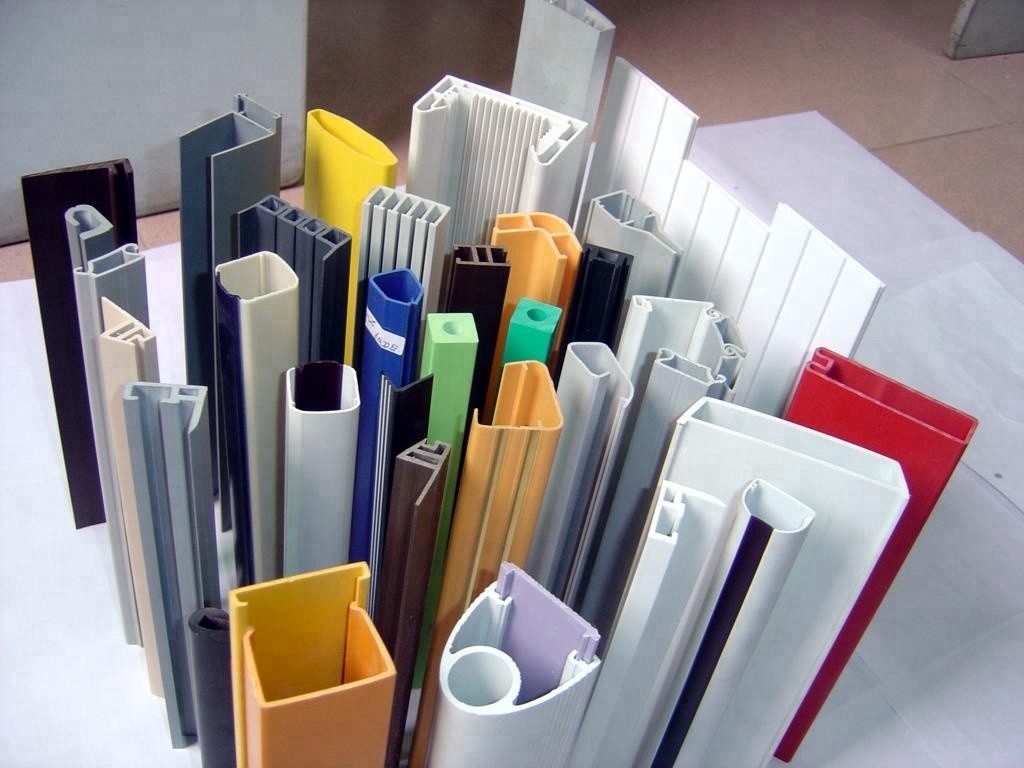

1. Plastic profile production line is using PVC material and it is applied to produce PVC window door frame profile,PVC ceiling panel profile,PVC cable trunking profile by changing different mould.

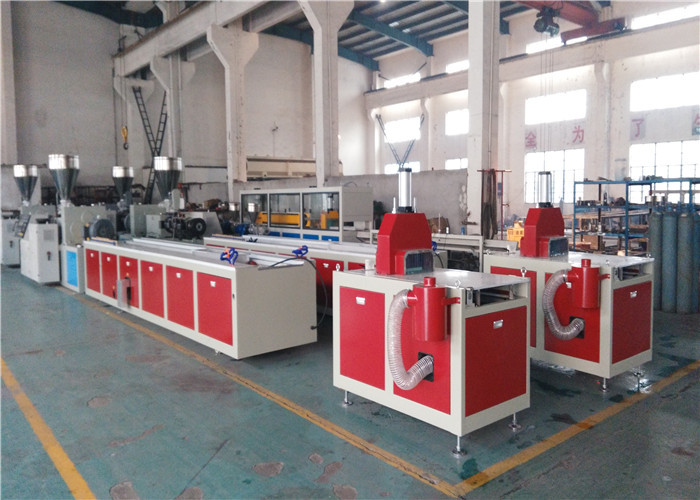

2.This production is composed of conical twin-screw extruder,mould,vacuum calibration table, haul-off, cutter and stacker.
Production Flow of PLASTIC PROFILE PRODUCTION LINE/PLASTIC PVC PROFILE EXTRUDER/EXTRUDING LINE/EXTRUSION MACHINERY/MAKING MACHINERY
PVC powder + additives → Mixer → Screw feeder → Extruder → Mould → Vacuum forming table→ Haul-off machine→ Cutting machine → Stacker
Main Technical Parameter of PLASTIC PROFILE PRODUCTION LINE/PLASTIC PVC PROFILE EXTRUDER/EXTRUDING LINE/EXTRUSION MACHINERY/MAKING MACHINERY
|Product max size (mm)||120x50mm||180x50 mm||240x100 mm||300x120 mm||550x120 mm|
Main Machine List of PLASTIC PROFILE PRODUCTION LINE/PLASTIC PVC PROFILE EXTRUDER/EXTRUDING LINE/EXTRUSION MACHINERY/MAKING MACHINERY
SJSZ series conical twin screw extruder
(Equipped with automatic feeding unit)
|2||Profile Extrusion Mould||1 set|
|3||Vacuum calibration table||1 set|
|4||Hauling-off machine||1 set|

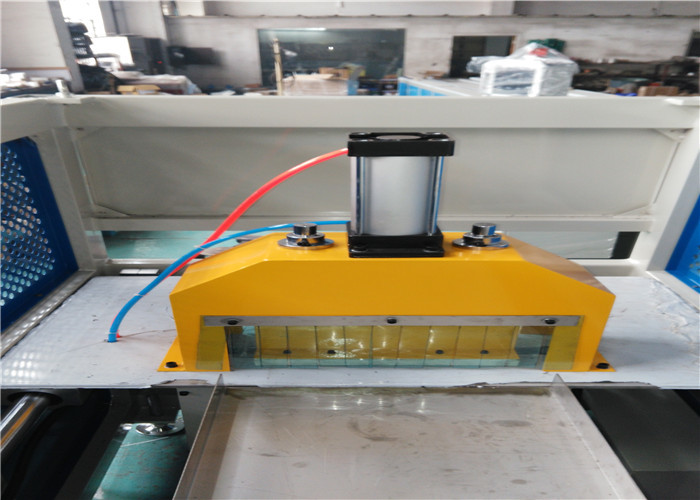

|5||Cutting machine||1 set|
|Optional Auxiliary machines|
|1||SHRL series material mixing machine||1 set|
|2||Crushing machine||1 set|
|3||Milling machine||1 set|

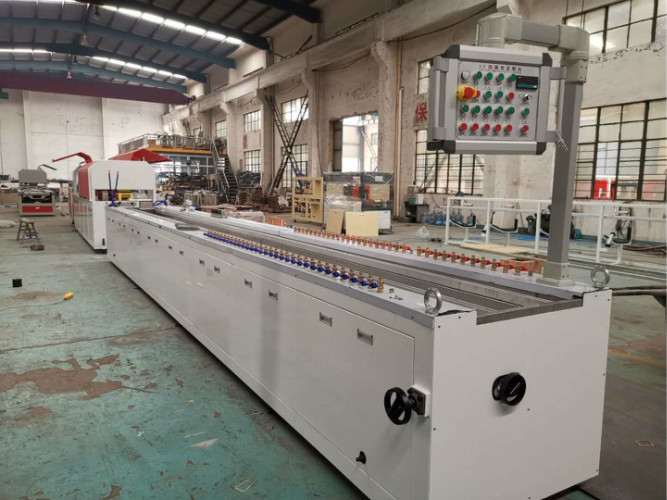

We offer a wide range of calibration tables, providing an optimal and tailor-made solution for every need and application.
Motor-driven height and side movement
Motor-driven longitudinal movement
Manuel tilting movement
|All parts that are in contact with water is made of stainless steel|
Low maintenance cost
Table length from 4,5 to 14 mt
|Vacuum pumps can be added upon request|
Focusing on the energy saving system, Lima Extrusion provides LESS (Lima Energy Saving System) to benefit vacuum energy savings up to 80%.
Vacuum energy savings up to 80%
Vacuum pumps are driven by individual frequency
Inverters in order to use them according to the real need
Low noise level
Closed circuit to save as much water as possible during the extrusion process
Table length from 4,5 to 14 mt
Vacuum pumps can be added upon request
1. Before order: We will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.
2. During order: company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers’ requirements and provides detail order list and matching manufacturer for reference for customer.
After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer’s locale in time when we provide service for client again.
3. After order: we will offer 12months after sales service freely, but our service will be life-long. if some parts are broken, we will send them by express, air or ship as soon as we can.
