UPVC / PVC Profile Extrusion Line For Door / Window 220V / 380V Input

Chiny UPVC / PVC Profile Extrusion Line For Door / Window 220V / 380V Input dostawca
UPVC / PVC Profile Extrusion Line For Door / Window 220V / 380V Input dostawca UPVC / PVC Profile Extrusion Line For Door / Window 220V / 380V Input dostawca

Duży Obraz :  UPVC / PVC Profile Extrusion Line For Door / Window 220V / 380V Input

Szczegóły Produktu:

Place of Origin: ZHANGJIAGANG
Nazwa handlowa: LB
Orzecznictwo: CE,ISO
Model Number: LB

Zapłata:

Minimum Order Quantity: 1 SET
Cena: USD,EUR
Packaging Details: STANDARD PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH
Contact Now
Szczegółowy opis produktu
EXTRUDER MODEL: Double-screw Power(W): 70kw
Voltage: 220V/380V RAW MATERIAL: PVC
Product Type: wpc and plastic profile Weight: 5500kg

pvc profile extrusion line for door and window, PVC profile production line, upvc windows production line







Features Specifications:

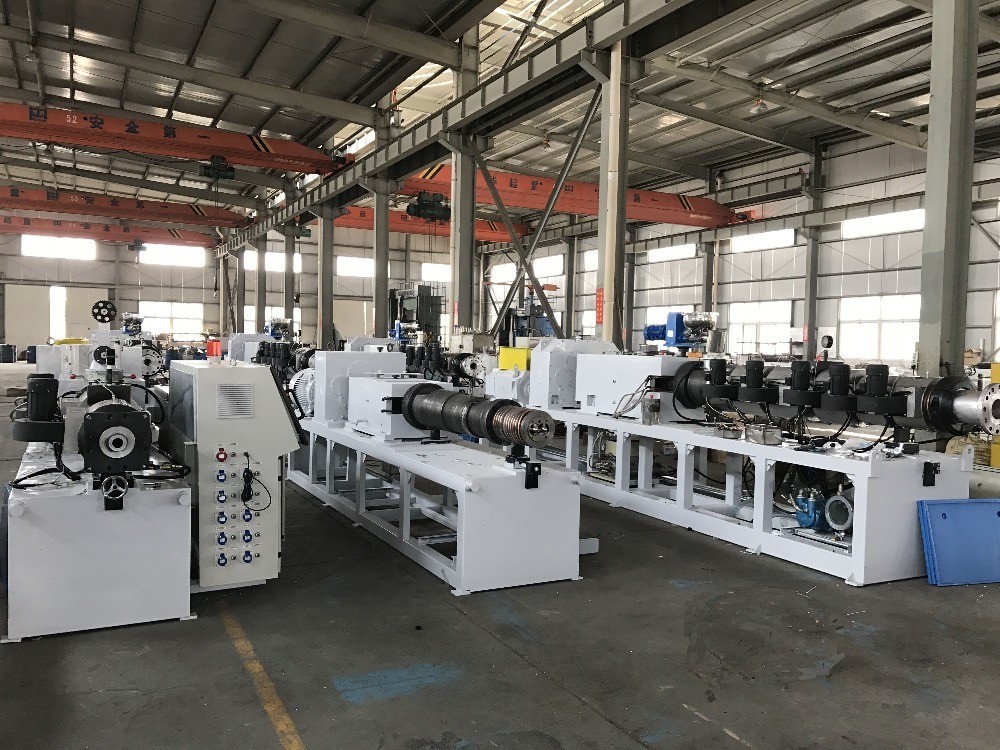

1. Model SJZ series conical twin screw extruder is a kind of special equipment for extruding PVC compound. With different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, bar material and granulation.



2. The conical twin screws have applied oil cooling system. Barrel is cooled by special wind cooling system.



3. The conical twin screw extruder system has applied special computer control. According to customers requirements, most reasonable structure of conical twin screw can be made so as to achieve best plasticity performance and material quality.



4. The conical twin screw is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.



5. The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged. It can bear larger extruding pressure.



6. The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1degree.





Drawing:



UPVC / PVC Profile Extrusion Line For Door / Window 220V / 380V Input



Features

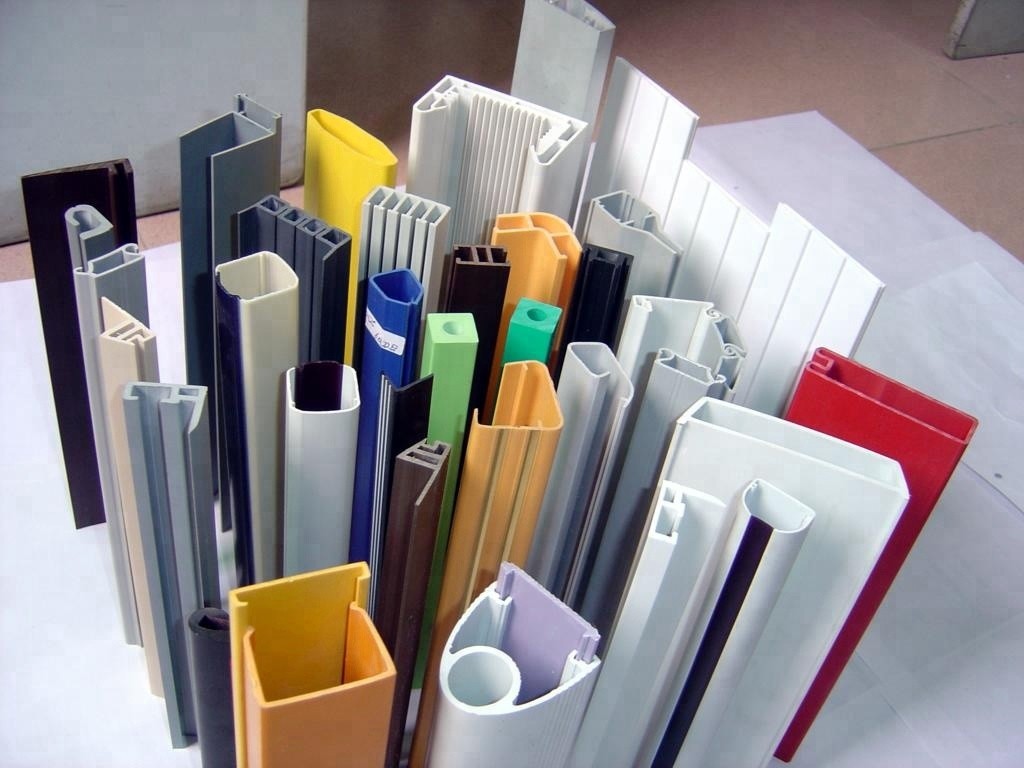

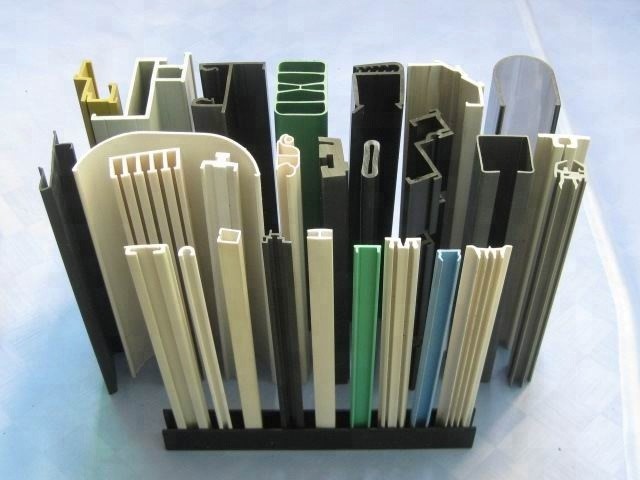

This series production line is designed for extrusion of PVC plastic fence’s profile and crosssection

cable pipes,aluminum-plastic composite profiles and etc.PVC profiles are widely used in the building industry,home and office

decoration.

Properties and Advantages: This line features stable plastIcization, high output,low sheering force,long life service and other

advantages. The calibration unit’s pump and haul off unit’s reducer are famous brand products. After simple changing of the die

and screw, it also can produce the foam profiles.





All SJZ Series Conical Twin-Screw Extruder Technical Parameter:



Model SJZ-51 SJZ-55 SJZ-65 SJZ-80 SJZ-92
Screw Dia.(mm) 51/105 55/110 65/132 80/156 92/188
Max. Rotating speed(rpm) 40 38 38 37 36
Main Motor(kw) 18.5 22 37 55 90
Capacity(kg/h) 80~100 100~150 150~250 250~380 380~700
Center height(mm) 1050 1050 1050 1050 1100
Net Weight(kg) 3000 3500 4000 5500 8000
L*W*H 3.6*1.1*2.1 3.6*1.1*1.2 4.2*1.5*2.4 4.7*1.5*2.4 6*1.6*2.5

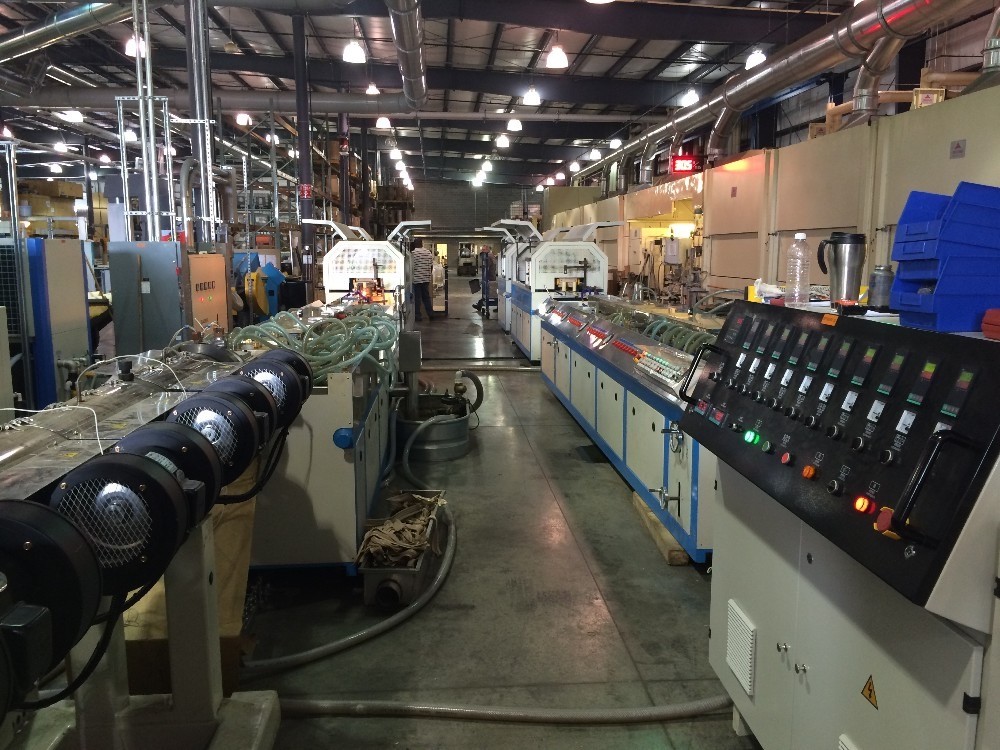

PVC profile extrusion line List:



Name Quantity
Automatic loader 1 set
SJZ51, SJZ65,SJSZ80, SJSZ92 conical twin screw extruder 1 set
Mould and calibrating 1 set
Vacuum calibrating table 1 set
Haul off machine 1 set
Cutting machine 1 set
stacker 1 set
Heating Transferring Machine 1 set
