Szczegóły Produktu:
|
| Condition: | New | Plastic Processed: | PVC |
|---|---|---|---|
| Screw Design:: | Double-screw | Voltage: | 380V 92/188 PVC skinning foam board extrusion line |
| type: | Foaming Machin | name: | PVC Foam Board Extrusion Line |
| High Light: | pvc foam board production line,pvc foam board making machine |
||

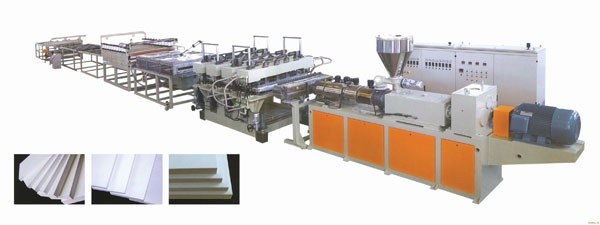

PVC Free Foam Board Extrusion Machine/Production Line/Making machine
Working flow
SJZ Series Conical Twin Screw Extruder→ Die mould → Vacuum Calibration Table → QYQ series Haul-offs and Cutting Machine Unite →DF series Stacker → Control cabinet
(Note: Other Auxiliary Machine, such as crusher, mixer, will be provided according to client's requirements)
Main technical parameter of PVC profile making machine/ PVC profile production line/ PVC profile extrusion line
| Model | SJZ-180 | SJZ-240 | SJZ-300 | SJZ-350 | SJZ-400 | SJZ-600 | SJZ-800 | SJZ-1000 |
|
Max. width of products (mm) |
180 | 240 | 300 | 350 | 400 | 600 | 800 | 1000 |
| Main extruder | SJZ51/105 | SJZ65/132 | SJZ65/132 | SJZ65/132 | SJZ80/156 | SJZ80/156 | SJZ80/156 | SJZ92/188 |
| Extrusion capacity(kg/h) | 150 | 250 | 250 | 250 | 350 | 400 | 400 | 600 |
| Main motor power (kw) | 18.5 | 37 | 37 | 37 | 55 | 55 | 55 | 110 |
Application:
Plastic PVC free foaming board extrusion line's plate has such characteristic as sound separation, sound adsorption, heat separation,keep worming, etc. Plastic PVC free foaming board extrusion line's material is incombustible, it is safe for use. Plastic PVC free foaming board extrusion line's products
have property of moisture proof, mildew proof, water resistance, its vibration
resistant effect is good. Plastic PVC free foaming board extrusion line's products have property of weathering proof, its
luster may remain forever, it is not easy to be ageing.
Plastic PVC free foaming board extrusion line's product is light storage
& transport, construction are rather convenient. Plastic PVC free foaming board extrusion line's product can be work with
normal tools for wooden material. Drilling, sawing, nail, planing, bonding, can be
conducted like wooden material. It is suitable for thermal shaping, thermal bending
and fold processing. It can be welded, it can also be bonded with other PVC
material. The surface of this product is smooth, it can be printed.
PVC free foaming board extrusion line
1.High capacity
2. Easy control
3. Good quality of machine
4. High quality
