3 - 25mm Thickness Foam Manufacturing Machine , 110kw Power PVC Making Machine

Chiny 3 - 25mm Thickness Foam Manufacturing Machine , 110kw Power PVC Making Machine dostawca
3 - 25mm Thickness Foam Manufacturing Machine , 110kw Power PVC Making Machine dostawca 3 - 25mm Thickness Foam Manufacturing Machine , 110kw Power PVC Making Machine dostawca

Duży Obraz :  3 - 25mm Thickness Foam Manufacturing Machine , 110kw Power PVC Making Machine

Szczegóły Produktu:

Place of Origin: ZHANGJIAGANG
Nazwa handlowa: LB
Orzecznictwo: CE ISO
Model Number: LB

Zapłata:

Minimum Order Quantity: 1 SET
Cena: USD EUR
Packaging Details: NORMAL PACKAGE
Delivery Time: 30 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH
Contact Now
Szczegółowy opis produktu
Condition: New Usual sheet width: 915mm, 1220mm
Screw Design:: Double-screw Max.capacity: 400kg/h
Weight: 4-5ton Power(W): 110kw

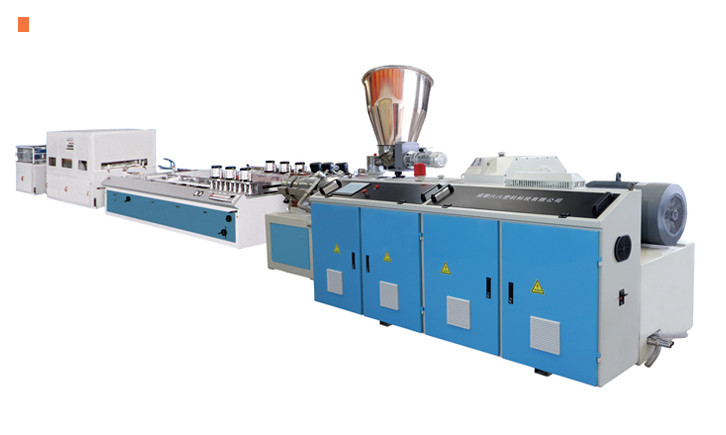

Special Design 3mm-25mm Thickness extrusion line PVC foam board production line

Product Description



PVC Foam Board, Decorative Board Production Line

PVC Decorative Sheet Production Line

PVC decorative board machine





Product Usage



1. Vinyl flooring

2. ceiling

3. wall board

4. advertisement panel

5. carving

6. furniture

Pattern: marble, carpet, stones, natural scenery, stereo design, etc, customized pattern.

Function and features: sound insulation, soft, easy to clean, comfortable feet feeling, personalized color and design.

Thickness: 3mm-25mm

Co-extrusion layer: 0.5-1.0mm



Equipment list :



1 Automatic weigh and loading system
2 Hot/cooling mixer SRL500/1000
3 Mixing material storehouse 4tons
4 Spring type of loader 700Kg/hr
5 Twin screw extruder SJZ80/156
6 Twin screw extruder SJZ51/105

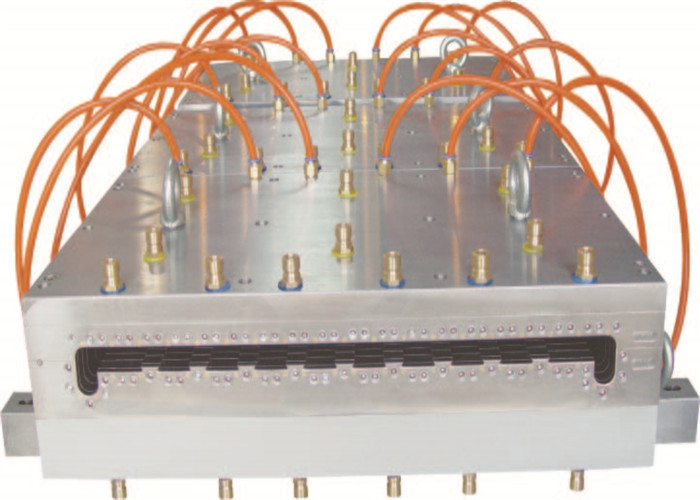

7 T-die and calibrating system 1220mm, 915mm
8 PUR glue coating system   optional
9 16 roller haul off unit
10 Automatic cutting with dust suciton
11 Tipping stacker





Usual Products Sizes:



1. Usual sheet width: 915mm, 1220mm

2. Usual sheet thickness: 3mm-25mm

3. length will be common 2440mm, exporting 2200mm for container loading



1. Well designed well made high quality extruder with special use helical gear reducer and high efficiency converter motors, make high speed extrusion, conical double screw for PVC material;

2. Special screw structure, high shear stress and low temperature, ensure high quality plasticization;

3. High precise T-type die head, indepedent oil temperature control chromed 3-roller calender, uniform speed and high traction force NBR roller haul-off machine help making uniform thickness PVC;

4. Whole line with high degree of automation, easy to operate;

5. High quality steel materials, strict producing process make high quality line;

6. New advanced energy saving technology, lowered energy consumption;

7. It can make different design with on line PUR coating and lamination system, it is our advantage.



Specification of PVC foam board



Main Dimension L: 2200 W: 1220mm T: 6-12mm
L: 2440 W: 600mm T: 6-12mm
L:1200 W: 1200mm T: 6-12mm
L: 600 W: 600mm T: 6-12mm
Specification 1) surface color Wood, cloth, marble
2) Top layer PVC film
3) Material PVC foam
4) Acc Lightgage steel joist or glue
5) Lacquer UV
6) Surface Effect Smooth,embossed, shinning or matt etc.
7) Gloss Matt 30±5%, Semi Gloss 50±5%, High Gloss 70±5%
8) Production Line PUR hot lamination
9) Joint 4-side T&G with micro bevel or square edge

Distinctive

Feature

♦ Damp-proof and water-proof

♦ Good heat insulation and noise insualation

♦ More stable, energy-saving and healthy

♦ Rot-proof and long life

♦ Natural and environment friendly

♦ small heavy

Consumer

Benefits

♦ good health for family

♦ long life and easy to exchange

♦ wonderful color

Installation

♦ Installation: glue or lightgage steel joist

♦ Precision cutting without edge broken



Specifications


1. High Strength and long life
2. light and good insulation for heat and noise
3. Various designs
4. Easy for installation



Advantage


1. Good heat insulation and noise insulation, energy save
2. Fireproof, waterproof, environmental friendly
3. Easy setting and cleaning
4. Environmentally friendly and stable longevity
5. High strength and small density, very suitable for ceiling and wall decoration.
6. Easy installation, attractive design. Low cost, competitive price
