380v WPC Profile Extrusion Line Heat / Shock Resistance High Product

Chiny 380v WPC Profile Extrusion Line Heat / Shock Resistance High Product dostawca
380v WPC Profile Extrusion Line Heat / Shock Resistance High Product dostawca 380v WPC Profile Extrusion Line Heat / Shock Resistance High Product dostawca

Duży Obraz :  380v WPC Profile Extrusion Line Heat / Shock Resistance High Product

Szczegóły Produktu:

Place of Origin: ZHANGJIAGANG
Nazwa handlowa: LB
Orzecznictwo: CE,ISO
Model Number: LB-300W

Zapłata:

Minimum Order Quantity: 1 SET
Cena: USD,EUR
Packaging Details: STANDARD PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH
Contact Now
Szczegółowy opis produktu
Condition: New Model Number: SJSZ-65/132
MOTOR POWER: 220KW RAW MATERIAL: WPC
Screw Design: Double-screw Voltage: 380V

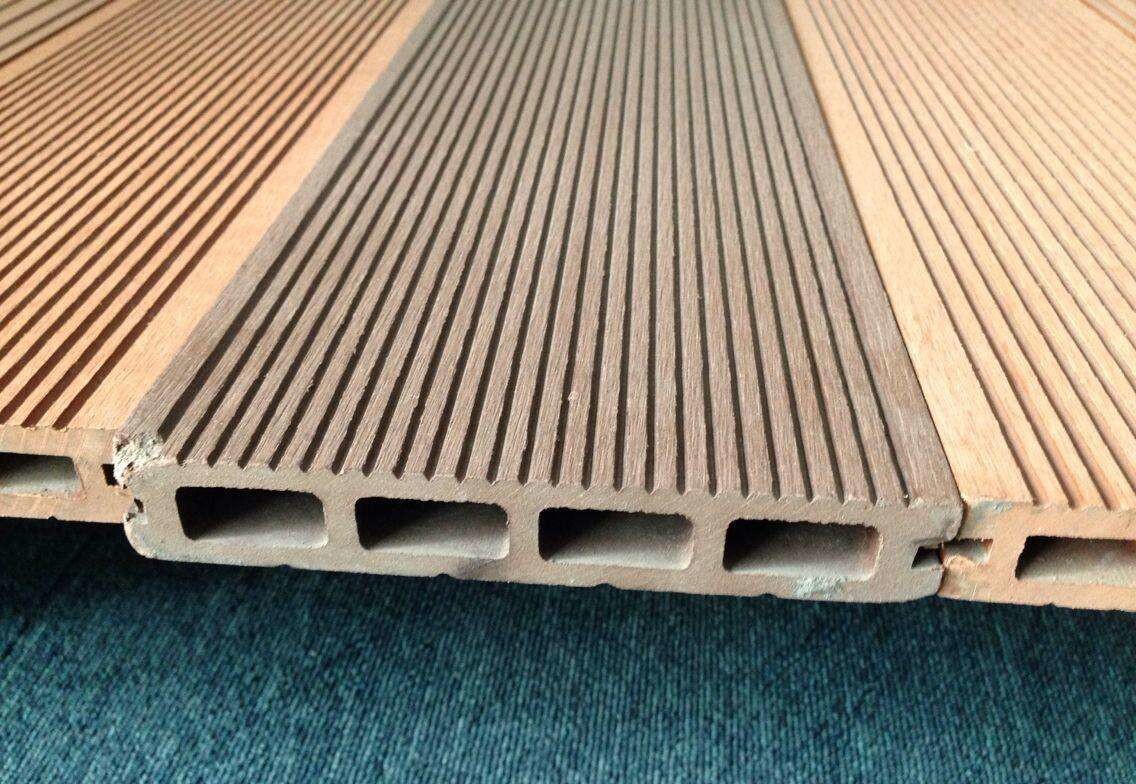

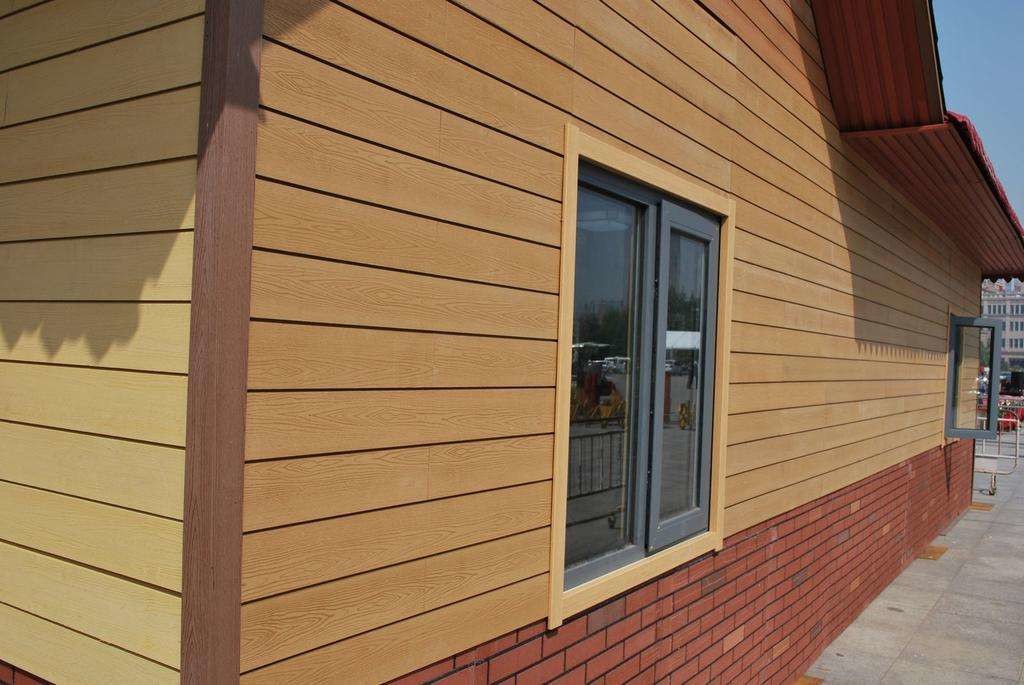

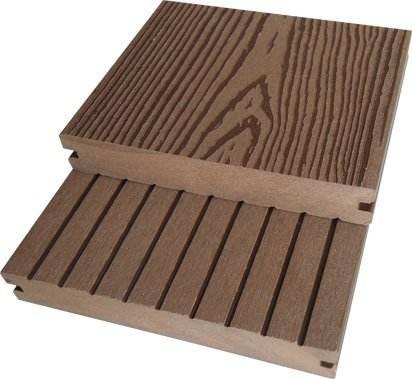

WPC outside decoration floor profile extrusion line / WPC extrusion line



description



The extrusion line adopts special designed barrel and screw, mould and working crafts to produce wood plastic composite products, simplified as WPC products. The extruder is of two steps mixing extruding or make the wood and plastic into pellets first, then use extruder to process; power and space saving, high capacity, stable extruding presser; the pre-heating loader is installed on top of the extruder, it can exhaust the moist remains in the wood power to make sure the extruding section of extruder is full, and guarantee a better plasticization result.

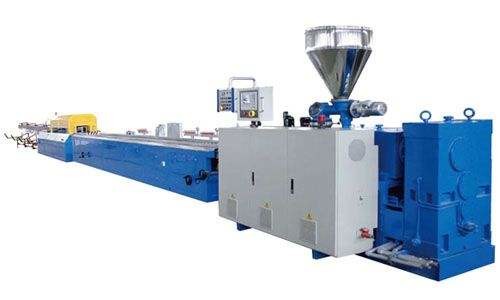

Consist of KFYwood plastic composite extruder extrusion making production manufacturing machine line



1) Extruder

2) Die mould

3) Vacuum calibration table

4) Haul-off machine

5) Cut-off machine

6) Stacker

7) Granulating line

8) Crusher

9) Miller

10) Sanding Machine

11) Embossing machine





Advantages:



1.Using special designed screw and barrel for extruder.

2.Extruder stand-alone or two mixed directly extrusion,second extrusion after granules, save power and space.

3.With high yield,stable extrusion pressure.

4.Screw design shear force is small,easy to cut teh wood fiber material.

5.Screw and barrel using inlay and spray corrosion alloy, greatly extend the service life.



The optimal designed screw is extruder



Item SJSZ-55/110 SJSZ 65/132 SJSZ 80/156 SJSZ 92/188
Screw Diameters(mm) 55mm/110mm 65mm/132mm 80mm/156mm 92mm/188mm
L/D Ratio 22:1 22:1/25:1 22:1/25:1 22:1/25:1
Output(Kg/h) 80-120mm 160-200 250-350 400-500
Main Driving Power(kw) 22 37 55 110
Heating Powder(Kw) 4 zones,20Kw 4 zones, 24Kw 5 zones, 38Kw 6 zones, 54Kw





380v WPC Profile Extrusion Line Heat / Shock Resistance High Product
