Professional WPC Profile Extrusion Line High Performance Low Noise

Chiny Professional WPC Profile Extrusion Line High Performance Low Noise dostawca
Professional WPC Profile Extrusion Line High Performance Low Noise dostawca Professional WPC Profile Extrusion Line High Performance Low Noise dostawca

Duży Obraz :  Professional WPC Profile Extrusion Line High Performance Low Noise

Szczegóły Produktu:

Place of Origin: ZHANGJIAGANG
Nazwa handlowa: LB
Orzecznictwo: CE,ISO
Model Number: LB

Zapłata:

Minimum Order Quantity: 1 SET
Cena: USD,EUR
Packaging Details: STANDARD PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH
Contact Now
Szczegółowy opis produktu
Condition: New Model Number: SJSZ-65/132
Dimension(L*W*H): 20*2.5*2.5m RAW MATERIAL: WPC
Screw Design: Double-screw Width: 200,240,300,400mm

PP / PE /PVC Wood plastic WPC profile production line / PVC extrusion machine



Introduction:

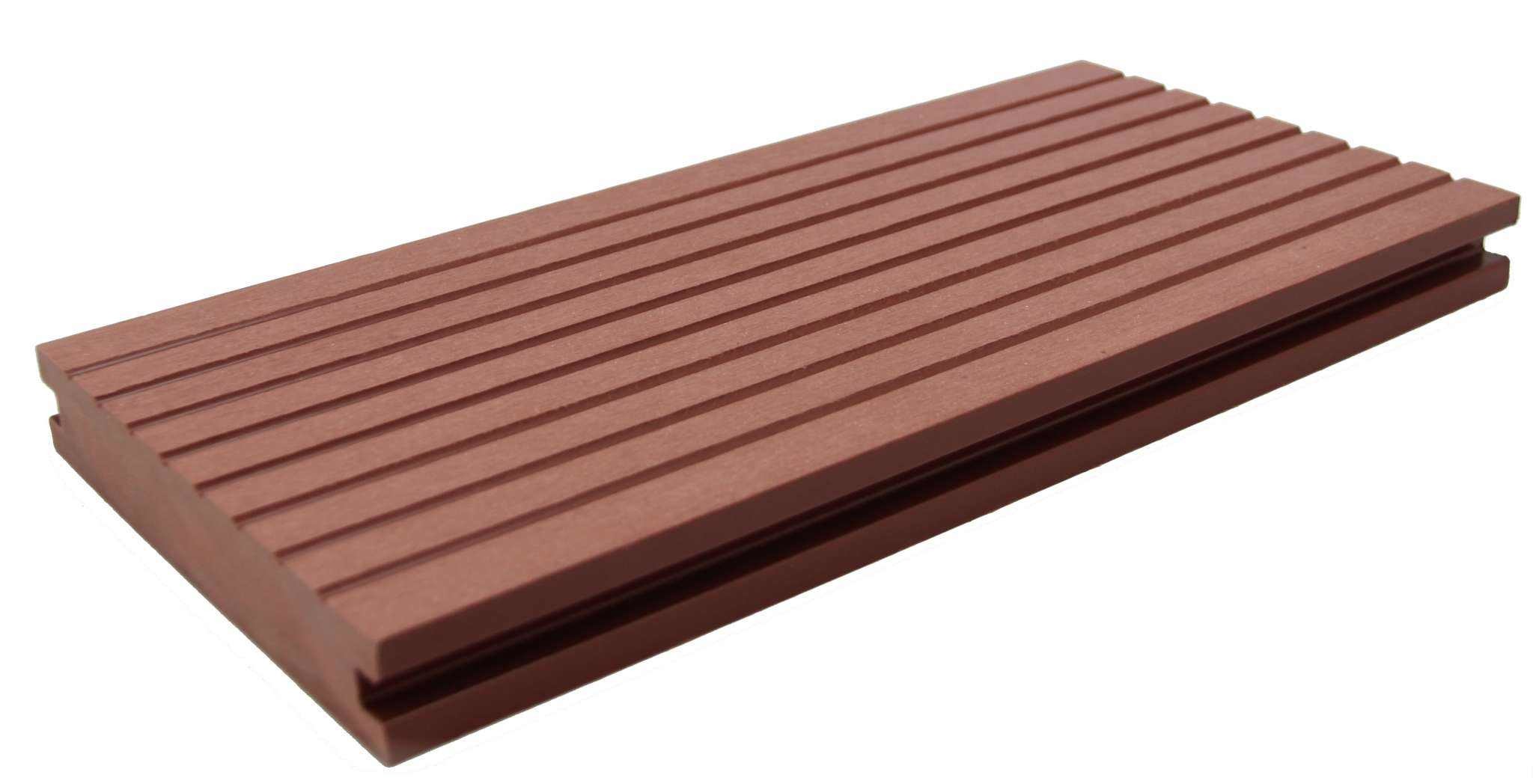

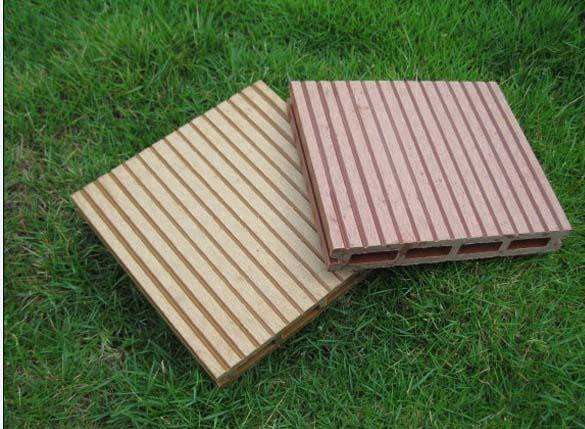

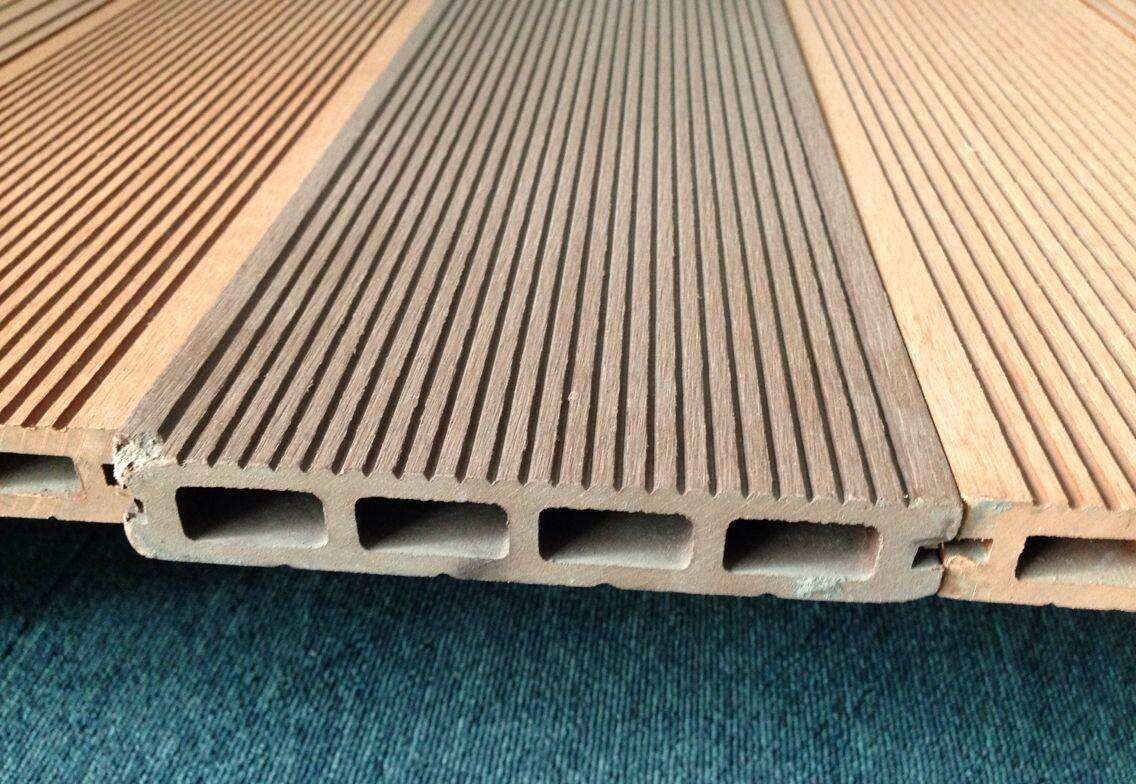

This unit is professional line to produce WPC (PP/PE) profile product, including chairs,floors and trash can series profile product, PVC foaming profiles and decorative plates for making door.



The line compounds domestic and abroad technology, having characters of high automatic level, steady performance, large output and high efficiency.



Flow chart :



Raw material +wood power+ additive → mixing → granulating → conical twin-screw extruder → profile extrusion mould → cool molding die → vacuum calibration support →haul-off → cutter → rack → finished product

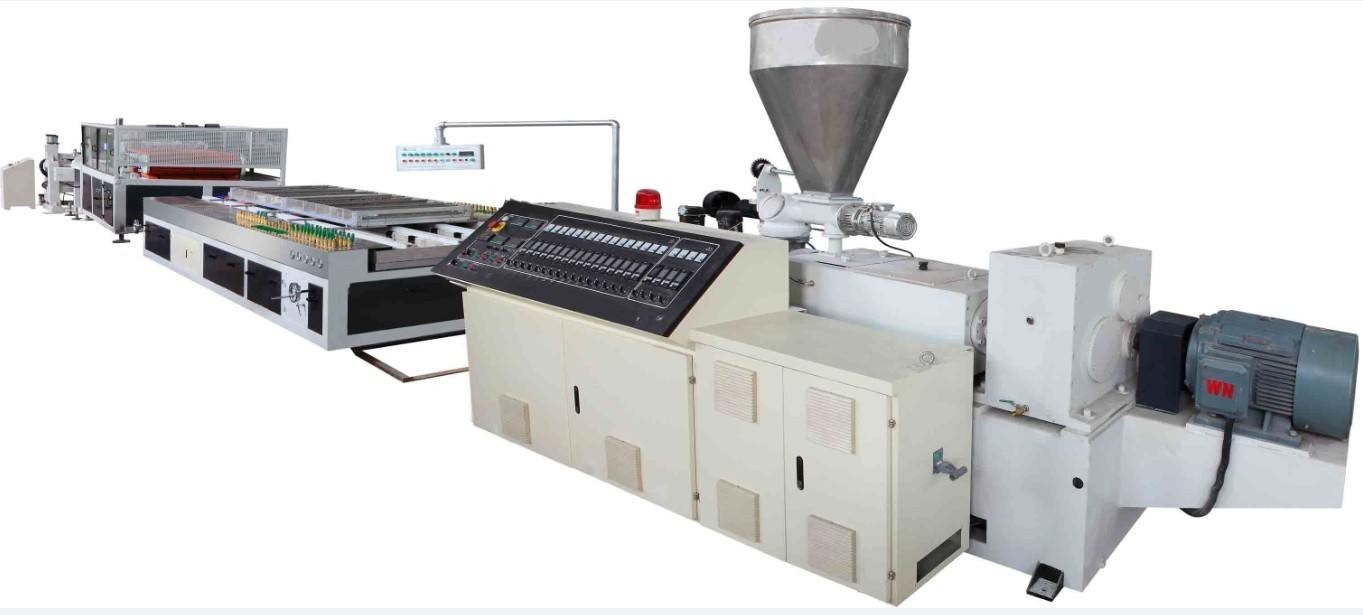

Machine Line List :



1> Conical Double screw extruder: SJSZ-65/132

2> WPC PP/PE/PVC windows,doors,fencing, decking,skirting,floor profile mold

3> Vacuum calibrating system

4>Haul off machine

5> Cutting machine

6> Discharge bracket

7> Mixer

8> WPC pelletizing/granulate extrusion line ( For PP/PE material)

9> Sander

10> Embossing machine

11> Brushing machine

12> Coating device



Main technical parameter :



Extruder Model SJZ55/110 SJZ65/132 SJZ80/156 SJZ92/188
Mian motor power 22kw 37kw 55kw 110kw
Product width



200



240 300 600 900 1200
vacuum power 4kwX1 5.5kwX1 5.5kwX1 5.5kwX2 5.5kwX1 7.5kwX1 5.5kwX1 7.5kwX1
water pump 2.2kw 2.2kw 4kw 5.5kw 7.5kw 7.5kw
hauling speed 0-5m/min 0-5m/min 0-5m/min 0-3m/min 0-2.5m/min 0-2.5m/min
capacity 70kg/h 110kg/h 110kg/h 170kg/h 300kg/h 300kg/h





model YF200 YF240 YF300 YF400
profile width(mm) 200 240 300 400
hauling height(mm) 150 150 150 150
total power of auxiliary (kw) 18 27 33 30
compressure air(Mpa) 0.6 0.6 0.6



0.6





If raw material is PE or PP , you need mix wood powder + PP/PE particles together ,and then put them into pelletizing line , finally get final wood plastic pellets .



Professional WPC Profile Extrusion Line High Performance Low Noise



Professional WPC Profile Extrusion Line High Performance Low Noise
