Szczegóły Produktu:

Place of Origin: ZHANGJIAGANG
Nazwa handlowa: LB
Orzecznictwo: CE,ISO
Model Number: LB

Zapłata:

Minimum Order Quantity: 1 SET
Cena: USD,EUR
Packaging Details: STANDARD PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH
Contact Now
Szczegółowy opis produktu
Condition: New Model Number: SJZ-80A
Dimension(L*W*H): 5800mm*1200mm*2100mm RAW MATERIAL: WPC
Screw Design: Double-screw Max capacity: 300kg/h-900kg/h optional

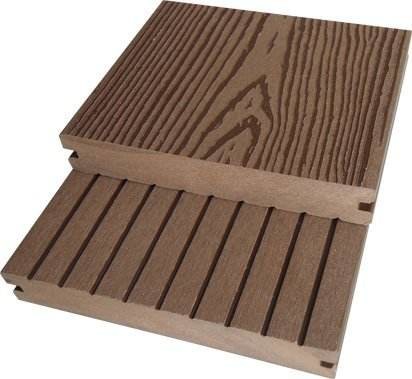

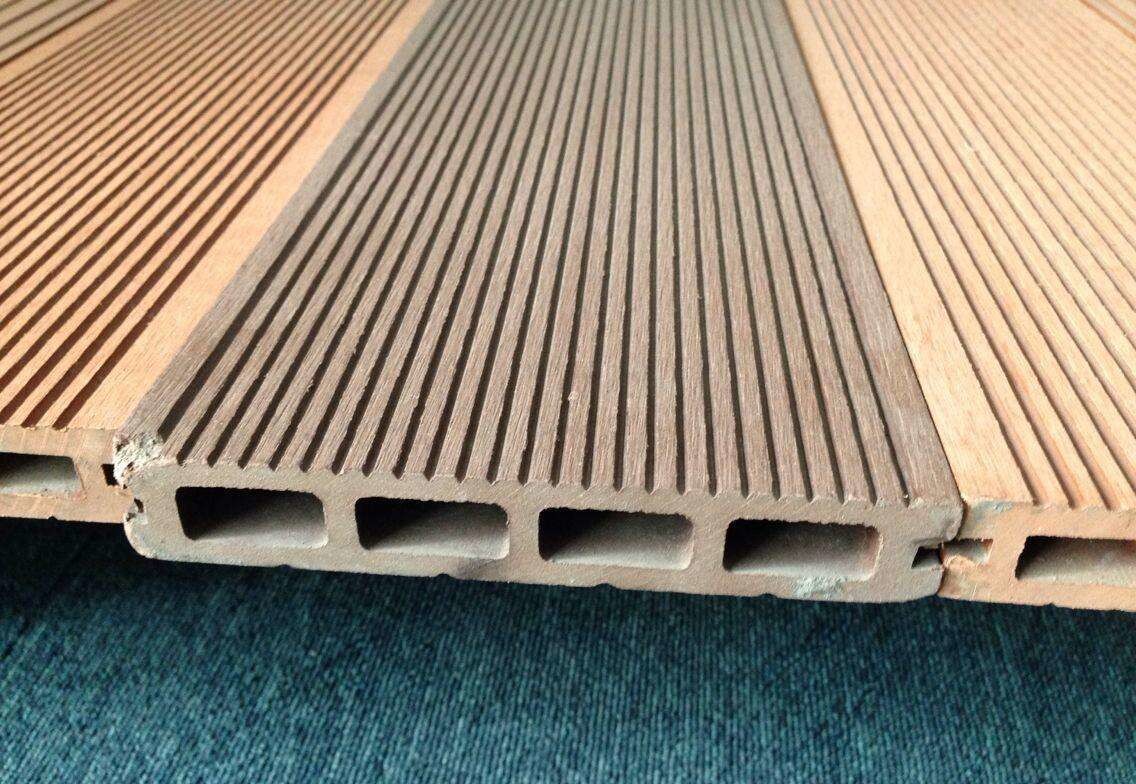

WPC Decking Panel Extrusion Machine/ WPC profile making machine production line



Product Description:



Our one step wpc profiles machine line is high technical and easy to operated. Also CE approved. It can be used to produce various PVC/WPC products, such as wpc foam board, wpc floor, wpc door, ect. WPC products is made from PE/PP/PVC+wood powder+additives. It is a new generation of green environmental material and very popular in the world at present. WPC product have both wood and plastic double properties, and it's mechanical performance is better than wood.It also have the features of water-proof ,fire-resistant,anti-corrosion,anti-moth,100% recycled.

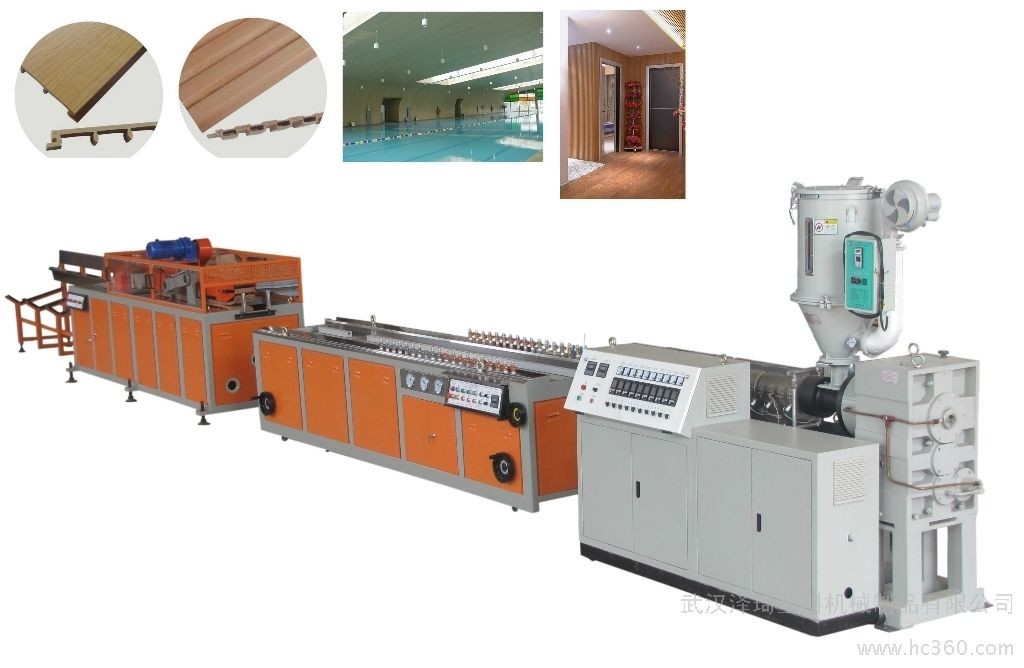

 The whole production line includes the following parts:



1. Mixing Machine

2. Spring Feeder

3. Twin Screw Extruder

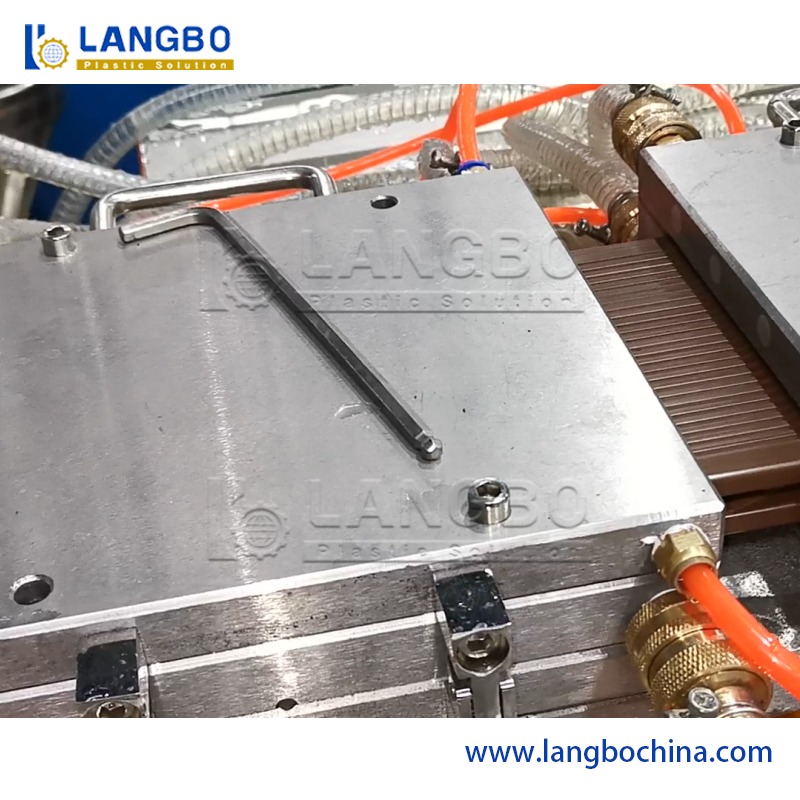

4. Profile Moulds (make according to your requirements)

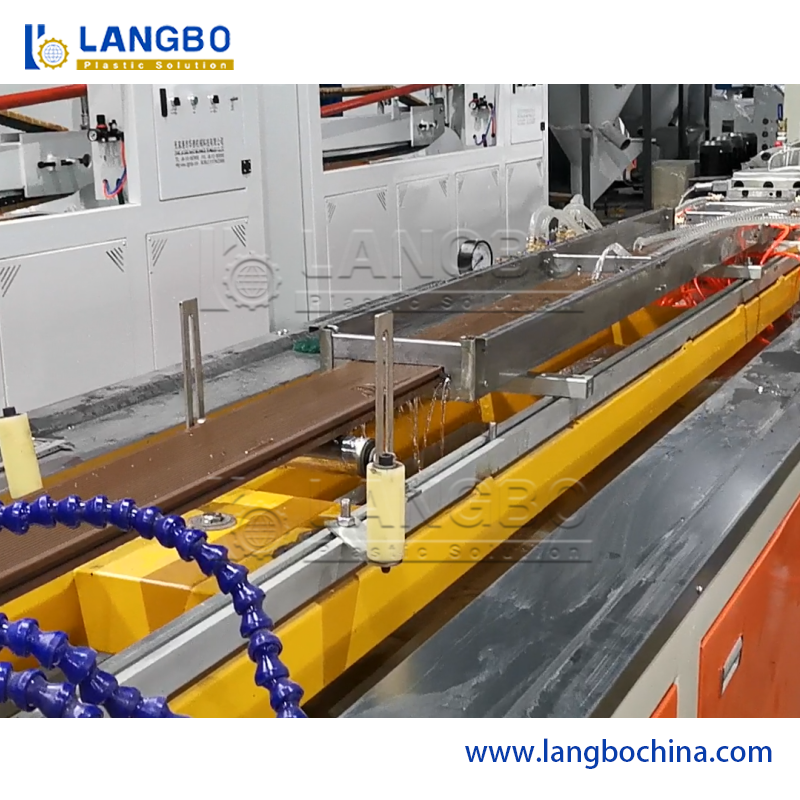

5. Vacuum Calibration Table

6. Hauling Off Machine

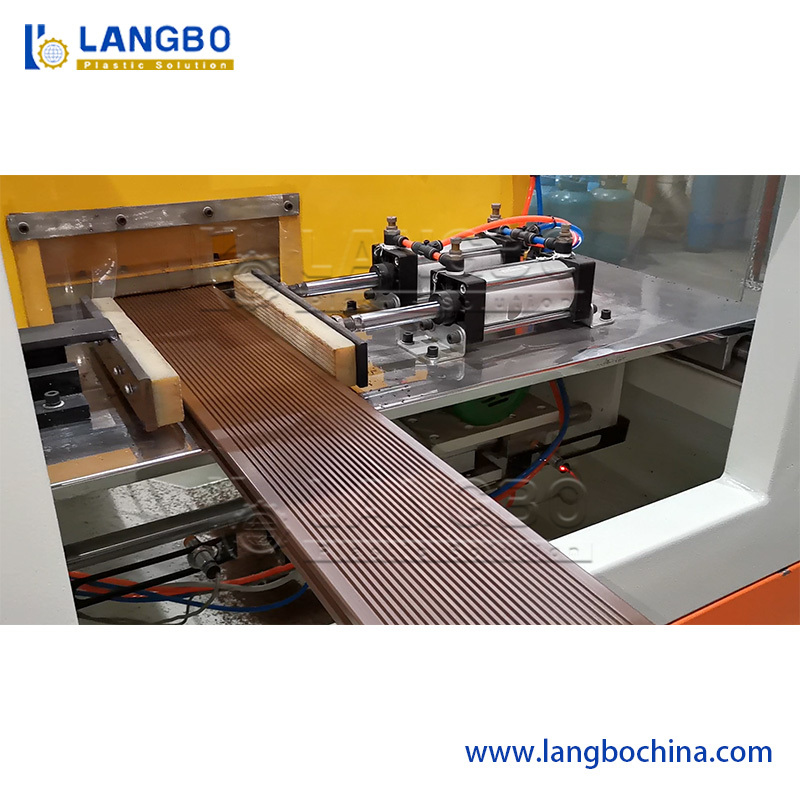

8. Cutting Machine

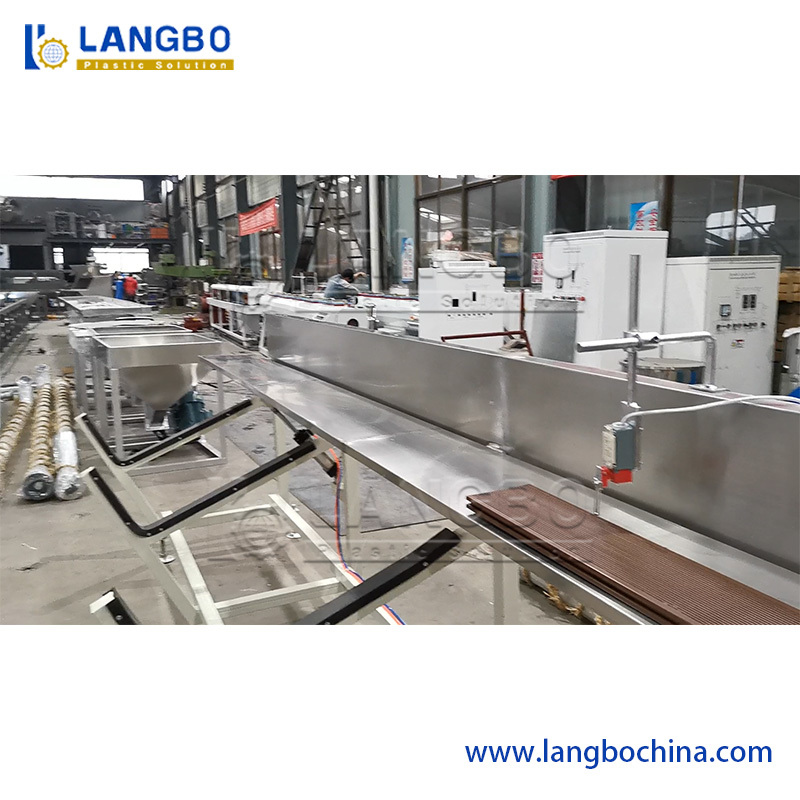

9. Stacker



Production Flow:



Powder Mixer → Spring Feeder → Extruder Machine → Mold → Vacuum Calibration Table → Hauling Off Machine→ Cutting Machine → Stacker

wood powder preparing ( need wood powder size: 60-80mesh, water content lower than 8%. Miller and drier are the tools use to achieve the aims)-----mixer(use to mix the wood powder and plastic)---------pellets granulator (if wood with PVC , need not make into pellet , can use to extrude profile directly)---------profile extruding ---------products treatment ( can sanding the surface to be more roughly like nature wood, can press wood pattern , can cover with shinning film)



we have all the above mentioned machine. We are ready to provide you all your need .





 Machine Features:



1.This technology is suitable to produce WPC products at high value with variety of plastic and nature fiber, and the material is of 90% of waste plastic and waste natural fiber



2. This production line can produce wpc products of different specifications only via changing mould.



3. PVC WPC door board production line is adopted specially designed HGMS80/156, HGMS92/188 conical twin screw extruder.



The parallel twin screw extruder is used to mix the wood and plastic and get good homogeneous melt



4. It adopts imported ABB and Siemens speed frequency converter.



5. It chooses imported RKC and Omron temperature controller.



6. This is one step WPC extrusion technology, which saves energy



7. The production line consist of conical twin screw extruder, moulds for door boards, forming moulds, calibrating cooling stage, caterpillar haul-off, transverse cutter and tilt stacker.





Technical Parameters



Name of
equipments
Spec./Model YF210 YF240 YF500 YF800
Extruder Extruder model SJSZ51/105 SJSZ65/132 SJSZ80/156 SJSZ92/188
Dimension(m) 3.3*1.45*2.1 3.45*1.45*2.25 5*1.54*2.28 6.2*1.55*2.7
Capacity(kg/h) 50-150 80-250 100-350 200-600
Installed paower(KW) 25 64 115 168
Sizing table Dimension(m) 4.2*1*1.1 5.8*1.*1.1 6.5*1.5*1.1 6.5*1.5*1.1
Installed paower(KW) 18 24 30 43

Hauling and

cutting machine

Dimension(m) 5.8*1.1*1.7 5.8*1.1*1.7 3.1*1.3*1.7
2.2*1.45*1.8
3.55*1.85*1.6
2.5*1.8*1.6
Hauling speed (m/min) 0-4 0-4 0-3 0-2
Hauling force (N) 30000 30000 35000 50000

Max cutting area

and width (mm)

240*65 240*65 500*80 800*80
Installed power (KW) 6 6 8 8
Stacker Stacking length(mm) 6 6 6

6
