Szczegóły Produktu:

Place of Origin: ZHANGJIAGANG
Nazwa handlowa: LB
Orzecznictwo: CE ISO
Model Number: LB-63D

Zapłata:

Minimum Order Quantity: 1 SET
Cena: USD EUR
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH
Contact Now
Szczegółowy opis produktu
Application: Drain Pipe Warranty: 12 months
Voltage: 380V 440V 400V 220V Type: Pipe Belling Machine
PIPE COLOUR: WHITE, ORANGE, BLANK PLC: FULL AUTOMATIC

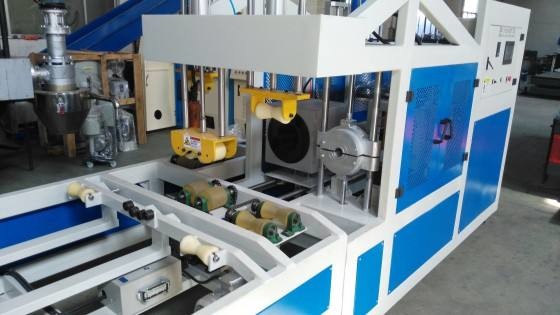

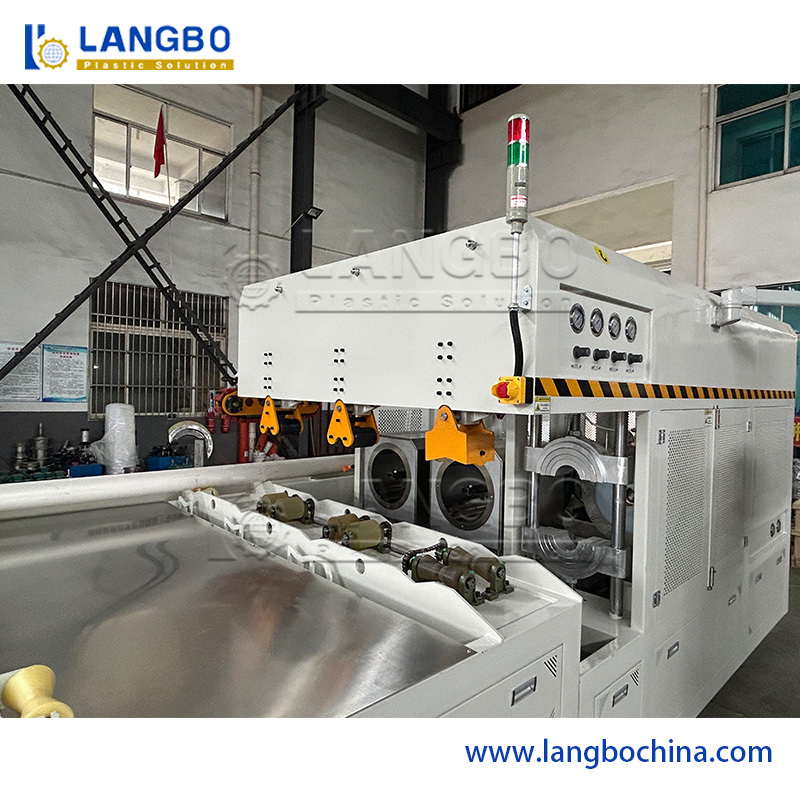

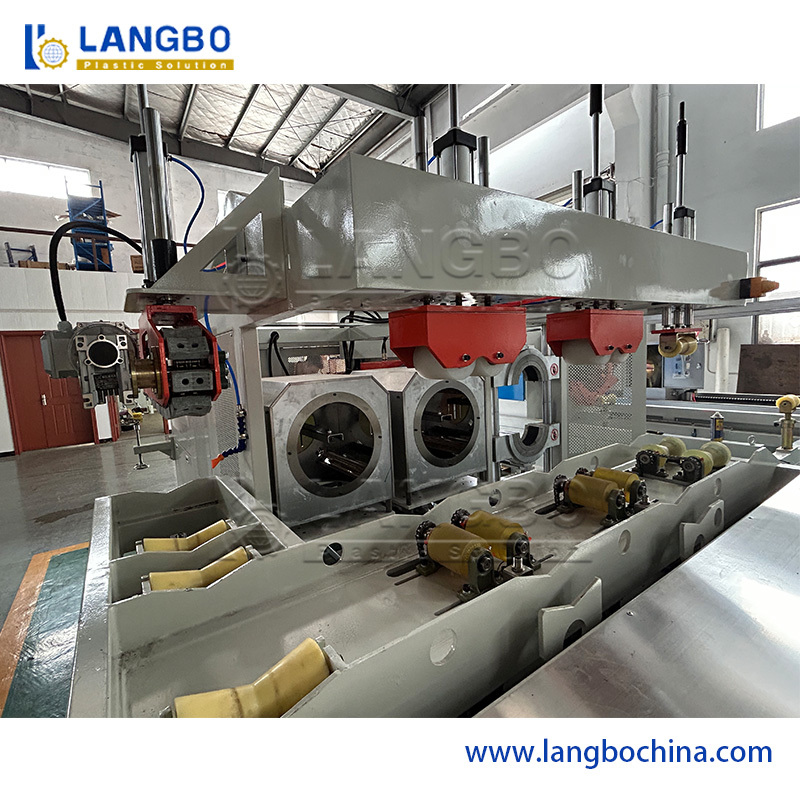

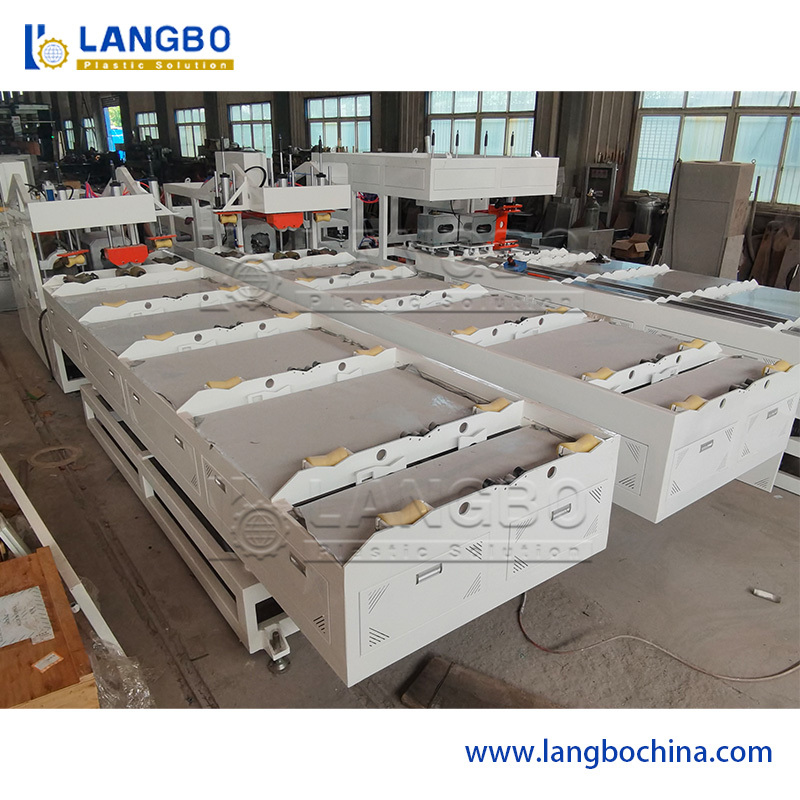

Full Automatic PVC Pipe Belling Machine/Expanding Machine

Features and application:

This machine is suitable for the R type and U type belling machine plastic pipes.It can not only used in line with the pipe production line but also can be used as a single machine. The characteristics of this machine is full automatic, stable and reliable, easy to operate. It adopts vacuum calibration inside the mould.

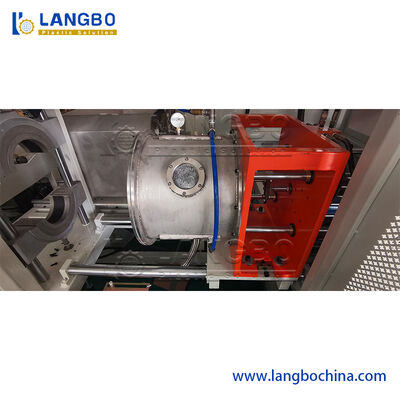

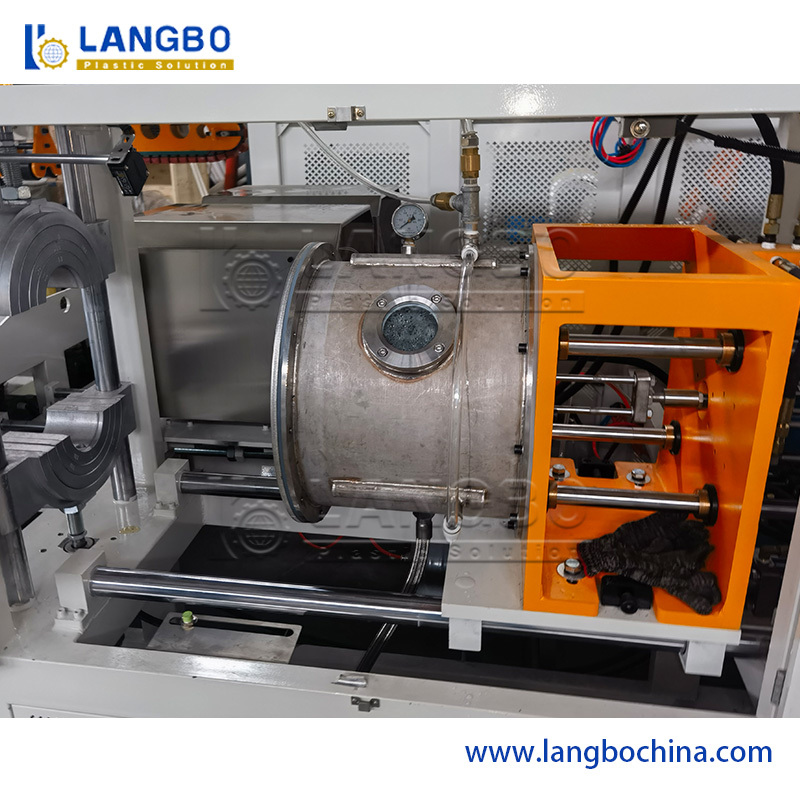

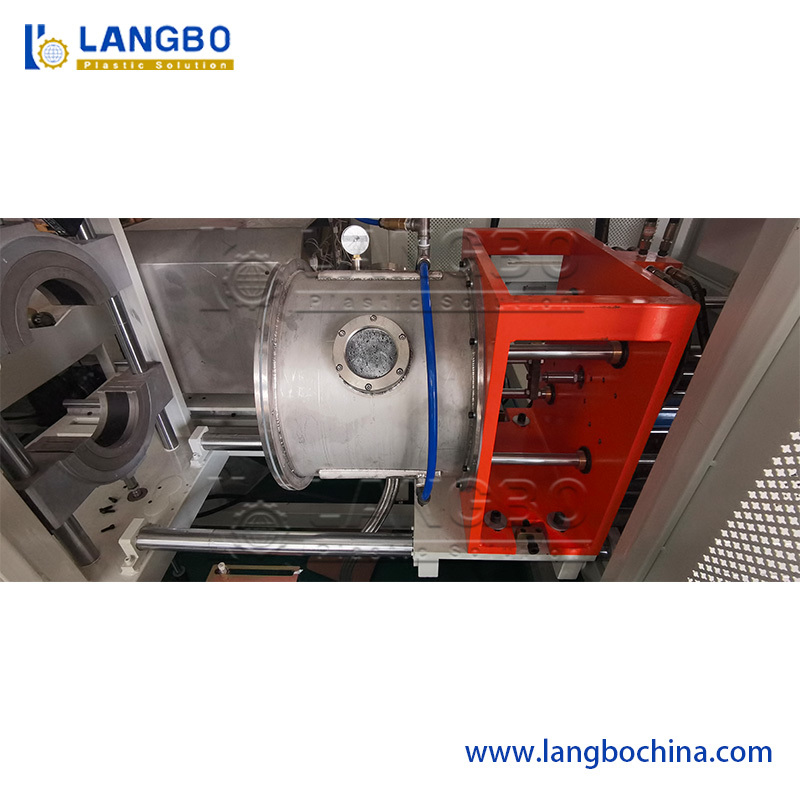

Automatic belling machine,equipped with the the correspondent supporting material traction devices of the maine machine and the corresponding interface, it can use with the main machine with the crowned on -line and also as a single machine. Billing pipe all can translate with smooth movement and it will not damage the pipes. Heating furnace uses cycle hot fan ways to heat. Forming meathods all use head type fixed with correct pipe head fixed. This machine on the control panel has expansion solvent faucet ( direct jaws ) and expanded flexibility for the ring-type jack (R I) of the switch,the expansion of choice is very convenient method, process adaptability.The main electrical control devices are used imported components, stable and reliable system performance.

Technical parameters:


Model

Pipe Diameter

Heating Method

Belling Method

Heating power

Dimension

SGK110

50-110mm

Electric heating

Mould physical expansion

10.5kw

7500x1400x1750mm

SGK160

50-160mm

Electric heating

Mould physical expansion

10.5kw

7500x1400x1750mm

SGK200

50-200mm

Electric heating

Mould physical expansion

10.5kw

7855x1350x1900mm

SGK250

110-250mm

Electric heating

Mould physical expansion

10.5kw

7830x1620x1700mm

SGK315

160-315mm

Electric heating

Mould physical expansion

14kw

8050x1750x1900mm

SGK450

200-450mm

Electric heating

Mould physical expansion

18kw

8290x2090x2080mm

SGK500

315-500mm

Electric heating

Mould physical expansion

18kw

8500x3050x2100mm

SGK630

400-630mm

Electric heating

Mould physical expansion

22.5kw

8615x3125x2500mm

The information above is only for your consideration. For the exact information, please contact me.
