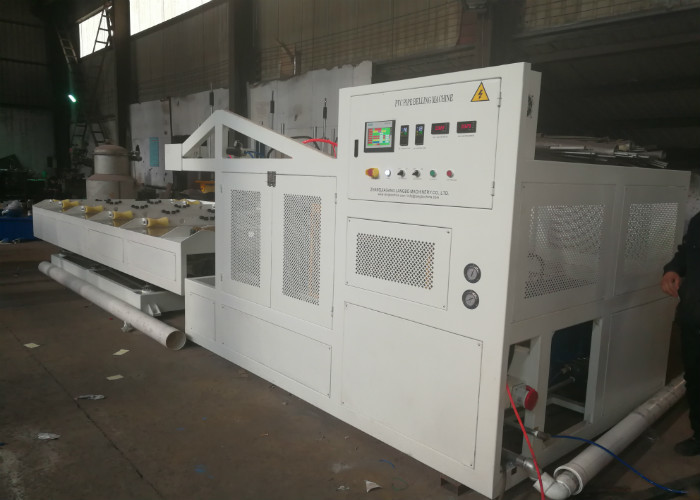

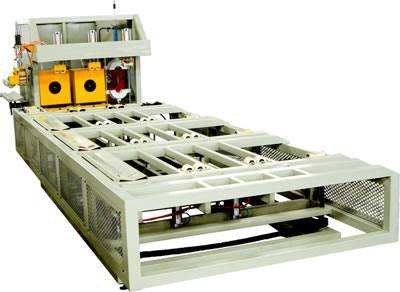

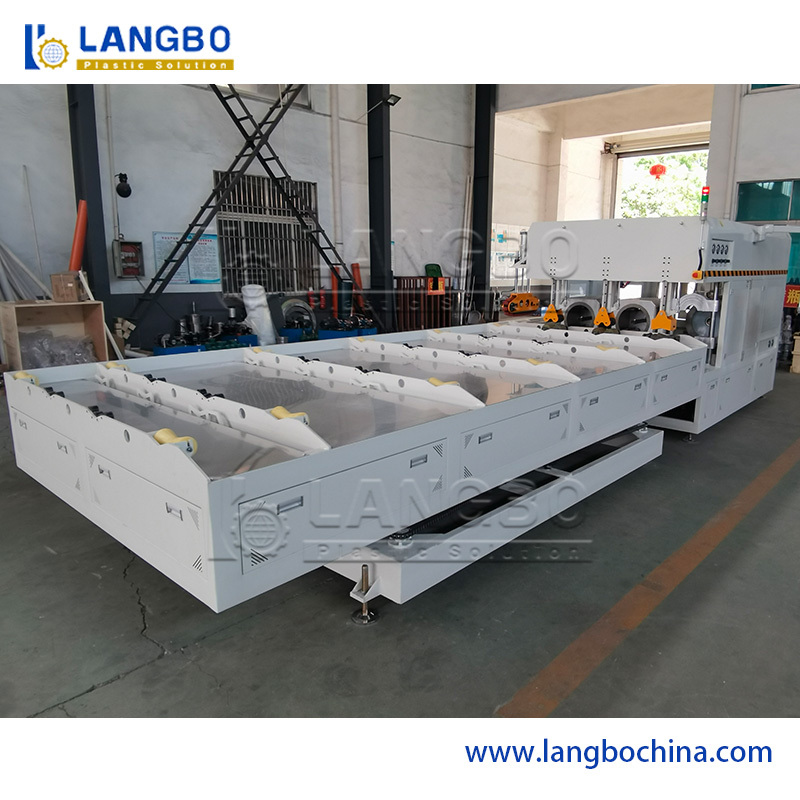

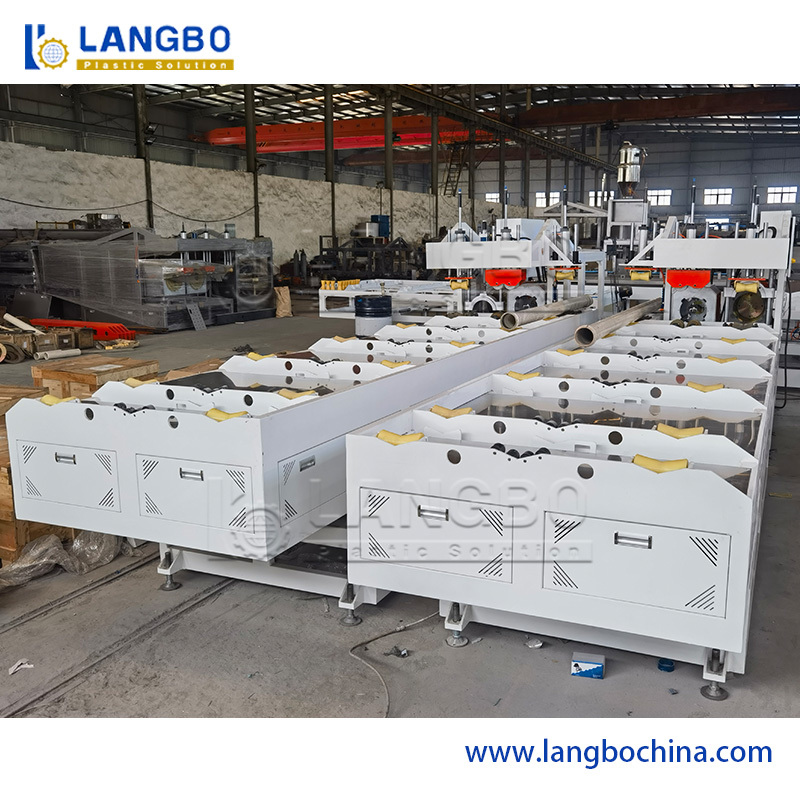

Plastic Pipe Belling Machine Full Automatic Control Low Energy Consumption

Chiny Plastic Pipe Belling Machine Full Automatic Control Low Energy Consumption dostawca
Plastic Pipe Belling Machine Full Automatic Control Low Energy Consumption dostawca Plastic Pipe Belling Machine Full Automatic Control Low Energy Consumption dostawca

Duży Obraz :  Plastic Pipe Belling Machine Full Automatic Control Low Energy Consumption

Szczegóły Produktu:

Place of Origin: ZHANGJIAGANG
Nazwa handlowa: LB
Orzecznictwo: CE ISO
Model Number: LB-63D

Zapłata:

Minimum Order Quantity: 1 SET
Cena: USD EUR
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH
Contact Now
Szczegółowy opis produktu
Model: SGK Usage: plastic Belling
Belling Range: 16~630mm Type: pvc pipe automatic plastic belling machine
PIPE COLOUR: WHITE, ORANGE, BLANK Central Height: According to customer's request

socket machine/Automatic PVC pipe belling machine/PIPE Belling equipment

Specifications

Automatic PVC pipe belling machine
1. low price/good quality
2. belling type:"U","R"
3. adapt diameter:16-630mm
4. CE approved

Automatic PVC pipe belling machine



Detailed Description



Feature:
1. Used for plastic pipe belling, such as PVC, PE, PP-R pipe
2. Important auxiliary machine for pipe extrusion line, it can be operated separately,also be a part of extrusion line.
3. Full-automatic control.





Main Technical Date



Model Pipe Diameter Heating Method Belling Method Heating power Dimension
SGK110 50-110mm Electric heating Mould physical expansion 10.5kw 7500x1400x1750mm
SGK160 50-160mm Electric heating Mould physical expansion 10.5kw 7500x1400x1750mm
SGK200 50-200mm Electric heating Mould physical expansion 10.5kw 7855x1350x1900mm
SGK250 110-250mm Electric heating Mould physical expansion 10.5kw 7830x1620x1700mm
SGK315 160-315mm Electric heating Mould physical expansion 14kw 8050x1750x1900mm
SGK450 200-450mm Electric heating Mould physical expansion 18kw 8290x2090x2080mm
SGK500 315-500mm Electric heating Mould physical expansion 18kw 8500x3050x2100mm
SGK630 400-630mm Electric heating Mould physical expansion 22.5kw 8615x3125x2500mm





Model SGK
Belling Scope Φ16mm-Φ630mm
Belling-type R-type, U-type
Pipe Length 3m-8m
Use Voltage AC 380V; 50Hz (Or according to customer's request)
Central Height According to customer's request

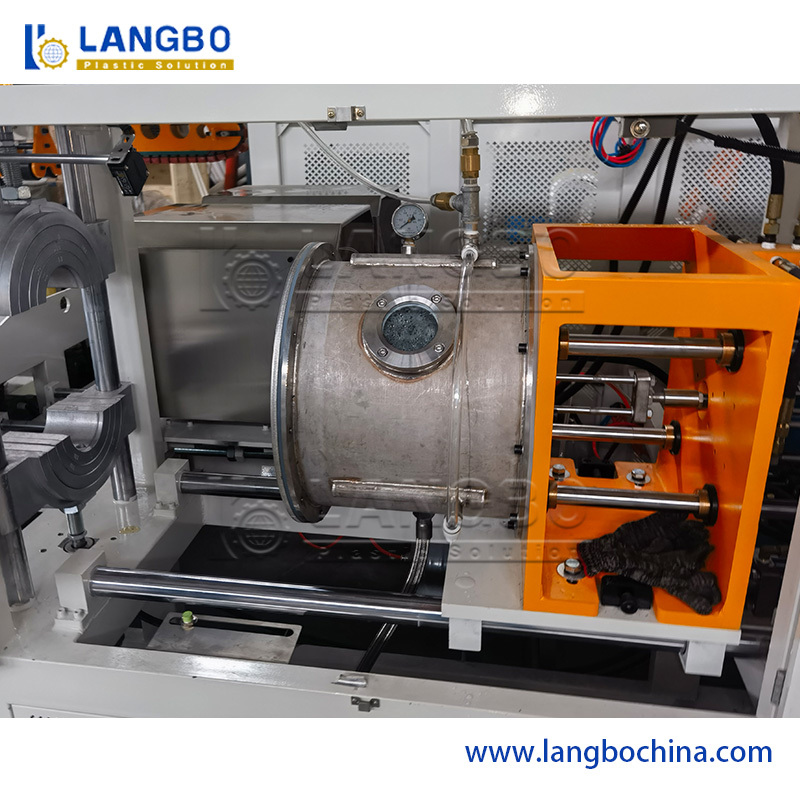

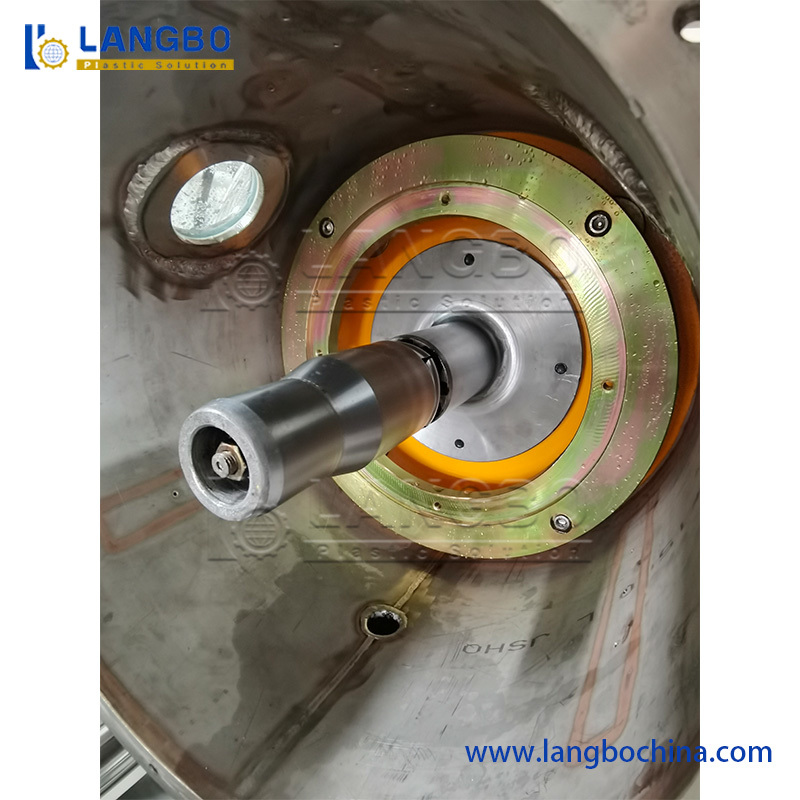

Molding mode R-type with collapsible core
Smooth type Pushing mould directly into pipe
Cooling mode Air-cooled or Water cooled
