PVC / PP Pipe Socketing Machine Production Line Fast Working Speed

Chiny PVC / PP Pipe Socketing Machine Production Line Fast Working Speed dostawca
PVC / PP Pipe Socketing Machine Production Line Fast Working Speed dostawca PVC / PP Pipe Socketing Machine Production Line Fast Working Speed dostawca

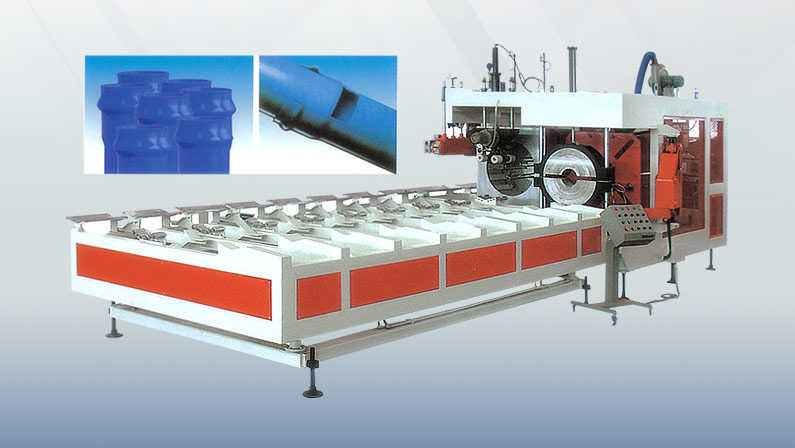

Duży Obraz :  PVC / PP Pipe Socketing Machine Production Line Fast Working Speed

Szczegóły Produktu:

Place of Origin: ZHANGJIAGANG
Nazwa handlowa: LB
Orzecznictwo: CE ISO
Model Number: LB-63D

Zapłata:

Minimum Order Quantity: 1 SET
Cena: USD EUR
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH
Contact Now
Szczegółowy opis produktu
Model: SGK Condition: New
Belling Range: 16~630mm Type: Pipe Belling Machine
Pipe Material: PVC, PE, PP Dimension(L*W*H): 7.5m*3.1m*1.7m

plastic pipe socketing machine/PVC pipe Belling production line

Specifications

Processing Technics: Heating and Belling
Type: PVC Pipe Belling Machine
Color: Blue and White
Power: 380V 50HZ

1. SGK16mm-630mm fully automatic belling machine is a earmarked for PVC pipe with belling plain type.
2. The working speed is very fast. It is jointly used with extruder line, and is used as a single machine as well.
3. It is highly automatic and easy to operate with stable and reliable performance.

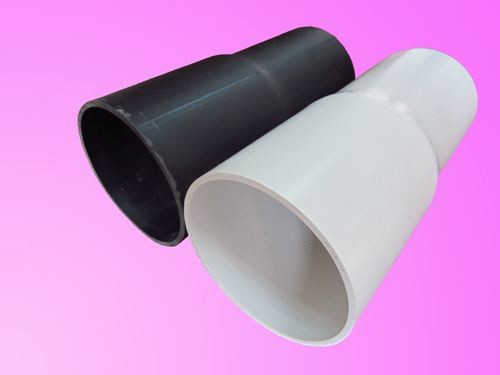

4. The belling part of pipes which accord to the standards of PVC10002.11996 is smooth and does not have obvious step, achieves the national standard.



our competitive advantage:
1. stable performance.
2. according to customer's offered pipe dimensions and expanding type, we can do straight, R and Rectangular type.
3. PLC control, easy operation and automatic .


Product Description



SGK series Full-Auto Pipe Belling-machine Expander with drawing device and program interface concerned id used with extruding machine. It is also could separating operation. While expanding pipes, the machine adopts translation. The action is steady and correct. It does not damage pipe materials. The machine adopts double-infrared heating oven type. Each oven is equipped with heating core. The shaping method adopts expanding-end shaping. The size of pipe mouth is correct. On its panel, there is a transfer switch of expanding solvent type pipe socket sovent, rubber-ring expansion and rubber-ring lip type sockets. The choice of expanding pipe types is very convenient. The technological adaptability is strong. Its main electric control elements are all good quality. The system characteristics are steady and reliable.



Main Techincal data:



Model Pipe Diameter Heating Method Belling Method Heating power Dimension
SGK110 50-110mm Electric heating Mould physical expansion 10.5kw 7500x1400x1750mm
SGK160 50-160mm Electric heating Mould physical expansion 10.5kw 7500x1400x1750mm
SGK200 50-200mm Electric heating Mould physical expansion 10.5kw 7855x1350x1900mm
SGK250 110-250mm Electric heating Mould physical expansion 10.5kw 7830x1620x1700mm
SGK315 160-315mm Electric heating Mould physical expansion 14kw 8050x1750x1900mm
SGK450 200-450mm Electric heating Mould physical expansion 18kw 8290x2090x2080mm
SGK500 315-500mm Electric heating Mould physical expansion 18kw 8500x3050x2100mm
SGK630 400-630mm Electric heating Mould physical expansion 22.5kw

8615x3125x2500mm
