SRL- Z High Speed PVC Mixer Machine 18.5 - 75kw Power High Efficiency

Orzecznictwo
dobra jakość Linia do wytłaczania rur PE na sprzedaż
dobra jakość Linia do wytłaczania rur PE na sprzedaż
Im Online Czat teraz

SRL- Z High Speed PVC Mixer Machine 18.5 - 75kw Power High Efficiency

Chiny SRL- Z High Speed PVC Mixer Machine 18.5 - 75kw Power High Efficiency dostawca
SRL- Z High Speed PVC Mixer Machine 18.5 - 75kw Power High Efficiency dostawca SRL- Z High Speed PVC Mixer Machine 18.5 - 75kw Power High Efficiency dostawca

Duży Obraz :  SRL- Z High Speed PVC Mixer Machine 18.5 - 75kw Power High Efficiency

Szczegóły Produktu:

Place of Origin: ZHANGJIAGANG
Nazwa handlowa: LB
Orzecznictwo: CE, ISO
Model Number: LB-800/2000

Zapłata:

Minimum Order Quantity: 1 SET
Cena: USD, EUR
Packaging Details: STANDARD PACKAGE
Delivery Time: 60 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 10 SET PER MONTH
Contact Now
Szczegółowy opis produktu
CONTROL: AUTOMATIC MIXER: VERTICAL/HORIZONTAL COMBINATION
NOTOR POWER: 83/110/22KW FEEDING: AUTO-PNEUMATIC
Model Number: SRL-Z Power(W): 18.5-75kw

Heating High Speed Mixer/ PVC Mixer Machine/plastic mixing machine

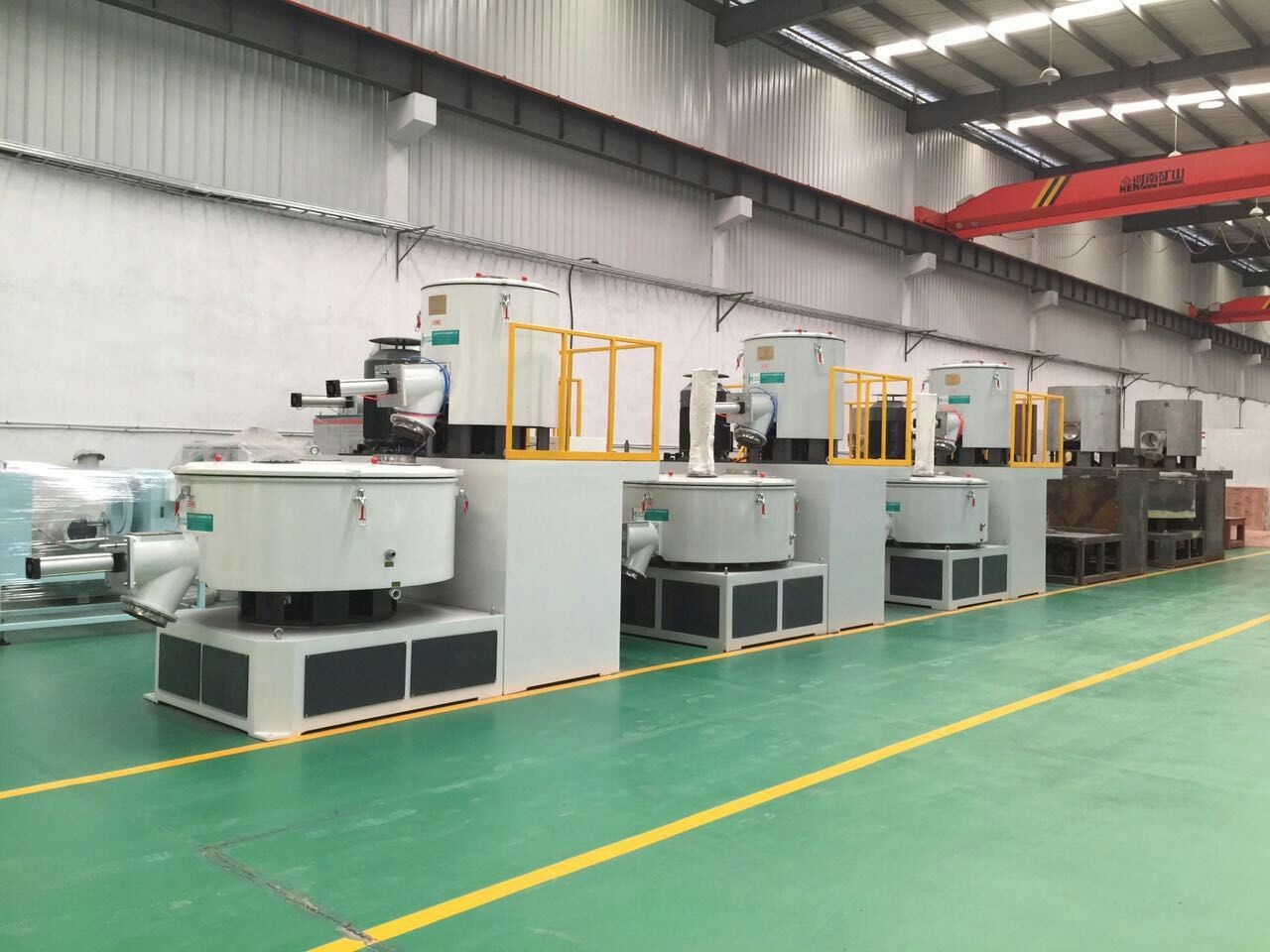

Introduction of PVC mixer machine:

PVC mixer machine is important for production of PVC product, widely used for PVC board, pipe, profiles, sheet and so on. According to your demand, it can be equipped with inverter driving with features of low starting currency, power saving. Also can be equipped with material pouring pin, vacuum loader, dust collector, silo etc to improve automatic level and reduce dust pollution.

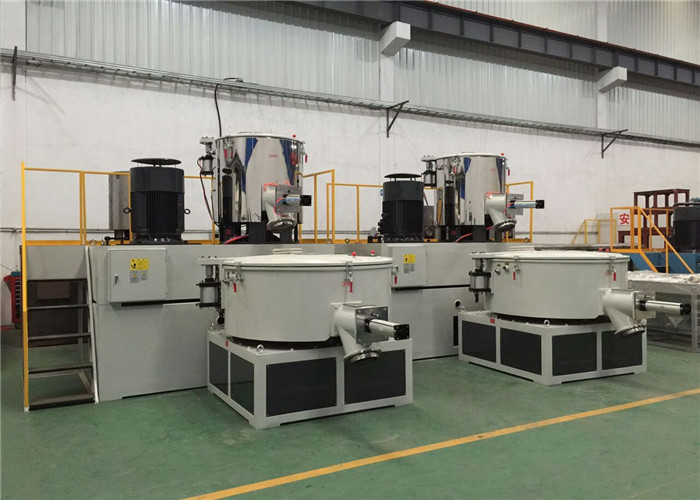

It composed mainly by hot mixer and cooling mixer. the hot mixer will heat the material to 110C, at this temperature, the additives will be mixed fully and re-act each other which is necessary for extrusion stage, the cooling mixer will cool down the mixture to 45C to avoid material decomposition.


Main features of PVC high speed mixer:

* motor adopts Dazhong brand from public listed company with high quality, high efficiency and durable
* Oil seal adopts imported UKS seal from Germany, make sure no oil leakage.
* mixer barrel wall adopts 6mm stainless steel, thicker than others which mostly is 4mm.
* base top adopts 20mm steel plate, stronger and durable.
* adopts hardened gearbox, stronger and durable. Better than cycloidal-pin wheel gearbox.
* flange of mixer barrel adopts stainless steel but not chrome plated iron.
* main shaft, mixing paddle, belt pulley are processed on 3500r/min dynamic balance machine to ensure stable rotating when mixing material without shaking.


Main models of pvc mixer machine:


ModelSRL-Z100/200SRL-Z200/500SRL-Z300/600SRL-Z500/1000
Total capicity(L)100/200200/500300/600500/1000
Mixing capicity(kg/h)165325500750
MOtor power(kw)14/22/7.530/42/1140/50/1547/67/15
Paddle speed(r/min)650/130/180475/950/130475/950/130430/860/60



SRL-Z800/1600SRL-Z800/2500SRL-Z1000/3000SRL-Z1300/4500
800/1600800/25001000/30001300/4500
1400140019002500
60/90/18.580/110/30110/160/37132/200/45
370/740/50370/740/50325/650/50250/500/50
