Stainless Steel Blade Twin Screw Mixer , 7.5 - 30kw Power Plastic Granules Mixer

Chiny Stainless Steel Blade Twin Screw Mixer , 7.5 - 30kw Power Plastic Granules Mixer dostawca
Stainless Steel Blade Twin Screw Mixer , 7.5 - 30kw Power Plastic Granules Mixer dostawca Stainless Steel Blade Twin Screw Mixer , 7.5 - 30kw Power Plastic Granules Mixer dostawca

Duży Obraz :  Stainless Steel Blade Twin Screw Mixer , 7.5 - 30kw Power Plastic Granules Mixer

Szczegóły Produktu:

Place of Origin: ZHANGJIAGANG
Nazwa handlowa: LB
Orzecznictwo: CE, ISO
Model Number: LB-800/2000

Zapłata:

Minimum Order Quantity: 1 SET
Cena: USD, EUR
Packaging Details: STANDARD PACKAGE
Delivery Time: 60 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 10 SET PER MONTH
Contact Now
Szczegółowy opis produktu
CONTROL: AUTOMATIC MIXER: VERTICAL/HORIZONTAL COMBINATION
Voltage: 220V,330V,440V FEEDING: AUTO-PNEUMATIC
Model Number: SHR-PVC Heating mixer Power(W): 7.5-30kw

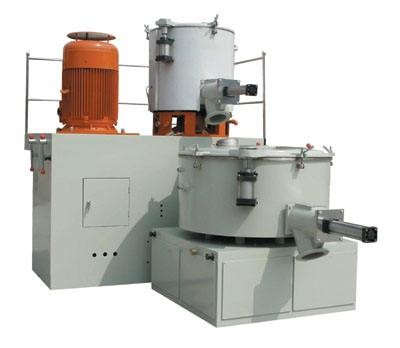

SHR PVC Heating mixer/High Speed Mixing Machine/plastic mixer grinder

1. The mixer used in plastics,rubber,daily chemical industry and laboratory materials mxied boxes,mixing,drying and cloring process.

2. The mixer Lid is double sealed for pvc heating mixer.

3. The mixer Spindle speed up to 3000 revolutions per minute, with electric heating, in order to achieve the best mixing effect

4. PVC heating mixer can mixing PVC flour And other plasticizer and other auxiliary materials, Raw material mixture can be directly into production line or other machine for production.

5. PVC heating mixer discharge method using two automatic temperature control and manual control.

6. stainless stell blades for the whole cast ,and throughdymamic and static balance test refind.

7. PVC heating mixer eletrical contorl components of famous brand.



Specifications

1. used in plastic and rubber mixing,drying,color
2. lid is double sealed
3.Stainless steel blade
4. Elctric self-friction mixer





Main technical parameters



PARAMETERS

TOTAL

VOLUMN(L)

AVALIABLE
VOLUMN(L)

MOTOR AND

HEATING POWER(KW)

MAIN AXIS

SPEED
(RPM)

OUTSIDE SIZE(MM)
LENGTH*WIDTH
*HEIGHT
HEATING MODE UNLOADING MODE
MODEL
LB-SHR-50A 50 35 11 1500 1100*400*710 SELF-FRICTION PNEUMATIC
LB-SHR-100A 100 75 14/22/6 650/1300 2100*800*1510 ELECTRICTY HEATING PNEUMATIC
LB-SHR-200A 200 150 30/42/9 475/950 2400*850*1580 ELECTRICTY HEATING PNEUMATIC
LB-SHR-300A 300 225 40/55/9 475/950 2800*1080*1680 ELECTRICTY HEATING PNEUMATIC
LB-SHR-400A 400 300 47/67/12 430/860 3160*1150*1760 ELECTRICTY HEATING PNEUMATIC
LB-SHR-500A 500 375 55/75/12 430/860 3060*1150*1880 ELECTRICTY HEATING PNEUMATIC
LB-SHR-800A 800 600 83/110/15 370/740 3385*1380*2750 ELECTRICTY HEATING PNEUMATIC
LB-SHR-1000A 1000 750 110/160/28 325/650 3460*1140*2900 ELECTRICTY HEATING PNEUMATIC
