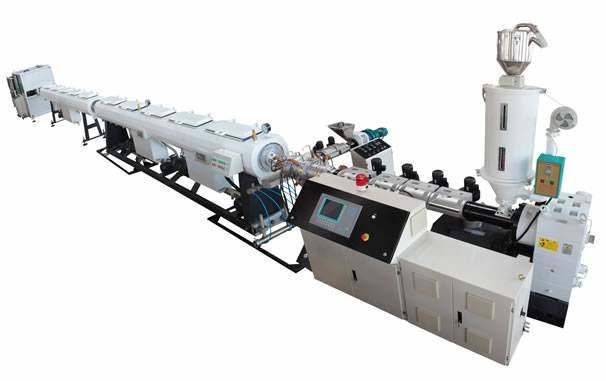

ABS / PPR Pipe Production Line , 90KW Power Drainage Tube Extrusion Machine

Orzecznictwo
dobra jakość Linia do wytłaczania rur PE na sprzedaż
dobra jakość Linia do wytłaczania rur PE na sprzedaż
Im Online Czat teraz

ABS / PPR Pipe Production Line , 90KW Power Drainage Tube Extrusion Machine

Chiny ABS / PPR Pipe Production Line , 90KW Power Drainage Tube Extrusion Machine dostawca
ABS / PPR Pipe Production Line , 90KW Power Drainage Tube Extrusion Machine dostawca ABS / PPR Pipe Production Line , 90KW Power Drainage Tube Extrusion Machine dostawca

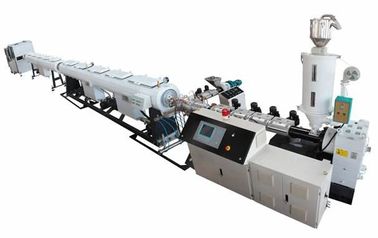

Duży Obraz :  ABS / PPR Pipe Production Line , 90KW Power Drainage Tube Extrusion Machine

Szczegóły Produktu:

Place of Origin: ZHANGJIAGANG
Nazwa handlowa: LB
Orzecznictwo: CE / ISO
Model Number: LB-630

Zapłata:

Minimum Order Quantity: 1 SET
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T,
Supply Ability: 15 SETS PER MONTH
Contact Now
Szczegółowy opis produktu
Extruder power (kw): 90KW Screw Design: Double-screw
COLOUR: BLACK, ORANGE APPLICATION: PPRC PIPE
MARK LINE: SINGLE SCREW EXTRUDER SCREW DIAMETER: 65/33:1

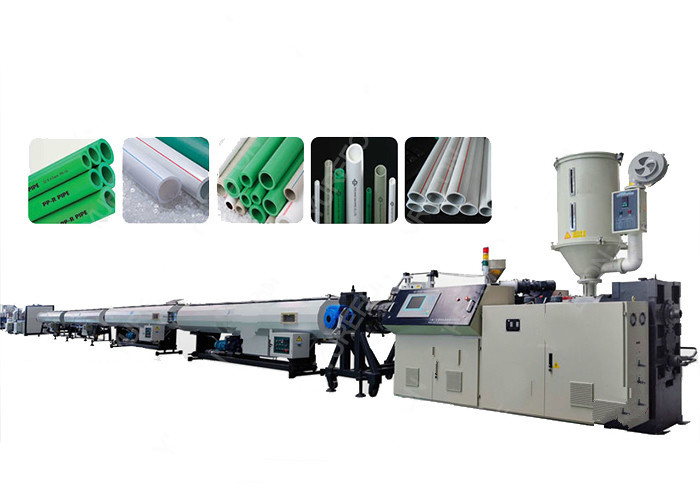

PVC PP PE ABS PPR Plastic Pipe Production Line Drainage Tube Extrusion Machine

Product Description

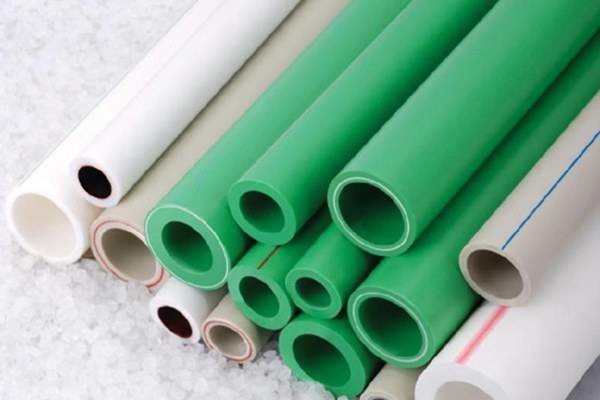

PP-R, PE Pipe Production Line is mainly used to produce pipes of various diameters and thickness, which are used in various fields such as water supply system, industrial water conveying system, compressed air transportation, etc. During the developing history, the PP-R pipe is the latest product, has the advantages of low prices, innocuity, non-corrosion, high temperature resistance and convenient to operate, etc.

This production line is developed by our company on the basis of absorbing the international advanced technology, the important parts of screw and die head are specially designed according to the properties of PP-R material. The electrical control uses frequency control, all the main electric parts are imported famous brand products; the total production line has the advantages of high output, stable quality, small deviation of the products, etc. therefore, it is the first-rate equipment in the plastic machinery industry. Meanwhile, this production line is suitable to produce the PP-C, PE-X cross-link pipe and the polyolefin pipes. Our company will offer formula, crafts and turn-key project.



Process flow

Plastic automatic charger →Hopper plastic dryer→ Single screw extruder → Mould and calibrator → Vacuum forming machine → Haul off machine → Cutting machine → Discharging rack



Main technical parameter:





Model number 16/63 20/110 50/160 75/250 110/315 200/450 315/630
Pipe diameter 16-63mm 20-110mm 50-160mm 75-250mm 110-315mm 200-450mm 315-630mm
Max output 120kg/h 120kg/h 180kg/h 300kg/h 450kg/h 650kg/h 800kg/h
Production rate 1.5-15m/min 0.8-8m/min 0.5-5m/min 0.4-4m/min 0.3-2m/min 0.1-1m/min 0.07-0.7m/min
Extruder model SJSZ-50/105 SJSZ-50/105 SJSZ-55/110 SJSZ-65/132 SJSZ-80/156 SJSZ-92/188 SJSZ-92/188
Installed power 45kw 45kw 55kw 75kw 105kw 160kw 205kw
Center height 1000mm 1000mm 1000mm 1000mm 1100mm 1100mm 1200mm
Installation area 22*2.5*2.0m 24*2.8*2.0m 24*2.8*2.0m 30*2.8*2.2m 35*3.0*2.4 m 36*3.0*2.4 m 38*3.2*2.8 m
