ISO Approval PPR Pipe Extrusion Line 104 - 150KW Input Power High Output

Orzecznictwo
dobra jakość Linia do wytłaczania rur PE na sprzedaż
dobra jakość Linia do wytłaczania rur PE na sprzedaż
Im Online Czat teraz

ISO Approval PPR Pipe Extrusion Line 104 - 150KW Input Power High Output

Chiny ISO Approval PPR Pipe Extrusion Line 104 - 150KW Input Power High Output dostawca
ISO Approval PPR Pipe Extrusion Line 104 - 150KW Input Power High Output dostawca ISO Approval PPR Pipe Extrusion Line 104 - 150KW Input Power High Output dostawca

Duży Obraz :  ISO Approval PPR Pipe Extrusion Line 104 - 150KW Input Power High Output

Szczegóły Produktu:

Place of Origin: ZHANGJIAGANG
Nazwa handlowa: LB
Orzecznictwo: CE / ISO
Model Number: LB

Zapłata:

Minimum Order Quantity: 1 SET
Cena: negotiation
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T,
Supply Ability: 15 SETS PER MONTH
Contact Now
Szczegółowy opis produktu
Condition: New Screw Design: Single-screw
COLOUR: BLACK, ORANGE APPLICATION: PPRC PIPE
Power(W): 104-150KW Weight: 6000-12000Kg

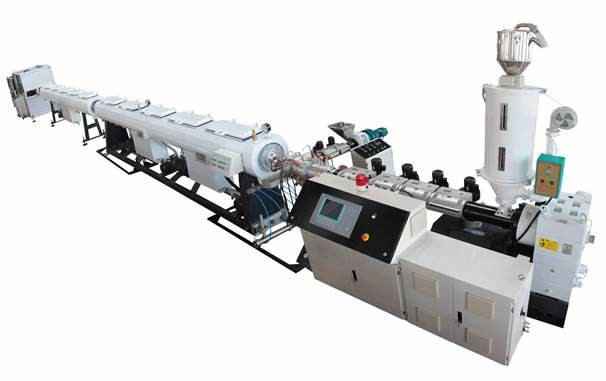

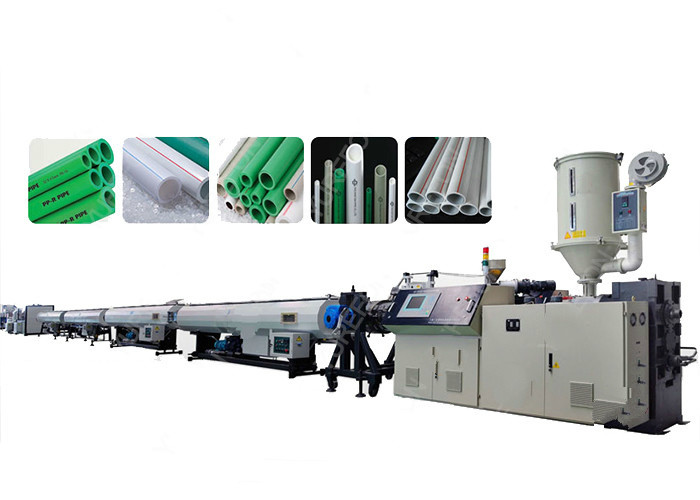

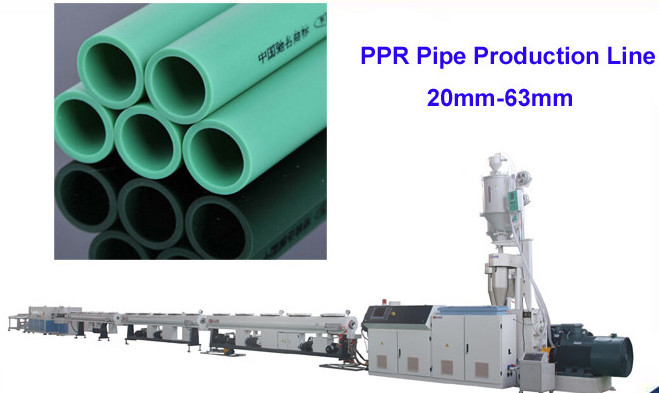

PE PPR pipe extrusion line plastic pipe production line

Product line equipment list of plastic ppr water pipe extrusion line:

1. Vacuum feeding

2. Hopper dryer

3. Single screw extruder

4. Color string extruder

5. Co-extrusion mould

6. Calibrator

7. Spray vacuum calibration tank

8. Spray cooling water tank

9. Haul-off machine

10. No dust cutter

11. Pipe Stacker for package.



Main Features of plastic ppr water pipe extrusion line:

1) High output, can be improved 30-50% at the same main motor power condition.

2) High production line speed, for Φ20mm pipe can be 35m/min.

3) Haul-off machine and cutter can be servo control.

4) Optional equipment automatic weighing measurement and thickness control system.





SPECIFICATIONS FOR PP/PPR PIPE EXTRUSION LINE
Model
Pipe spec(mm)
Extruder
Max.output
(kg/h)
Main motor power(KW)
GW63-PPR
Φ16-Φ63
GW65/33
120-200
104
GW110-PPR
Φ50-Φ110
GW65/33
150-200
146
GWG160-PPR
Φ75-Φ160
GW65/33
200-250
176





For choosing the proper machine and saving your time, please read these bellow guides carefully

1). What kinds of plastic machinery do you need ? Or what material do you want to process?

2). What capacity do you want? (kg/h )

3). What is the max and min size of the finish products .For example, the diameter of pipe(inch or mm); thickness of pipe wall(mm)

4) What is the electric device you need ? Siemens, Omron or domestic ?

5) When do you want the machine? (Times for delivery)

6) Other requirements about the machine you want.
