Szczegóły Produktu:
|
| RAW MATERIAL: | Plastic bags bottle | Voltage: | Customer Standard |
|---|---|---|---|
| OPERATION: | AUTOMATIC | Function: | Crushing, Washing, Drying And Granulating |
| Warranty: | 1year | Production Capacity: | 100-3000kg/h |
| High Light: | plastic reprocessing machine,plastic waste recycling machine |
||
pet bottle recycling/ bottle recycling washing line/ pet plastic bottle recycling machine
This series washing line is widely used to recycle waste PP woven bags, PE Plastic film,plastic bags, plastic garbage, waste plastic mulch film. We can use them to be granules which is after crushing washing and drying.This production line is high automatic operating and save labor cost and low after maintenance.This pp pe recycling machine could be displayed "L" or "U" shape according customers workshop.
Working Flow:

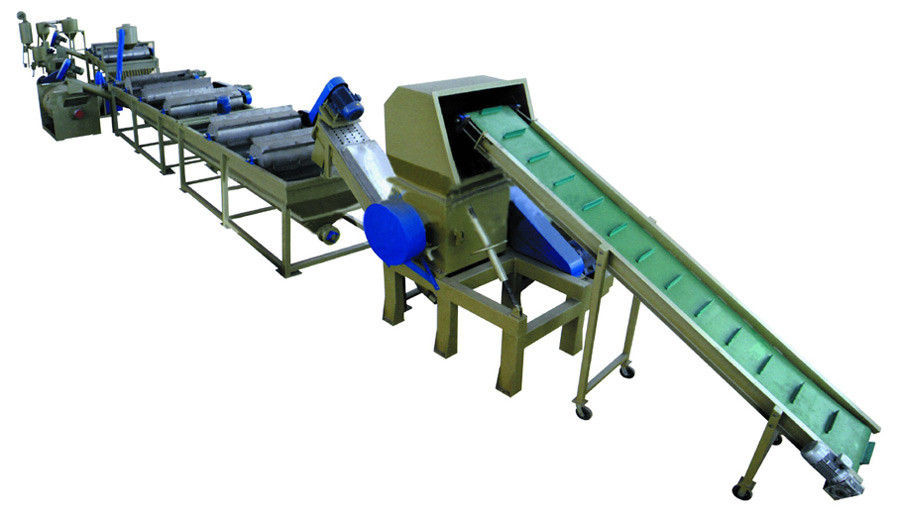

plastic crusher washing recycle machine line:
Belt conveyor →Metal detector(Optional)→ Crusher (with water) → Float washer loader→Float washing tank→Float washer loader→Float washing tank→Float washer loader→Film dewatering machine→Hot air drying system→Storage hopper→Control cabinet
Advantages:
1. Final products has good quality. When process PP PE film bags, final products humidity below 5%.
2. The whole line capacity between 150kg/h-2000kg/h (150kg/h,300kg/h,500kg/h,1000kg/h, 2000kg/h)
3. Parts which contact material use SUS304,thickness more than 3mm,ensure long service lift time
4. World famous brand components applied on the production line- SKF bearing,Siemens contactor,Omron temperature,FUJI invertor,Siemens PLC control etc
5. The whole production line with CE certification,ISO9001 certification
Technical conditions:
| Model | Capacity | Installed Power | Hot Wash | Water Supply | Man Power | Area Required: L*W*H |
| KE-300 | 300kg/hr | 120KW | Optional | 4-5m³/hr | 1-2 | 23mx5mx3.5m |
| KE-500 | 500kg/hr | 185KW | Optional | 5-6m³/hr | 1-2 | 25mx6mx5.5m |
| KE-1000 | 1000kg/hr | 270KW | Optional | 7-8m³/hr | 4-5 | 40mx6mx5.5m |
Remark: we can customize the washing line according to client's material and product requirement.
Our Services:
1. Pre-sale: we given client the details technician offer,sign the sales contract etc.
2. In-sales: we supply the details layout, installation instruction,technician support for the clients.
3. After-sales: we arrange engineer to install the machinery and training the workers for client.
4. We have 24hours team to solve the after-sale problem.
5. We supply free spare parts with the machine.
6. We always update the new technology to every customer.
