Professional Plastic Pelletizing Machine DIE FACE CUTTING 45KW Main Motor Power

Chiny Professional Plastic Pelletizing Machine DIE FACE CUTTING 45KW Main Motor Power dostawca
Professional Plastic Pelletizing Machine DIE FACE CUTTING 45KW Main Motor Power dostawca Professional Plastic Pelletizing Machine DIE FACE CUTTING 45KW Main Motor Power dostawca

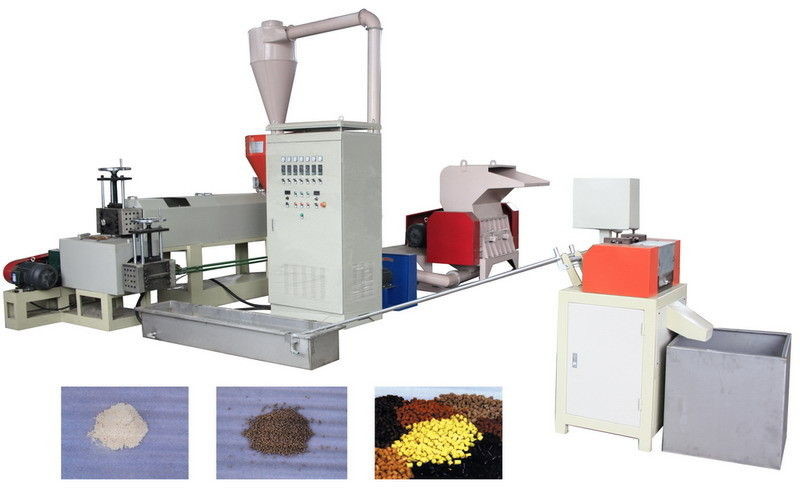

Duży Obraz :  Professional Plastic Pelletizing Machine DIE FACE CUTTING 45KW Main Motor Power

Szczegóły Produktu:

Place of Origin: ZHANGJIAGANG
Nazwa handlowa: LB
Orzecznictwo: CE, ISO
Model Number: LB

Zapłata:

Minimum Order Quantity: 1 SET
Cena: USD, EUR
Packaging Details: STANDARD PACKAGE
Delivery Time: 60 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 10 SETS PER MONTH
Contact Now
Szczegółowy opis produktu
Condition: New Main Motor Power: 45KW
OPERATION: FULL AUTOMATIC Model Number: SJ120EVA-A
FEEDING WSAY: BUILT-IN AGGLOMERATOR CUTTING WAY: DIE FACE CUTTING

plastic film granulator machine/ PP PE film recycling pelletizing extruder

Product Description


This granule line is specialized for making EVA granules. When with the same specification kneader and mixing mill, they form a complete assembly line, which consists of plasticizing, extrusion, granulizing, cooling, filtration and packing. We have make some special designs to avoid EVA changing to forming.

The whole production line:

Kneader - Bucket Conveyer - Mixing Roller - Extruder mainframe - Auxiliary Cutter - Whirlwind Cooler(1st Process) - Cooling Conveyer - Whirlwind Cooler(2nd Process) - Mixing machine(blender) - Final products.



Technical Parameter

SJΦ120 EVA Air Cooling Granule Line
No.
Item
Description
Specification
1
Kneader(optional)
Model
X(S)N-55L


Capacity
55L


Actuating motor power
75kw
2
Bucket conveyer for EVA
Material
Stainless


Motor Power
1.5kw


Bucket dimension
700*600*300mm
3
Mixing roller(optional)
Model
XK-400


Diameter of roller
400mm


Main motor power
45kw
4
Main extruder
Screw dia
Φ120mm


Screw Speed
0-50r/min


Main motor power
45kw (all with inverter)


Feeder motor power
4kw (all with inverter)


Cutter motor power
2.2kw


Heat power
10kw


Gear box
oil bath lubrication,hardened gear reducer


Cutting system
air cooling


Auto thermo control
5 zones


Screw/barrel material
38CrMoAIA


Barrel cooling system
water cooling


Granule diameter
3-5mm


Overall dimension (L*W*H)
4250*1850*1700mm


Weight
2400kg
5
Whirlwind cooler
a. Cooling tank diameter
Φ650*1set


b. Cooling tank diameter
Φ850*2sets
6
Cooling conveyer
Length and width
4200*610mm


Thermal Design Power
4.5kw


Material
Stainless
7
Blender
Capacity
1000L


Spindle speed
10r/min


Motor power
11-4kw
8
Air machine
Motor power
3.0kw


Screw speed
2880r/min
9
Air machine
Motor power
4.0kw


Screw speed
2880r/min







Professional Plastic Pelletizing Machine DIE FACE CUTTING 45KW Main Motor Power
