Single Screw Pvc Extruder Machine 5 - 1500kg/H Outputs 25 - 150mm Screw Diameter

Chiny Single Screw Pvc Extruder Machine 5 - 1500kg/H Outputs 25 - 150mm Screw Diameter dostawca
Single Screw Pvc Extruder Machine 5 - 1500kg/H Outputs 25 - 150mm Screw Diameter dostawca Single Screw Pvc Extruder Machine 5 - 1500kg/H Outputs 25 - 150mm Screw Diameter dostawca

Duży Obraz :  Single Screw Pvc Extruder Machine 5 - 1500kg/H Outputs 25 - 150mm Screw Diameter

Szczegóły Produktu:

Place of Origin: ZHANGJIAGANG
Nazwa handlowa: LB
Orzecznictwo: CE ISO
Model Number: LB

Zapłata:

Minimum Order Quantity: 1 SET
Cena: USD EUR
Packaging Details: NORMAL PACKAGE
Delivery Time: 15 SETS PER MONTH
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH
Contact Now
Szczegółowy opis produktu
Outputs: 5 to 1500 kg/h Product Range: Screw diameters 25 to 150 mm
Model: SJ Condition: New
Screw Design: single Automatic Grade: Automatic



single screw double die film extrusion machinery,conical twin screw extruders



COMPONENTS AND FEATURES:



Single screw extruder is professional equipment to extrude the material of polyolefin. Equipped with different die head, downstream equipment, it can be applied for manufacturing of polyolefin pipe, panel, sheet, film, yarn and pelletizing, etc..

The Single Screw EXTRUDER is designed for the PE and PP pipe applications. We target to provide the optimal solutions for the customer’s special needs with the advantage of flexibility in material choices, high performance and long durability.

It consists of following items:

  • Driving motor: equipped with famous brand motor as driving source.
  • Gearbox: equipped with famous brand gearbox to ensure the maximum output of power

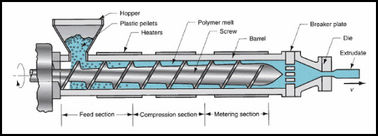

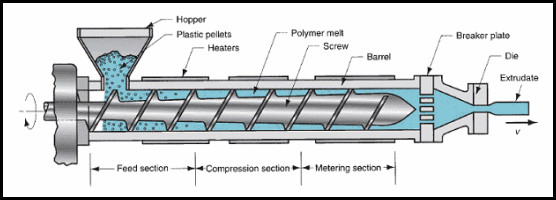

  • Screw & barrel: both the screw and barrel adapted the designing of combined of independent teeth and mixing components together for screw and the feeding groove and longer feeding section together for barrel to get the optimizing plasticizing and capacity.
  • Control system: equipped with famous brand electrical components ensure to get the accurate control

Features:



High flexibility in raw material combinations

Gentle and homogeneous plastification

Different screw geometries for customer’s special needs

Barrel with air cooling system

AC motors for low energy consumption

Control panel with color touch screen as optional

Product Range:

Screw diameters from to 25 to 150 mm

L/D ratios from 25:1 to 36:1

Outputs from 5 to 1500 kg/h



SPECIFICATIONS:





Model

Screw diameter

(mm)

L/D

Rotary speed

(rpm)

Motor power

(kw)

Capacity

(kg/hr)

SJ25/25 25 25:1 25-130 1.5 AC 1-3
SJ30/25 30 25:1 25-150 5.5 AC 2-8
SJ45/30/33 45 30:1,33:1 8-100 7.5 /15 AC 4-50
SJ65/30/33 65 30:1,33:1 12-150 37/55 AC 50-120/50-250
SJ75/30/33 75 33:1 12-120 90 DC 50-350
SJ90/30/33 90 33:1 10-120 90/160 DC 100-320/100-550
SJ120/30/33 120 33:1 9-90 160/250 DC 200-500/200-800
SJ150/30/33 150 33:1 7-75 250/315 DC 300-800/500-1200
