SJSZ51 Conical Twin Screw Extruder Machine Schneider High Plasitify
Szczegóły produktu
| Wymiar: | 4235*1520*2450 | Główna część elektryczna: | a Schneidera |
|---|---|---|---|
| Numer modelu: | SJSZ51/105 65/1132 80/156 | Stan: | Nowy |
| Konstrukcja śruby: | śruba bliźniacza | Falownik: | WĄTEK |
| Podkreślić |
double screw extruder machine,plastic extrusion machine |
||
Opis produktu

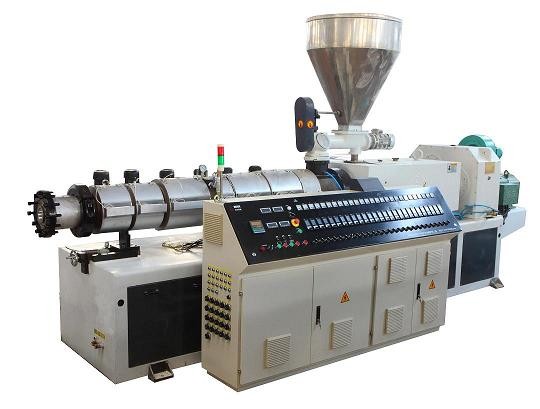

SJSZ51 conical twin screw extruder,plastic extrusion machine for PVC pipe/profile/panel
conical twin screw extruder for pvc pipe/profile/panel
1. CE&ISO certification
2. high plasitify with low consumpt
3. Turn-key project
Features Specifications:
1. Model sjsz double screw extruder is a kind of special equipment for extruding WPC/ PVC compound. With different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, bar material and granulation.
2. The conical twin screws have applied oil cooling system. Barrel is cooled by special wind cooling system.
3. The conical twin screw extruder system has applied special computer control. According to customers requirements, most reasonable structure of conical twin screw can be made so as to achieve best plasticity performance and material quality.
4. The conical twin screw is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.
5. The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged. It can bear larger extruding pressure.
6. The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1degree.
| Model number | Screw diameter (mm) | Rotational speed of screw (rpm) | Effective work length (mm) | Main motor power (kw) | Heating power of Barrel (kw) | Production capacity (kg/h) | Central height of machine (mm) | Net weight | Overall size (mm) |
| SJSZ45 | 45/90 | 1-45 | 1070 | 15 | 9.6 | 70 | 1000 | 2800 | 3300*1200*2000 |
| SJSZ51 | 51/105 | 1-45.5 | 1100 | 22 | 11.5 | 80 | 1000 | 3000 | 3360*1290*2100 |
| SJSZ55 | 55/110 | 1-40 | 1200 | 22 | 18 | 150 | 1000 | 3500 | 3620*1350*2200 |
| SJSZ65 | 65/132 | 1-38 | 1440 | 37 | 24 | 250 | 1000 | 4000 | 4235*1520*2450 |
| SJSZ80 | 80/156 | 1-36.9 | 1800 | 55 | 36 | 360 | 1000 | 5000 | 4750*1550*2460 |
| SJSZ92 | 92/188 | 1-34.7 | 2500 | 110 | 88 | 1000 | 1000 | 5500 | 6000*1600*2500 |
Najważniejsze cechy produktu
SJSZ51 conical twin screw extruder,plastic extrusion machine for PVC pipe/profile/panel conical twin screw extruder for pvc pipe/profile/panel 1. CE&ISO certification 2. high plasitify with low consumpt 3. Turn-key project Features Specifications: 1. Model sjsz double screw extruder is a kind of ...

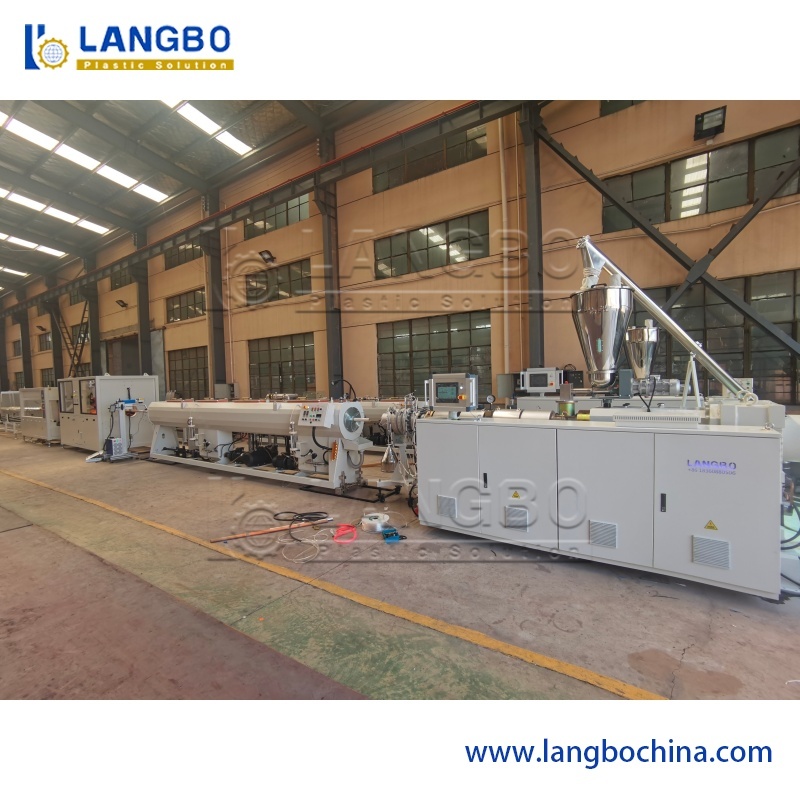

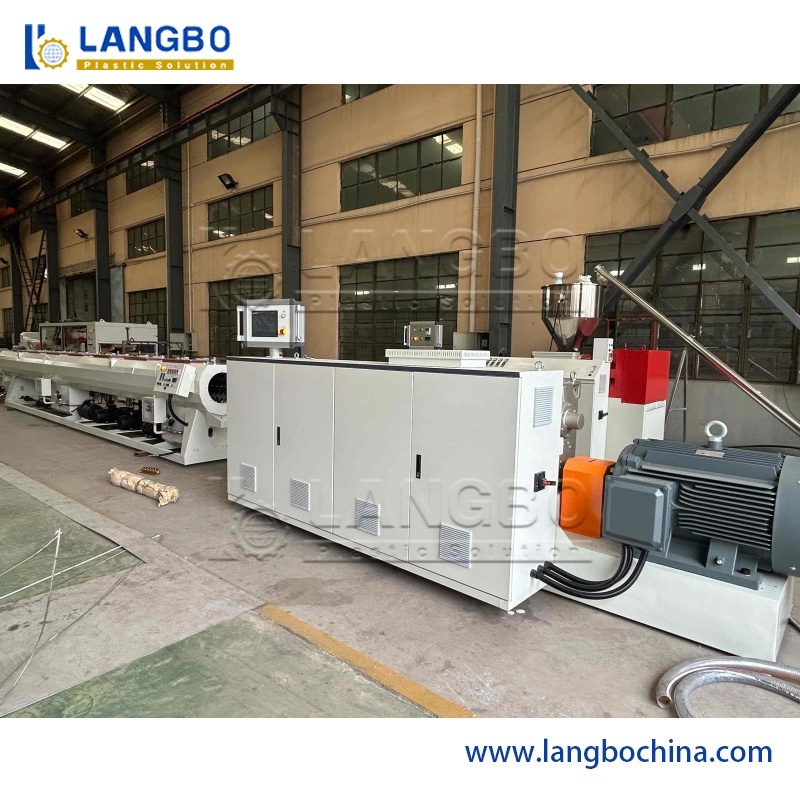

75-250mm PVC Rurociąg Elektryczny Przewodów Wodowych Woda Maszyna do produkcji
75-250mm PVC Pipe Electrical Conduit Water Supply Making Machine This complete PVC pipe production line manufactures high-quality PVC/UPVC pipes ranging from 16mm to 800mm in diameter. The system is engineered for producing electrical conduit pipes, water supply pipes, and construction plumbing pipes with various diameters and wall thickness specifications. Applications The manufactured UPVC pipes serve multiple applications including electrical conduit systems, water supply
50-250MM maszyna do produkcji rur HDPE jednowiercowa pełnoautomatyczna linia wytłaczania rur PE
50-250MM HDPE Pipe Making Machine Extrusion Production Line Product Overview The HDPE pipes with large diameter are typically applied for fuel gas and water supply systems. These pipes feature excellent characteristics including heat resistance, aging resistance, high mechanical strength, environmental stress crack resistance, and good creep resistance. They serve as preferred conduits for ductwork systems and water supply networks between cities and suburbs. PE Pipe
Gas Water PE Pipe Extrusion Line Single Outlet 4 - 9m / Min Capacity
PE Pipe Extrusion Line HDPE gas water pipe machine, PE gas pipe extrusion line Specially-designed spiral moulds for PE pipes, with inside oil controlling temperature system. plastic machine Extruder adopts big L/D and multi mixing structure, which is more suitable for the PE low temperature extrusion production. PE PIPE PROCUTION LINE MAIN COMPONENTS: No Equipment Quantity 1 Vacuum loader and hopper dryer 1set 2 Single screw extruder 1set 3 Die-head 1set 4 color line

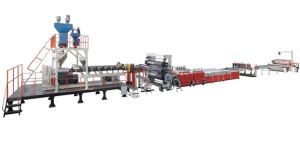

Decoration PVC Foam Board Extrusion Line 45 / 90mm Double Screw Diameter
