Energy Saving Plastic Pipe Extrusion Line , New Condition Twin Screw Extruders

Energy Saving Plastic Pipe Extrusion Line , New Condition Twin Screw Extruders
Energy Saving Plastic Pipe Extrusion Line , New Condition Twin Screw Extruders Energy Saving Plastic Pipe Extrusion Line , New Condition Twin Screw Extruders

Duży Obraz :  Energy Saving Plastic Pipe Extrusion Line , New Condition Twin Screw Extruders

Szczegóły Produktu:
Place of Origin: ZHANGJIAGANG
Nazwa handlowa: LB
Orzecznictwo: CE ISO
Model Number: LB
Zapłata:
Minimum Order Quantity: 1 SET
Cena: USD EUR
Packaging Details: NORMAL PACKAGE
Delivery Time: 15 SETS PER MONTH
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH

Energy Saving Plastic Pipe Extrusion Line , New Condition Twin Screw Extruders

Opis
Power Source: 380v 50hz Main electrical part: Siemens Schneider
Model Number: SJSZ Condition: New
Screw Design: Twin Screw inverter: ABB
High Light:

double screw extruder machine

,

plastic extrusion machine

PVC Plastic Double Pipe Extrusion Production Line with Conical Twin Screw Extruder



Process flow



PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → discharging rack



The System configuration of PVC Double Pipe Extrusion Production Line



(a) Feeding machine

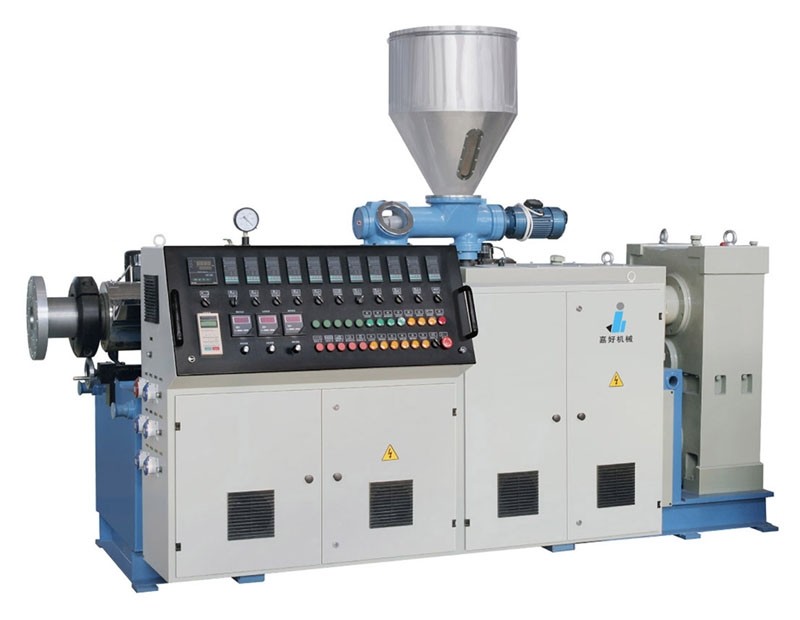

(b) Conical double-screw extruder

(c) Mould

(d) Vacuum Calibrating tank

(e) Hauling off machine

(f) Printing machine

(g) Pipe cutting machine

(h) Pipe pile-up frame

(i) Auxiliary machine such as feeding, belling and crushing machine.





Technical parameter



Model number PVC-16/63 PVC-20/110 PVC-50/160 PVC-75/250 PVC-110/315 PVC-200/450 PVC-315/630 PVC-500/800
Pipe diameter 16-63mm 20-110mm 50-160mm 75-250mm 110-315mm 200-450mm 315-630mm 500-800mm
Max output 120kg/h 120kg/h 180kg/h 300kg/h 450kg/h 650kg/h 800kg/h 1400kg/h
Production rate 1.5-15m/min 0.8-8m/min 0.5-5m/min 0.4-4m/min 0.3-2m/min 0.1-1m/min 0.07-0.7m/min 0.05-1 m/min
Extruder model SJZ-50/105 SJZ-50/105 SJZ-55/110 SJZ-65/132 SJZ-80/156 SJZ-92/188 SJZ-92/188 SJZ-105/220
Installed power 45kw 45kw 55kw 75kw 105kw 160kw 205kw 305kw
Center height 1000mm 1000mm 1000mm 1000mm 1100mm 1100mm 1200mm 1350mm
Installation area 22*2.5*2.0m 24*2.8*2.0m 24*2.8*2.0m 30*2.8*2.2m 35*3.0*2.4 m 36*3.0*2.4 m 38*3.2*2.8 m 42*3.5*3.2 m



Main Applications



1. Water supply and drainage pipelines in building;

2. Rainwater drainage pipelines in building;

3. Electrical wiring pipe in building;

4. Air conditioning condensate water systems.
