Foam Board Single Screw Extruder Machine Full Automatic Control New Condition

Chiny Foam Board Single Screw Extruder Machine Full Automatic Control New Condition dostawca
Foam Board Single Screw Extruder Machine Full Automatic Control New Condition dostawca Foam Board Single Screw Extruder Machine Full Automatic Control New Condition dostawca

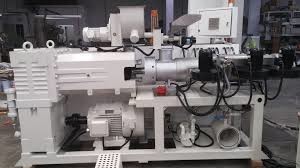

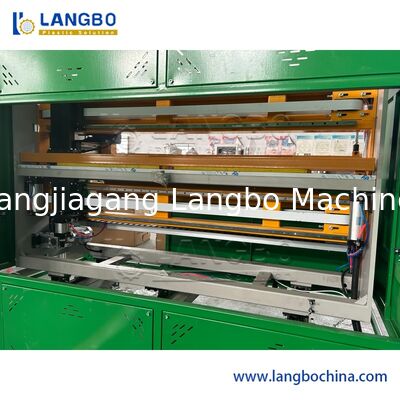

Duży Obraz :  Foam Board Single Screw Extruder Machine Full Automatic Control New Condition

Szczegóły Produktu:

Place of Origin: ZHANGJIAGANG
Nazwa handlowa: LB
Orzecznictwo: CE ISO
Model Number: LB

Zapłata:

Minimum Order Quantity: 1 SET
Cena: USD EUR
Packaging Details: NORMAL PACKAGE
Delivery Time: 15 SETS PER MONTH
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH
Contact Now
Szczegółowy opis produktu
Model Number: LB-75/150 Processing Type: Extruding/Extruded Machine
Model: SFBZ-75/150 Condition: New
Screw Design: single Automatic Grade: Automatic

Single Screw Extruder SFBZ - 75 / 150 XPS Foam Board Machine



Product Description



XPS foam plate production line is one of our new hi-tech products. XPS foamed board is one kind of good insulating materials with continuous even surface and beehive structure. It has superior advantages of good heat preservation, heat insulation, water-proof and high compression resistance. XPS board has been widely used in the fields of heating-preservation and insulation for roof and out-wall, low temperature storage facilities, surface and undersurface of roads. As an ideal insulating and damp-proof material, it has wide market prospect.



Main technical parameter: DEYILI Extruder: XPS Foam Board Machine



1) Used PS material to extrude the foamed board for insulation construction field,

2) Outlook complete and unify, SIEMENS PLC digital control,

3) The die mould accuracy, the runner more reasonable,

4) The recirculating water tank of cast aluminum cooling system,

5) Large output with stable working performance,

6) The self-contained auxiliary machines for your different production plan.

7) DEYILI standard color and special design with machine structure and electrical lines displacement, etc.



Model

Screw diameter

and L/D ratio

Board Capacity Power
    Width/mm Thickness/mm Density
SFBZ-100/120

Single screw 100-32D

Single screw 120-42D

600 20-70 32kg/m3 180m3/d 180kw
SFBZ-135/150

Single screw 135-32D

Single screw 150-42D

600/900/1200 20-120/80/60 30kg/m3 350m3/d 260kw
SFBZ-75/150

Twin screw 75-40D

Single screw 150-42D

600/900/1200 20-120/80/60 30kg/m3 360m3/d 280kw
SFBZ-165/200

Single screw 165-28D

Single screw 200-30D

600/900/1200 20-150/90/80 28kg/m3 390m3/d 490kw
SFBZ-170/200

Single screw 170-30D

Single screw 200-34D

600/900/1200 20-150/150/80 28kg/m3 450m3/d 520kw



Packaging & Shipping

Packaging Standard sea-worthy package mainly with wooden pallet and film coverage for the main machine body; wooden cases for electrical parts & consumable parts. In 3 40' containers.





Our Services

1 Customize Design: Special design for every customer’s actual needs
2 Guarantee of quality: One year guarantee of quality for line under correct operation.
3

Documents supply: Mechanical and electrical operation manual, Electrical connection

drawing(1)and Operation technique manual(1).

4 After-sales service provided: Engineers team available to service machine overseas.
5 Machine maintenance: Machine lifelong maintenance while troublesome happens.
6

Upgrade: Free production software upgrading production formula, process technology and

machine structure improves, etc.





Single Screw Extruder: XPS Foam Board Machine
