Szczegóły Produktu:
|
| Model Number: | LB | Plastic Processed: | PP |
|---|---|---|---|
| Model: | SJ single screw extruder | Condition: | New |
| Screw Design: | single | Automatic Grade: | Automatic |
| High Light: | single screw extruder machine,plastic recycling extruder machine |
||

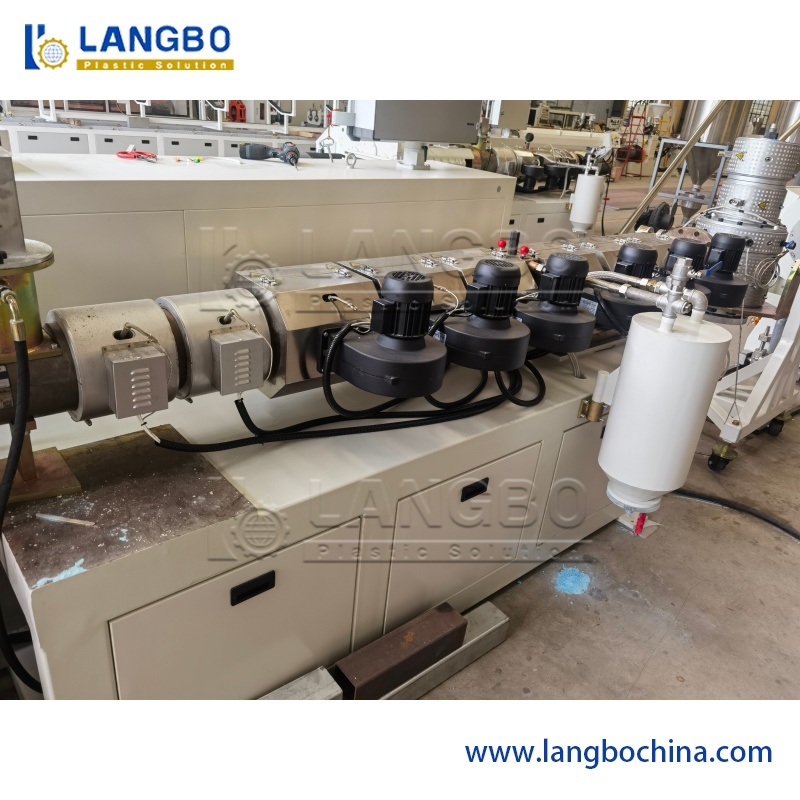

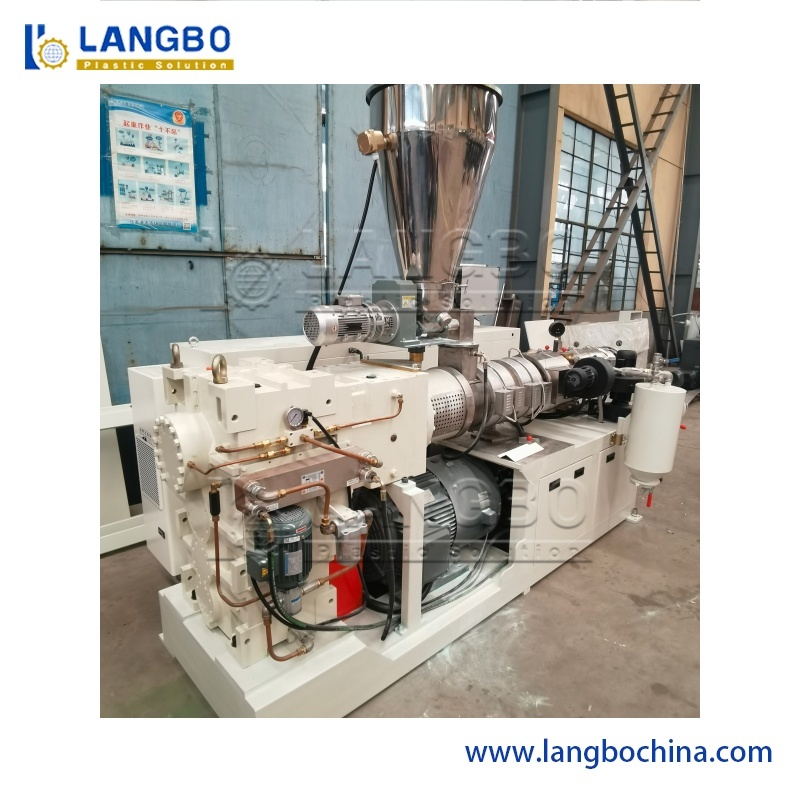

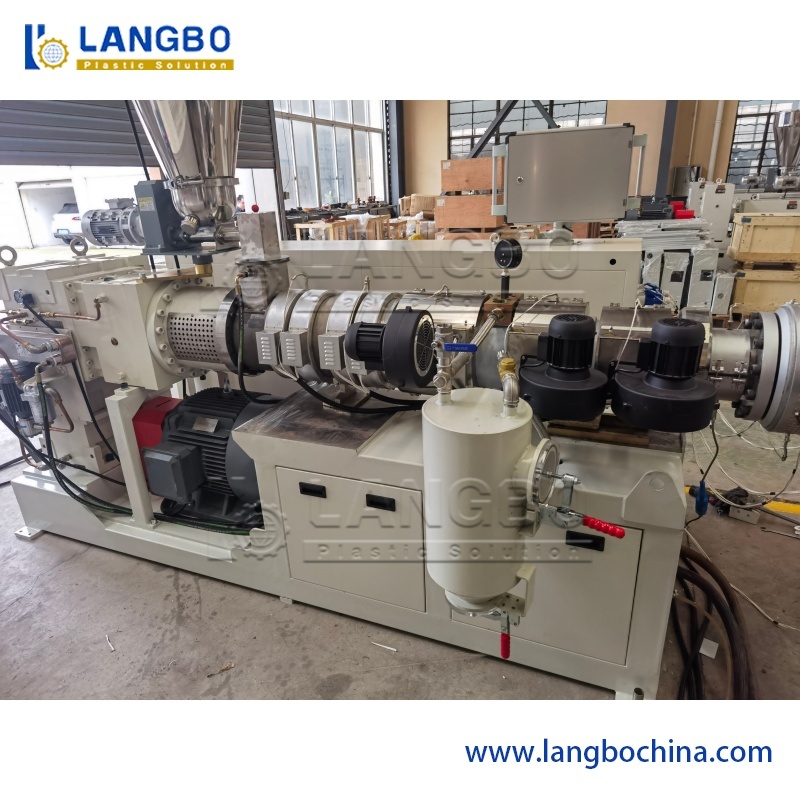

Automatic Plastic Single Screw Extruder
single screw extruder
screw diameter:15-200mm
high output
automatic,CE
The high speed of output,high quality.
The designof low temperature plasticization, ensure the high quality products of extrusion.
The special mixing barrier, integrated design, to ensure the effect of mixing material.
The high torque output, large thrust bearing.
The gear, shaft for high strength alloy steel, carburizing, grinding processing.
The high hardness, high smoothness, low noise.
Easy to understand processing and machine status.
The material is the 38CrMoAL/A after nitriding treatment, wear resistance.
The strict temperature control precision, wind cooling and water cooling unite.
The design of inlet is unique, has a perfect water-cooling system.
It's widely used for extruding thermo-plastics such as soft and hard polyvinyl chorid(PVC) and PE.Coordinated with the appropriate auxiliary machine,(including the head of former),it can produce many kinds of plastic products such as film ,pipe,plate,braid,belt.It can also be used in pelleting.
This machine is advanced in design,high in output,good in plasticization and low in energy consumption.The involute gear driving is characterized by low noise,stable in working ,big bearing capacity and long service life.DM screw can made by client's desire.
Automatic plastic extruder, single screw extruder, single extruder, pp pipe extruder, plastic granule machine, extruders
SJ single screw extruder main techinacal parameter:
| modle | (L/D) | speed(r/min) | drive power(kw) | output(PE)(kg/h) | center height(mm) |
| SJ-25 | 25/1 | 20-120 | 2.2 | 5 | 1000 |
| SJ-30 | 25/1 | 20-180 | 5.5 | 10 | 1000 |
| SJ-45 | 25-33/1 | 20-150 | 7.5-22 | 50-150 | 1000 |
| SJ-65 | 25-33/1 | 20-150 | 22-90 | 60-250 | 1000 |
| SJ-75 | 25-33/1 | 20-150 | 55-110 | 200-350 | 1100 |
| SJ-90 | 25-33/1 | 20-110 | 37-185 | 180-550 | 1000-1100 |
| SJ-120 | 25-33/1 | 20-90 | 75-280 | 320-800 | 1000-1250 |
| SJ-150 | 25-33/1 | 20-75 | 90-355 | 400-1200 | 1000-1300 |
We have more than 10 years's manufacturing experience in plastic machinery field,we will offer every customer from all over the world the best machinery with competitive market price.
