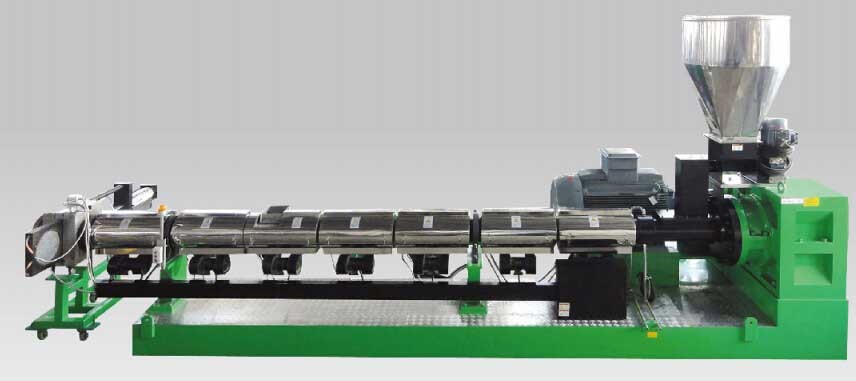

HDPE Pipe Single Screw Extruder 20mm - 63mm Pipe Diameter 55 - 280KW Power

Orzecznictwo
dobra jakość Linia do wytłaczania rur PE na sprzedaż
dobra jakość Linia do wytłaczania rur PE na sprzedaż
Im Online Czat teraz

HDPE Pipe Single Screw Extruder 20mm - 63mm Pipe Diameter 55 - 280KW Power

Chiny HDPE Pipe Single Screw Extruder 20mm - 63mm Pipe Diameter 55 - 280KW Power dostawca

Duży Obraz :  HDPE Pipe Single Screw Extruder 20mm - 63mm Pipe Diameter 55 - 280KW Power

Szczegóły Produktu:

Place of Origin: ZHANGJIAGANG
Nazwa handlowa: LB
Orzecznictwo: CE ISO
Model Number: LB

Zapłata:

Minimum Order Quantity: 1 SET
Cena: USD EUR
Packaging Details: NORMAL PACKAGE
Delivery Time: 15 SETS PER MONTH
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH
Contact Now
Szczegółowy opis produktu
Power(W): 55-280KW motor: SIMENS
Model: single screw extruder Condition: New
Screw Design: single Automatic Grade: Automatic

20mm-63mm hdpe pipe single screw extruder extruder with whole line



Process:



material Hopper Dryer and Auto charger → PE pipe extruder → marking line extruder → mould → calibrator → vacuum calibration tank → spray cooling water tank → printer → haul-off → cutter → pipe discharging rack



Description:



This PE pipe extrusion line can be used in HDPE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, it is a preferred gas and water pipe for ductwork system between city and its suburb, Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.



Technical Data:



Model Screw diameter
mm)
L/D Pipe range
mm
Machine motor power
kw
Total power
kw
line length
m
PE-63 65mm 33:1 16-63 37 80 24
PE-110 65mm 33:1 75-110 55 110 30
PE-160 75mm 33:1 90-160 90 150 32
PE-250 75mm 33:1 110-250 110 200 42
PE-315 90mm 33:1 160-315 160 240 44
PE-400 90mm 33:1 200-400 185 300 50
PE-500 120mm 33:1 250-500 280 350 56
PE-630 120mm 33:1 315-630 280 480 56
PE-800 150mm 33:1 400-800 315 550 72



Our Features:



1. Equipped with single or twin screw extruder, it can fulfill the need of processing PVC, PP, PE, ABS, PMMA et cetera.
2. 3-Dimension adjustable vacuum calibrating unit, optimized vacuun swith, flow switch, multiple choice of dies.
3. Optimized designed tooling, precise fabricated, high quality material.
4. Dynamic balance type caterpillar haul-off, frequency conversion/AC speeding, stable running, convenient operation.

5. Cutter adopts professional designed saw blade, controlled by PLC, smooth flat cut.
6. Optimized length counter and dust collector configuration.



HDPE Pipe Single Screw Extruder 20mm - 63mm Pipe Diameter 55 - 280KW Power
