Plastic HDPE PPR Pipe Extruding Making Machine /PE Pipe Extruder Production Line

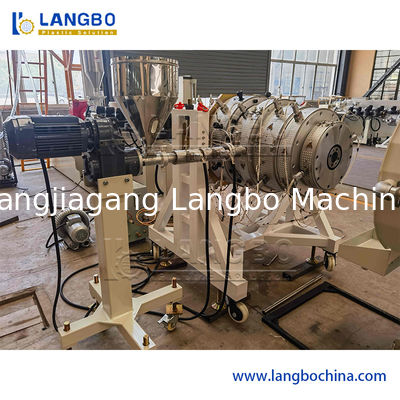

SJZ80/34 Single- screw extruder: one set

Screw dia: 80mm

Screw L/D:34:1

Screw type: special screw

Screw diameter: φ80mm,LD:34:1;Material: made of high quality nitride 38CrMoAIA,and are

nitration austerely according to NATIONAL STANDARD, nitration hardness:850-950HV;

Barrel: made of high quality nitride steel-38CrMoAI, nitration hardness:950-1050HV;

Main motor power: 110KW

Heater zone: 8 zones

Hopper dyer: one set

Automatic feeding system: one set

POM Extrusion mould:

Mould body: 1 set

Sizing sleeve: copper

φ152mm, φ177mm

Wall thickness: 12mm

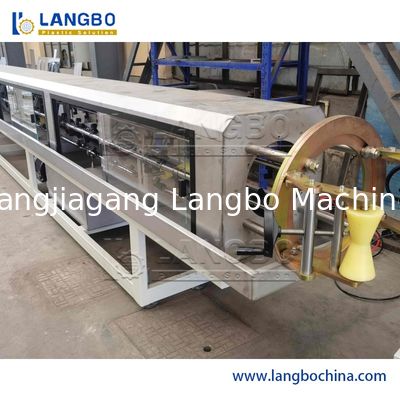

AFP-250 Vacuum Water Cooling Tank

effective vacuum length:6000mm

center height:1050mm±50mm

up and down movement distance±50mm

left and right movement distance±50mm

vacuum pump power:5.5KwX2

water pump power:4.0KwX2

forward and backward movement distance 600mm

forward and backward motor power:1.5KW

Equipped with water level and waer temperature automatic monitoring system

Water tank body adopts stainless steel

AFP-250 Water Spraying Cooling Tank

effective vacuum length:6000mm

water pump power:4.0KwX1

Water tank body adopts stainless steel

AFP-250 Four Pedrails Haul-off Machine

main motor power:4kw*2 (Inverter control for speed)

suitable pipe rangeФ50-250mm

the bottom pedrail is controlled by a motor for up & down lift, motor power: 0.75kw

the upper pedrail is controlled by pneumatic for up & down lift

AFP-250 Dustless Saw cutting machine

Cutting blade: knife cutting

Rotary motor power:2.2kW

suitable pipe range:Ф50-250mm

Cutting knife is controlled by pneumatic

AFP-250 Stacking unit

Effective length:3000mm
