Bamboo and Wood Fiber Grating Board Ecological Wood Background Wall Panels Making Machine

1 zestaw
MOQ
USD,EUR
Cena £
Bamboo and Wood Fiber Grating Board Ecological Wood Background Wall Panels Making Machine
cechy Galeria opis produktu Oceny i recenzje Poprosić o wycenę
cechy
specyfikacje
Typ wytłaczarki: 55/110 stożkowa wytłaczarka bliźniaczy
Rozmiar profilu: 1180 mm
Moc silnika: 22KW
surowiec: PVC proszek i dodatki
Off-off: Dwa niezależne utwory
Tabela kalibracji: Osiem mersów długości
Metoda pakowania: Drewniane pudełko i pakiet filmowy
Rozmiar profilu: Według rysunku klientów
Czas dostawy: W ciągu 90 dni
Podkreślić:

bamboo wood fiber grating board machine

,

ecological wood wall panel machine

,

PVC wall panel extrusion line
Podstawowe informacje
Miejsce pochodzenia: Zhangjiagang
Nazwa handlowa: LB
Orzecznictwo: CE,ISO9001
Numer modelu: LB-1180
Zapłata
Szczegóły pakowania: PAKIET STANDARDOWY
Czas dostawy: 45 DNI ROBOCZYCH
Zasady płatności: L/C, T/T
Możliwość Supply: 15 zestawów miesięcznie
opis produktu

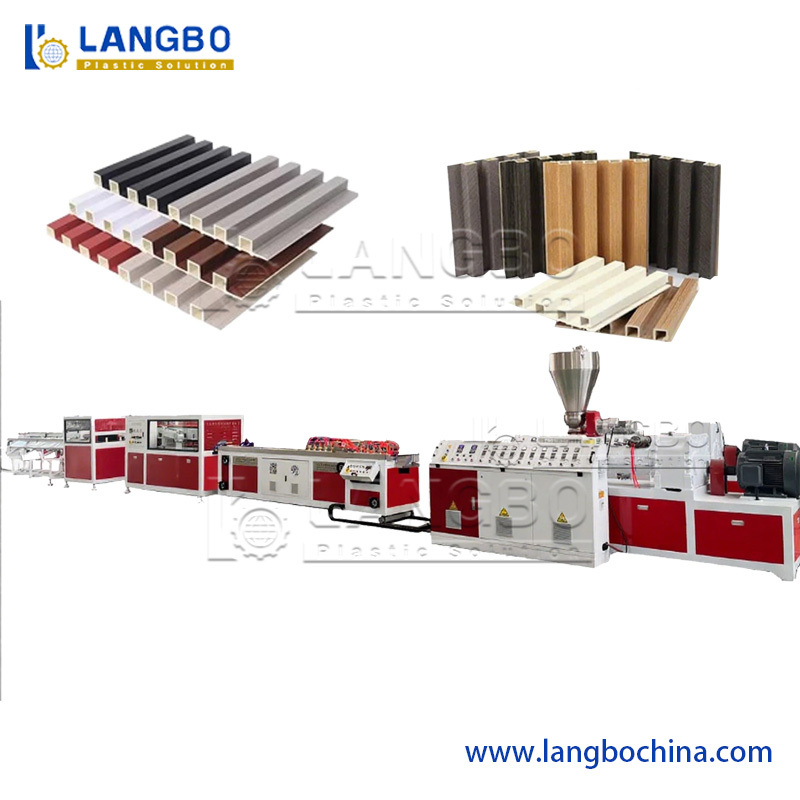

PVC Profile Extrusion Line for Bamboo Fiber Grating Panels
Complete production line for manufacturing high-quality PVC profiles including window/door profiles, ceiling panels, trunking, and waterproof bamboo fiber grating panels for decorative applications.
Production Capabilities
This PVC profile extrusion line is engineered to process various PVC formulations, delivering consistent quality for construction and decorative applications. Custom solutions and molds are developed based on specific product requirements.
Processing Workflow
  • PVC powder + additives mixing
  • Material feeding system
  • Twin screw extrusion
  • Molding and calibration
  • Vacuum forming table
  • Haul-off mechanism
  • Precision cutting
  • Automated discharge rack
Technical Specifications
Model LB180 LB240 LB300 LB600
Max Product Width (mm) 180 240 300 600
Screw Model SJ55/110 SJ65/132 SJ65/132 SJ80/156
Motor Power 22KW 37KW 37KW 55KW
Cooling Water (m³/h) 5 7 7 10
Compressor (m³/h) 0.2 0.3 0.3 0.4
Total Length (m) 18 22 22 25
Key Components & Features
Conical Twin Screw Extruder
Specifically engineered for processing dry PVC powder blends, our conical twin screw extruder ensures homogeneous mixture, superior plastification, and optimal conveying efficiency. Features permanent magnet synchronous motor for high energy efficiency and integrated PLC control system for centralized production line management.

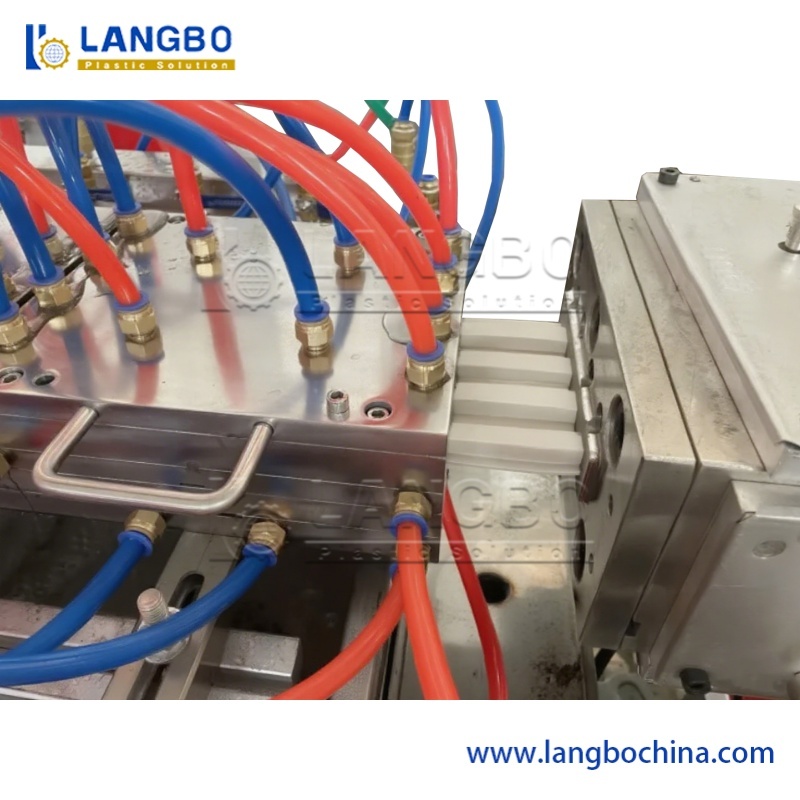

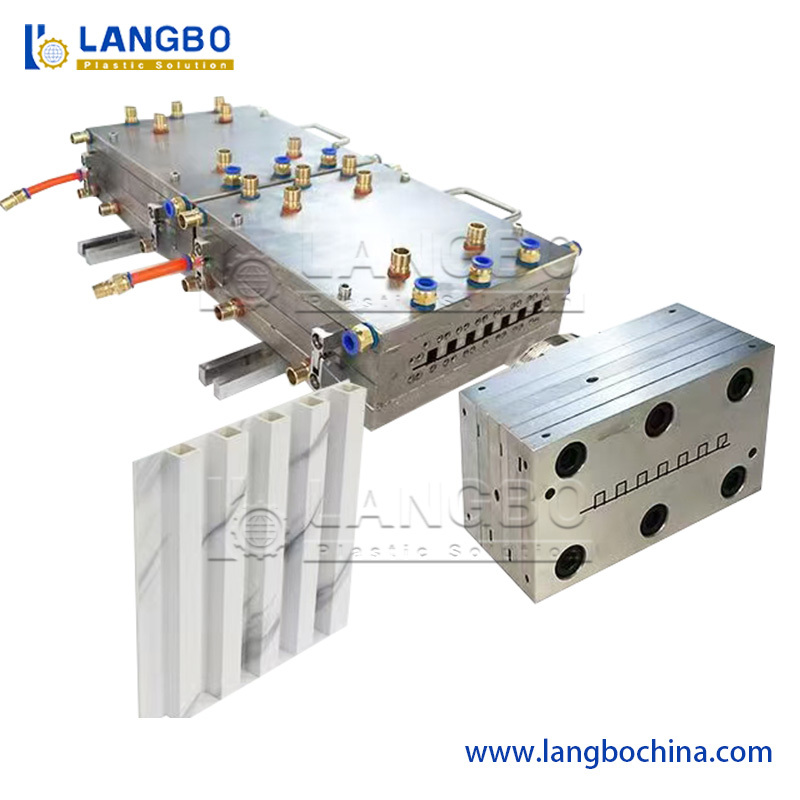

High-Precision Plate Mould
Double strand mold design significantly enhances productivity for PVC trunking production. Advanced channel optimization ensures excellent flow performance, while precision engineering delivers profiles with exceptional dimensional accuracy.

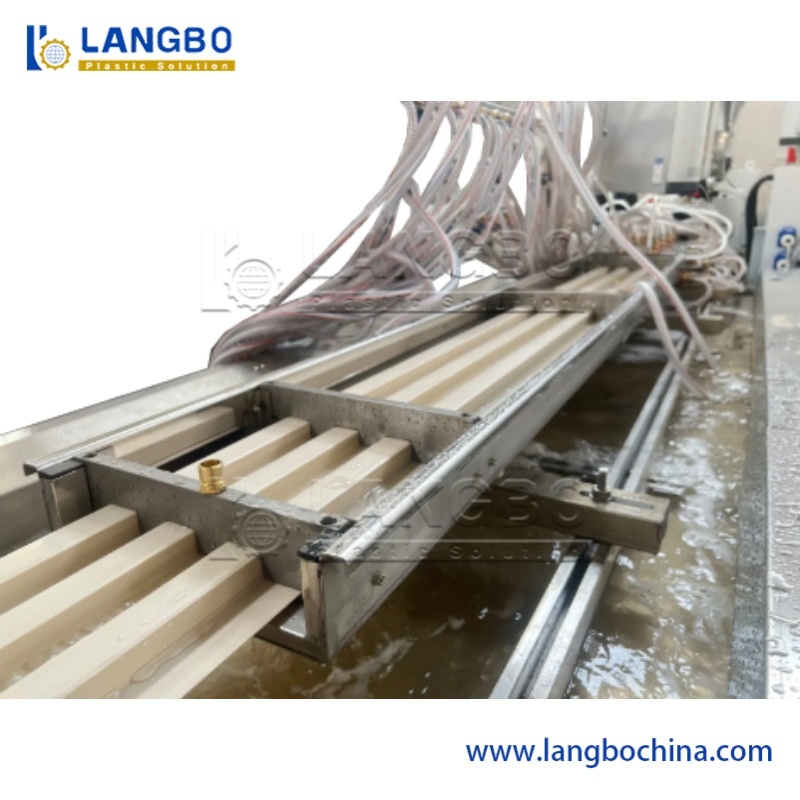

Stainless Steel Calibration Table
Constructed with stable steel framework and SUS 304 stainless steel body. Multi-dimensional position adjustment system combined with strategically placed water pumps and vacuum calibrators enables rapid shaping and cooling of PVC profiles. Extended calibration length ensures optimal product formation.

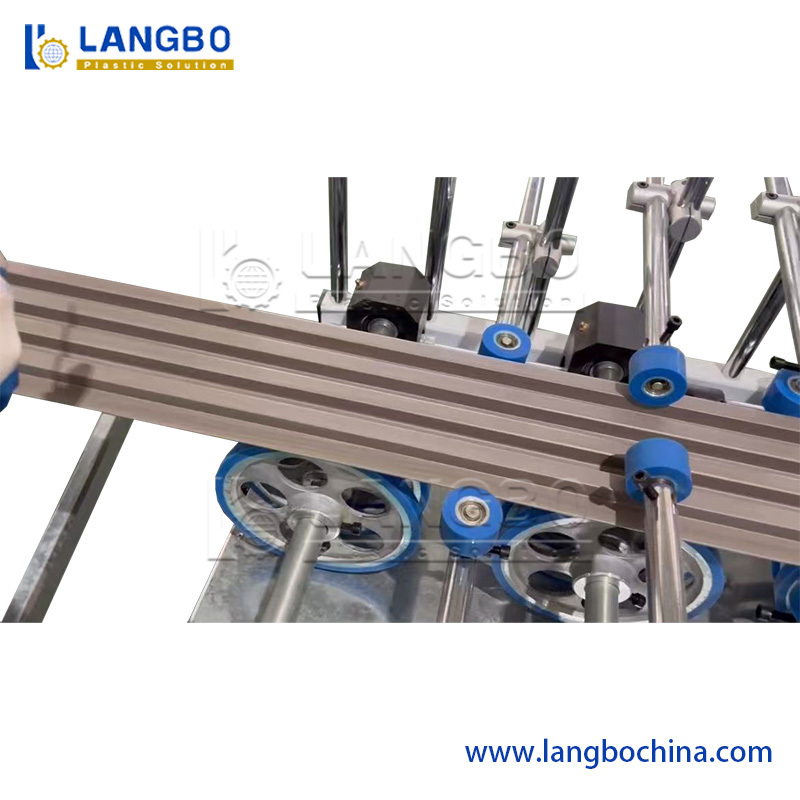

Haul-off & Cutting System
Even force distribution across crawler track tracks provides sufficient hauling capacity. High-quality rubber components ensure reliable operation. Pneumatic pressure system facilitates easy adjustment and product protection. Customizable cutting options include swarfless and saw cutting methods.
Production Line Gallery
Bamboo and Wood Fiber Grating Board Ecological Wood Background Wall Panels Making Machine 0 Bamboo and Wood Fiber Grating Board Ecological Wood Background Wall Panels Making Machine 1 Bamboo and Wood Fiber Grating Board Ecological Wood Background Wall Panels Making Machine 2 Bamboo and Wood Fiber Grating Board Ecological Wood Background Wall Panels Making Machine 3 Bamboo and Wood Fiber Grating Board Ecological Wood Background Wall Panels Making Machine 4
