Szczegóły Produktu:
|
| Outputs: | 10 to 30 kg/h | Product Range: | Screw diameters 45 and 51 mm |
|---|---|---|---|
| Model: | SJSZ | Condition: | New |
| Screw Design: | Twin Screw | Automatic Grade: | Automatic |
| High Light: | twin screw extruder machine,double screw extruder machine |
||

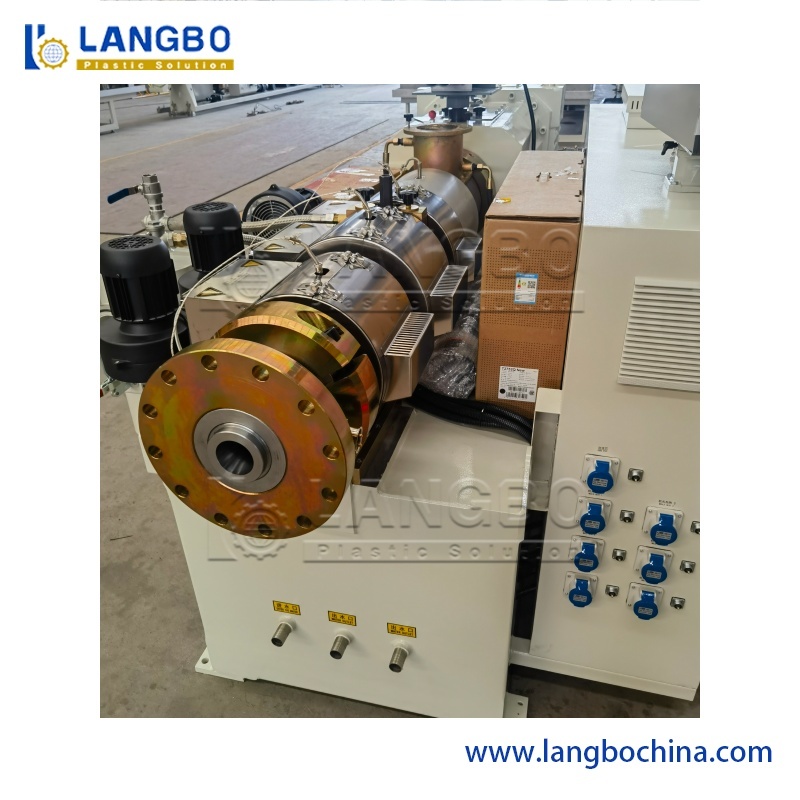

WPC Plastic Compoite Granules Conical Twin Screw Extruder Price/ ABS PLA
COMPONENTS AND FEATURES:
Conical twin screw extruder is professional equipment to extrude PVC/ composite mixture of PVC and wood/composite pellets of PP/PE and wood. Equipped with different die head, downstream equipment, it can be applied for manufacturing of pipe, profile, composite profile, panel, sheet and pelletizing, etc..
We target to provide the optimal solutions for the customer’s special needs with the advantage of flexibility in material choices, high performance and long durability.
It consists of following items:
Features
High flexibility in raw material combinations
Gentle and homogeneous plastification
Barrel with air cooling system
AC motors for low energy consumption
Control panel with color touch screen as optional
The Conical Twin Screw Extruder is applied as co-extruder for the coextruded two-layer window profiles and for the soft PVC gasket application in profile extrusion systems. The co-extruder can either be located next to the main extruder or on top of the calibration table for the optimal working condition as post-coex.
Features:
AC motors for low energy consumption
Barrel with air cooling system
Product Range:
| Screw diameters 45 and 51 mm |
Outputs from 10 to 30 kg/h
SPECIFICATIONS:
| Model |
Screw diameter (mm) |
Rotary speed (rpm) |
Motor power (kw) |
Capacity (kg/hr) |
| SJSZ45/90 | 45/90 | 45/34.7 | 15 AC | 100 |
| SJSZ51/105 | 51/105 | 45/34.7 | 18.5 AC | 150 |
| SJSZ55/110 | 55/110 | 45/34.7 | 22 AC | 200 |
| SJSZ65/132 | 65/132 | 45/34.7 | 30/37 AC | 250 |
| SJSZ80/156 | 80/156 | 34.7/25 | 55 AC | 350 |
| SJSZ92/188 | 92/188 | 34.7/25 | 110 DC | 800 |
| SJSZ105/216 | 105/216 | 34.7/25 | 160 DC | 1100 |
