Szczegóły Produktu:
|
| Plastic Processed: | PVC | power source: | 380v 50hz |
|---|---|---|---|
| Model: | SJSZ | Condition: | New |
| Screw Design: | Twin Screw | Automatic Grade: | Automatic |
| High Light: | twin screw extruder machine,plastic extrusion machine |
||

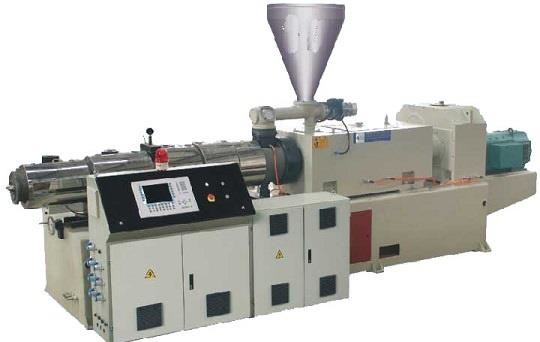

PVC pipe conical twin screw extruder/plastic pipe extruder equipment/double screw extrusion machine
Descrition:
1. Frequency conversion timing.
2. Hard-toothed Gearbox.

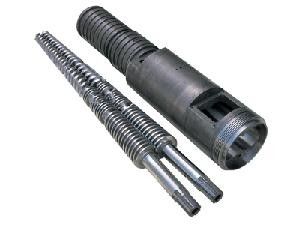

3. Material of the screw and barrel is 38CrMoAlA, nitrogentreatment, screw is
designed especially for rigid PVC profile.
4. Screw adopts frequency conversion timing, 22 kW, Inverter is brand of Fuji.
5. Cast-aluminum heating coil, barrel is fan cooling.
6. Vacuum degassing designed, vacuum pump is 1.5 kW.
7. Fixed quantity feeding device, 0.55 kW motor, frequency conversion timing,
0.55 kW inverter, brand of Fuji.
8. Stainless hopper, side glass, with cover.

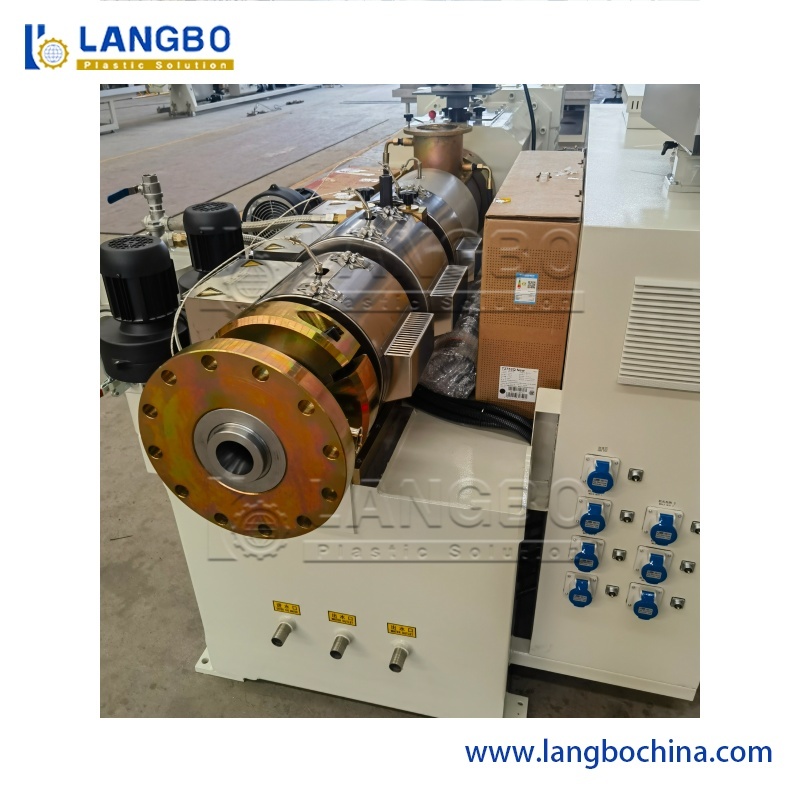

9. Concourse chip(inside is chrome plating ) is equipped on the extruder head, pressure sensor device is also equipped with.
10. Electric control cabinet: Contactor is brand of Siemens, temperature controller is brand of RKC(8 pcs), inverter is brand of Fuji, current meter and voltage meter are digital display type, electrical outlet.
Applications:
This plastic extruder (conical two screw extruder, conical two-screw extruder, extruder, conical twin-screw extruder) machine is mainly used to process pp, pe, wpc, abs and other plastics.
Equipped with auxilary machines, it can manufacture profile, pipes, sheets and other plastic products and granulation.
It has the advantage of simple production technological process, high output, stable quality and low cost.
SJZ Series conical double screw plastic extruders are special equipments which are suitable for various pvc powder to extrusion and molding.
Equipped with different kinds of molds and auxiliary machines, it can produce kinds of pvc pipes, profiles, plates, bars and granulation.
Specifications:
| Item | SJZ-51/105 | SJZ-65/132 | SJZ-80/156 | SJZ-92/188 |
| Screw diameter(mm) | 51/105 | 65/132 | 80/156 | 92/188 |
| Screw amount | 2 | 2 | 2 | 2 |
| Screw turning | Different direction forth | |||
| Screw rotate speed(r/min) | 1-30 | 1-34.7 | 1-36.9 | 1-32.9 |
| Screw effective working length(mm) | 1200 | 1440 | 1800 | 2500 |
| Main motor power(kw) | 22 | 37 | 55 | 90 |
| Barrel heating power(kw) | 18 | 24 | 38 | 86.8 |
| Production capacity(kg/h) | 80-140 | 250-300 | 320-450 | 500-600 |
| Machine center height(mm) | 1000 | 1000 | 1000 | 1200 |
| Net weight(kg) | 3500 | 4000 | 5000 | 10000 |
| Exterior measure(long*wide*high) | 3620*1050*215 | 4235*1520*2450 | 4750*1550*2460 | 6725*1550*2814 |
Competitive Advantage:
1) Good performance
2) Long usage life
3) Good production stability
4) Reasonable design
5) High precision mold
6) Adopts AC frequency conversion technology
7) Uses imported electric components
8) Product characteristics: a) Good foam b) Smooth surface c) Antibacterial d) Wearable e) Antistatic f) Insulate
9) Widely used for agriculture and industry
10) Large marketing potential
