Szczegóły Produktu:
|
| Power Source: | 380v | Plastic Processed: | PVC, PE, PP |
|---|---|---|---|
| Model Number: | SJSZ | Condition: | New |
| Screw Design: | Twin Screw | Material: | :Stainess steel |
| High Light: | twin screw extruder machine,plastic extrusion machine |
||
Conical Twin Screw Extruder is a qualified product manufactured with internationally advanced technology by our company.
Construction:
Equipped with the suitable mould tools and downstream auxiliary equipment, you can directly produce plastic pipes, plates, profiles and power granulation.
Main Features(Advantage):
1. Adopt frequency and DC speed controller, Stable and low power consumption

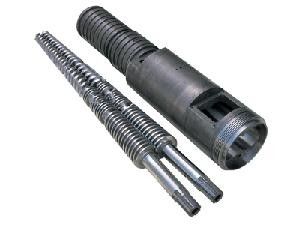

2. Adopt conical Twin-screw equipment, Efficient producing, fine plastication,low noise
3. Adopt hard tooth helical reduction gear, smoothly transmission low noise& long operating life
4. Adopt reverse oblique conical gear, strong transmission,high precision in adjusting,low recoil and fine anti-glue function
5. Adopt cast aluminum heater system and forced wind cooling system, even in heater, fine function in cooling
6. Adopt interior thermostat and exterior is cooled by circulation of heating oil
7. Adopt vacuum exhaust venting for better quality and forced feeding
8. Adopt intelligent thermoswitch and PLC to control the temperature,high precision,and easy adjusting
9. Adopt foreign or native famous electronic device(Such as Siemens, Schneider, Fujifilm, Omron, Delixi...)

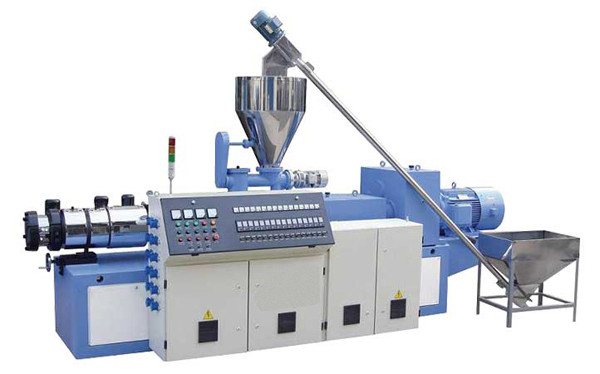

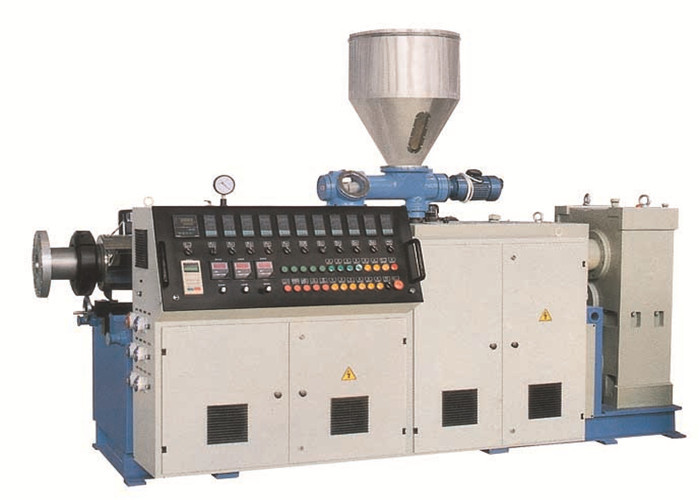

Conical Twin Screw Extruder/Conical Double Screw Extruder
| Item No | SJSZ51 | SJSZ55 | SJSZ65 | SJSZ80 | SJSZ92 | |
| Screw Diameter (mm ) | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 | |
| Screw Rotate Direction | Turing outwards with different direction | |||||
| Screw Rotate Speed (r/min ) | 1-38 | 1-30 | 1-34.7 | 1-36.9 | 1-32.9 | |
| Screw Effective Length(mm) | 1070 | 1150 | 1430 | 1800 | 2500 | |
| Main Motor Power(kw) | 18.5 | 22 | 37 | 55 | 90 | |
| Barrel Heating Power(kw) | 12.1 | 18 | 24 | 36 | 50 | |
| Capacity(kg/h) | 50-150 | 60-180 | 80-300 | 100-400 | 200-800 | |
| Central Height(mm) | 1000 | |||||
| Net weight(kg) | 3200 | 3500 | 4000 | 5000 | 10000 | |
| Meas. (L*B*H)(mm) | 3600*1320*2120 | 3620*1350*2157 | 4235*1520*2450 | 4750*1550*2460 | 6725*1550*2841 | |
Specifications
Conical twin screw extruder:
1. Diameter:45-92mm
2. Max capacity:750kg/h
3. Certificate:CE,ISO
4. Extruder model: SJZ45-92
